190-560-000 - MTD Grass Catcher (1992) Grass Catcher Parts Diagram

Grass Catcher

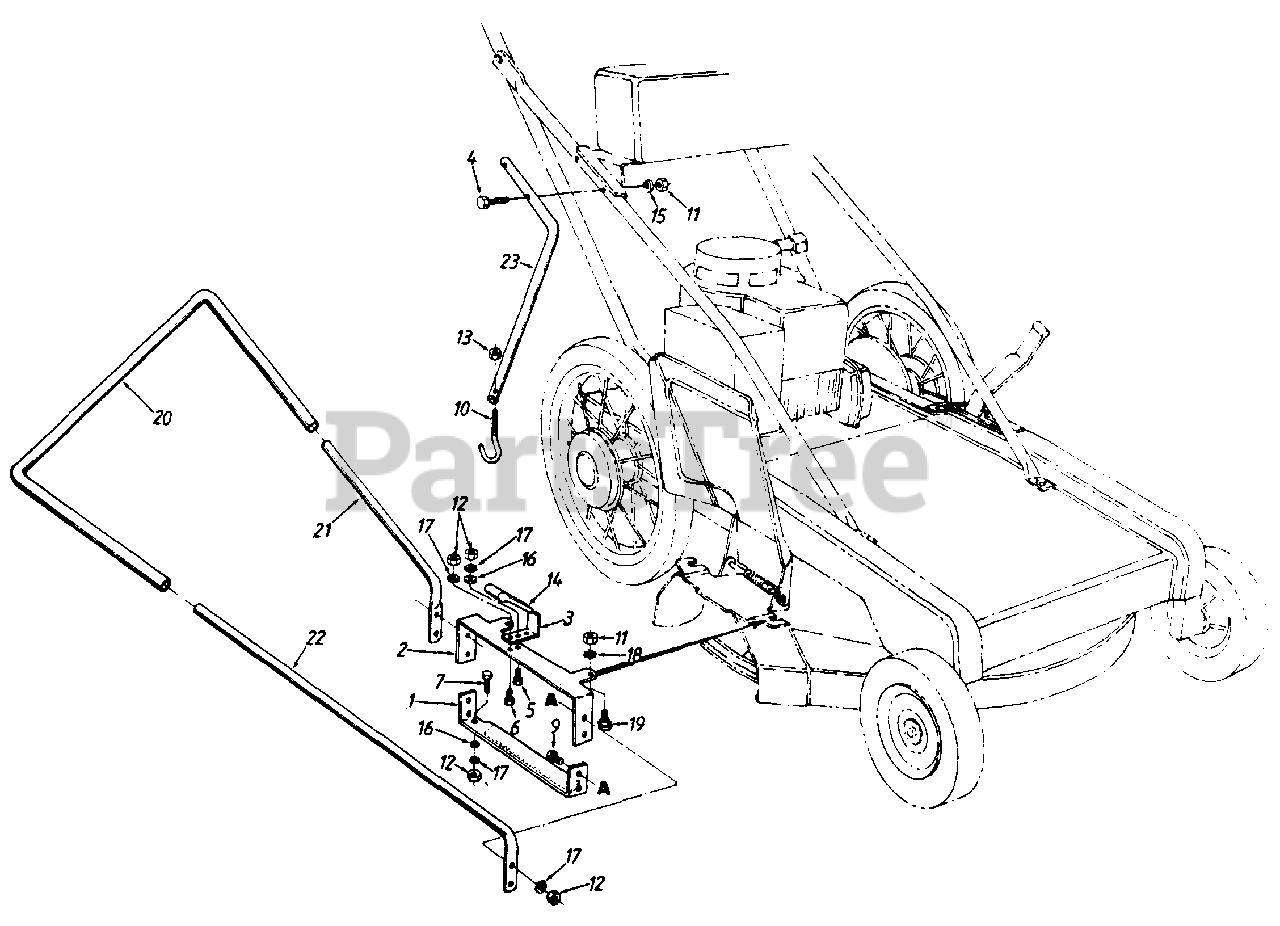

Grass Catcher Parts Diagram

  • Title

1

MTD 11702

Lower Opening Support

$

$

Not available

2

MTD 11708

Upper Opening Support

$

$

Not available

3

MTD 11707

Handle

Variations

MTD 11707-0637

Handle - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 710-4110

Hex Bolt 5/16-10 x 2" Lg.

$

$

Currently unavailable

5

MTD 710-4252

Hex Bolt 1/4-20 x .85" Lg.

$

$

Currently unavailable

6

MTD 710-4250

Hex Bolt 1/4-20 x .62" Lg.

$

$

Currently unavailable

7

MTD 710-4280

Hex Bolt 1/4-20 x .5" Lg.

$

$

Currently unavailable

?8

MTD 710-4100

Hex Bolt 1/4-20 x 1.25" Lg.

$

$

Currently unavailable

9

UNKNOWN

$

$

Not available

10

MTD 711-4570

Hook

$

$

Currently unavailable

11

MTD 712-4207

Hex Nut 5/16-18 Thd.

$

$

Currently unavailable

12

MTD 712-4207

Hex Nut 1/4-20 Thd.

$

$

Currently unavailable

13

MTD 712-4324

Hex Ins. Nut 1/4-20 Thd.

$

$

Currently unavailable

14

MTD 720-4142

Grip

$

$

Currently unavailable

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 780-4142

R-Wash..281 I.D. x .5 O.D.

$

$

Currently unavailable

17

MTD 730-4222

Ext. L-Wash. 1/4" I.D.

$

$

Currently unavailable

18

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 738-4141

Shoulder Bolt

$

$

Currently unavailable

20

MTD 740-4720

Upper Frame

$

$

Currently unavailable

21

MTD 140-4720

Lower Frame

$

$

Currently unavailable

22

MTD 740-4730

Lower Frame Arm

$

$

Currently unavailable

23

MTD 740-4781

Holding Arm

$

$

Currently unavailable

MTD 764-0241

Grace Sap

Note: (Not Shown)

$

$

Currently unavailable
