42" Snow Blade Assembly

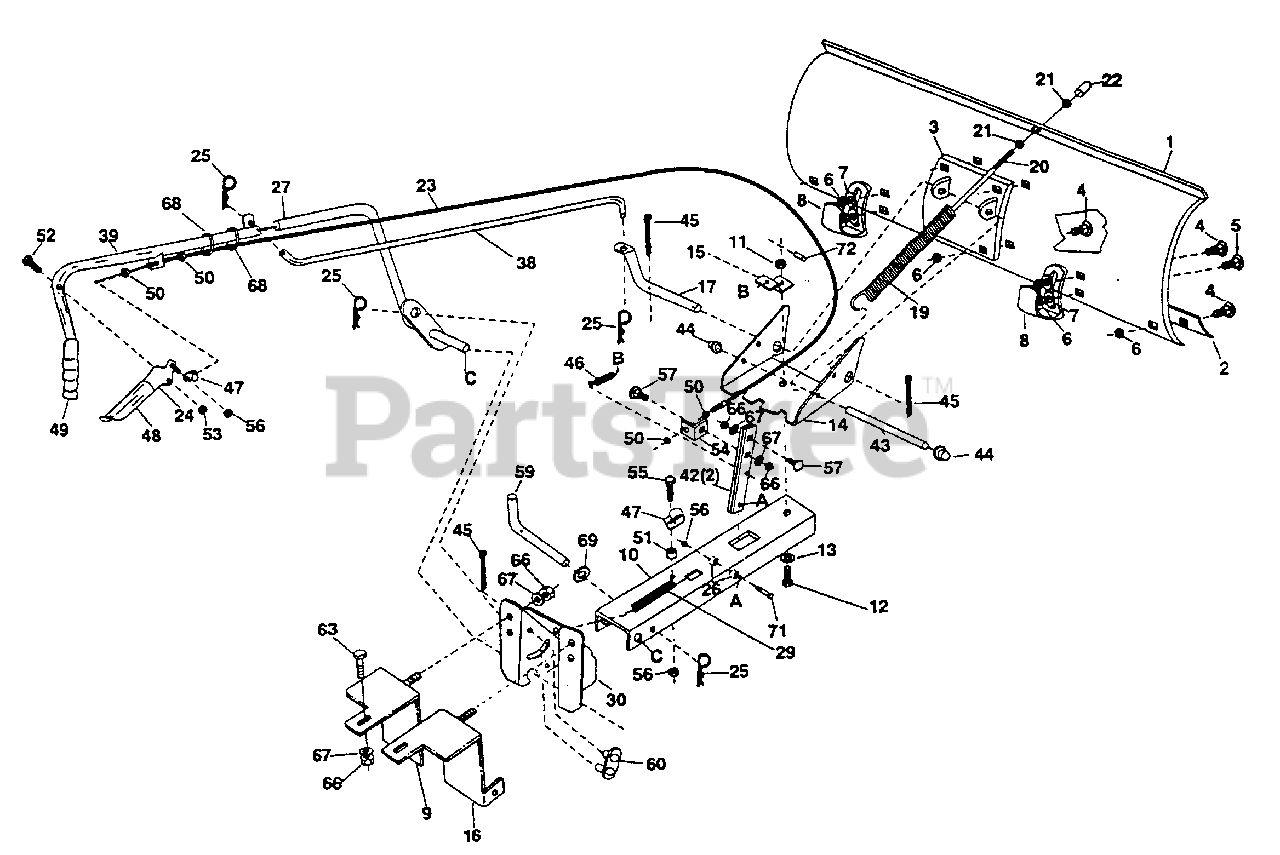

Snow Blade Assembly Parts Diagram

  • Title
1

MTD AF-23863

Blade 42"

$

$

Not available

2

MTD AF-23117

Wear Plate 42"

$

$

Not available

3

MTD AF-62980

Reinforcement Plate Ass'y.

$136.99

$

Usually ships in 3-6 days

0

4

MTD 910-0451

Bolt, Carriage 5/16-18 x 3/4"
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

5

MTD 910-0276

Bolt, Carriage 5/16-18 x 1"
(Superseded to 710-0276)

$3.99

$

In Stock, Qty 20+

0

6

MTD 912-0158

Nut, Hex Lock 5/16-18

$3.49

$

In Stock, Qty 18

0

7

MTD AF-43081

Washer, 5/16"
(Superseded to 936-0159)

$

$

Not available

8

MTD AF-23070

Skid Shoe
(Superseded to AF-24690)

$25.99

$

Usually ships in 3-6 days

0

9

MTD 17511

Support Bracket (L.H.)

$

$

Not available

10

MTD AF-62970

Ass'y. Channel Sub

$

$

Not available

11

MTD 912-0384

Nut, Hex Lock 1/2-13

$6.99

$

In Stock, only 3 left!

0

12

MTD AF-23131

Bolt, Special Pivot

$15.99

$

Usually ships in 3-6 days

0

13

MTD AF-43352

Washer, Flat 7/16"

$

$

Not available

14

MTD AF-23958

Plate, Pivot 7 Ga.

$102.99

$

Usually ships in 3-6 days

0

15

MTD AF-23130

Bracket, Spring Mt.

$

$

Not available

16

MTD 17512

Support Bracket (R.H.)

$

$

Not available

17

MTD AF-46066

Shaft Pivot

$

$

Not available

?18

MTD AF-43070

Washer 3/8" Std.

$8.49

$

Usually ships in 3-6 days

0

19

MTD AF-9466R

Spring, Blade Adjust
(Superseded to AF-48090)

$73.99

$

Usually ships in 3-6 days

0

20

MTD 710-0316

Bolt, Hex 3/8-16 x 3-1/2"

$

$

Not available

21

MTD 912-0798

Nut, Hex 3/8-16
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

22

MTD AF-44074

Plastic Cap

$17.99

$

Usually ships in 3-6 days

0

23

MTD 746-0366

Control Cable Ass'y.
(Superseded to AF-49808P)

$118.99

$

Usually ships in 3-6 days

0

24

MTD AF-62561

Release Grip Ass'y.

$

$

Not available

25

MTD HA-3430

Pin, Hairpin Small 3/32"
(Superseded to AF-47134)

$6.99

$

In Stock, only 1 left!

0

26

MTD AF-46053

Spacer, .28 I.D. x 1"

$12.99

$

Usually ships in 3-6 days

0

27

MTD AF-63033

Lift Handle Rod Ass'y.

$

$

Not available

29

MTD 732-0153

Extension Spring

$

$

Not available

30

MTD AF-24023-0637

Pivot Support Bracket

$174.99

$

Usually ships in 3-6 days

0

38

MTD AF-46049

Rod, Blade Pivot

$

$

Not available

39

MTD AF-62972

Ass'y. Lift Handle Tube

$

$

Not available

42

MTD AF-23151

Angle Lock Bar

$38.99

$

Usually ships in 3-6 days

0

43

MTD AF-23856

Spring Mount Rod

$12.99

$

Usually ships in 3-6 days

0

44

MTD 926-0100

Palnut, 3/8"
(Superseded to 726-0100)

$

$

Not available

45

MTD 914-0470

Cotter Pin 1/8" x 1-1/4"
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

46

MTD AF-43348

Angle Lock Spring

$36.99

$

In Stock, only 1 left!

0

47

MTD 746-0260

Cable End Fitting

$

$

Not available

48

MTD 731-0869

Grip, Plastic

$10.99

$

Usually ships in 3-6 days

0

49

MTD AF-46198

Handle, Grip 3/4"

$

$

Not available

50

MTD 712-0256

Hex Jam Nut 5/16 Thread

$

$

Not available

51

MTD AF-23658

Spacer

$

$

Not available

52

MTD 710-0442

Hex Bolt, 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

53

MTD 912-0158

Hex Lock Nut 5/16-18 Thread

$3.49

$

In Stock, Qty 18

0

54

MTD 05762

Cable Mount Bracket

$

$

Not available

55

MTD 710-0106

Hex Bolt 1/4-20 x 1-1/4"

$3.99

$

In Stock, Qty 12

0

56

MTD 912-0291

Hex Lock Nut 1/4-20 Thread
(Superseded to 712-0291)

$

$

Not available

57

MTD 710-0305

Carriage Bolt 3/8-16 1-1/4"
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

59

MTD AF-46065

Pivot Channel Shaft

$45.99

$

In Stock, only 1 left!

0

60

MTD AF-63034

Lift Link Ass'y.
(Superseded to AF-69740)

$22.99

$

In Stock, Qty 9

0

63

MTD 910-0253

Hex Bolt 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

66

MTD 912-0798

Hex Nut 3/8-16 Thread
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

67

MTD 936-0169

Lock Washer 3/8"
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

68

MTD 726-0178

Plastic Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

69

~NLA

Washer

$

$

Not available

71

MTD 710-1123

Bolt, Hex 1/4-20 x 3-1/4" Lg. (Gr. 5)

$

$

Not available

72

MTD 715-0108

1/4" x 1" Spring Pin

$4.99

$

In Stock, Qty 15

0
