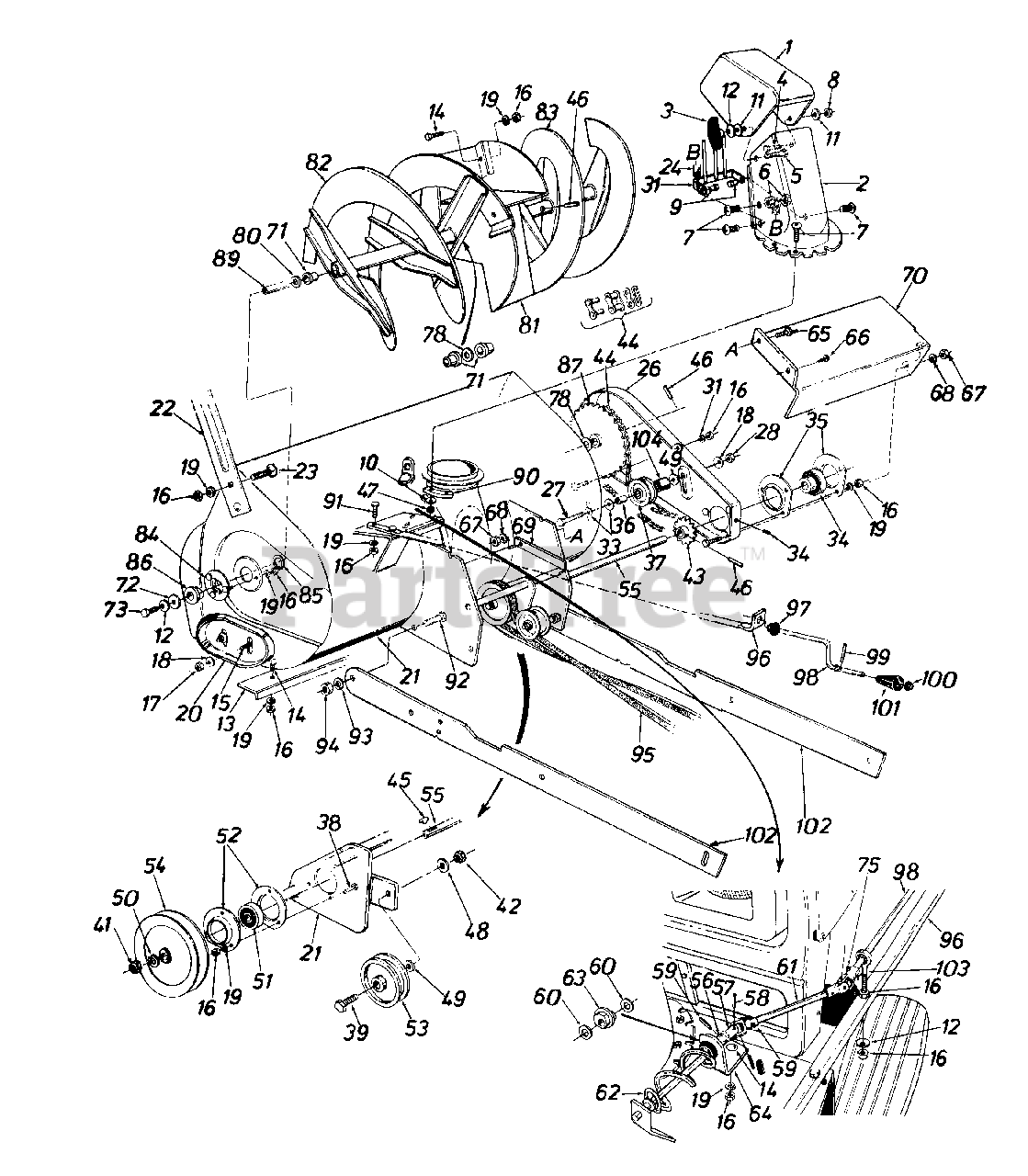

190-491-190 - White Outdoor 36" Snow Thrower Attachment (1994) Chute Deflector Parts Diagram

36" Snow Thrower Attachment

Chute Deflector Parts Diagram

  • Title

1

MTD 731-0846C

Upper Chute

$52.99

$

In Stock, only 4 left!

0

2

MTD 931-0843B

Lower Chute

$

$

Not available

3

MTD 720-04072A

Knob Handle Ass'y.

$6.99

$

In Stock, Qty 20+

0

4

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

5

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 10

0

6

MTD 912-0291

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 712-0291)

$

$

Not available

7

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

9

MTD 938-0561

Shld. Nut 1/4-20 Thd.

$9.49

$

Usually ships in 3-6 days

0

10

MTD 936-0142

Fl-Wash. 1/4" I.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

11

MTD 936-0231

Fl-Wash. .344" I.D. x 1.125"
(Superseded to 736-0231)

$

$

Not available

12

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

13

MTD 05378-0637

Shave Plate

$78.99

$

Usually ships in 3-6 days

0

14

MTD 710-0451

Carriage Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0389

Carriage Bolt 3/8-16 x .62" Lg.

$4.49

$

In Stock, Qty 10

0

16

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

19

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 784-5038B-0637

Slide Shoe

$27.99

$

Usually ships in 3-6 days

0

21

MTD 784-5212

Spiral Hsg. Ass'y. - 36"

Note: NLA

$

$

Currently unavailable

22

MTD 790-00181-0637

Guide Blade

$43.99

$

Usually ships in 3-6 days

0

23

MTD 710-0260A

Carriage Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

24

MTD 732-0118A

Extension Spring

$10.99

$

Usually ships in 3-6 days

0

26

MTD 05379A

Chain Guard Ass'y.

Note: NLA

$

$

Not available

27

MTD 710-3144

Hex Bolt 3/8-16 x 2" Lg.

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0130

Hex Ins. Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

31

MTD 784-5192-0637

Chute Guard Ass'y.

$99.99

$

Usually ships in 3-6 days

0

33

MTD 936-0300

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

34

MTD 941-0310

Ball Brg. .75" I.D.

$

$

Not available

35

MTD 941-0311

Flangette

$

$

Not available

36

MTD 950-0252

Spacer .375" I.D. x .60" O.D.

$21.99

$

In Stock, Qty 5

0

37

MTD 756-0358A

Flat Idler 1.875" Dia.

Note: NLA

$

$

Not available

38

MTD 910-0198

Hex Sems Bolt 5/18 x .75" Lg.

$

$

Not available

39

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

41

MTD 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

42

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

43

MTD 713-0188

Sprocket Ass'y. - 14 Teeth

$70.99

$

Usually ships in 3-6 days

0

44

MTD 713-0189

#420 Chain x 1/2" Pitch - 77 Links

Note: NLA

$

$

Not available

44

MTD 913-0154

Master Link

$

$

Not available

45

MTD 914-0388

061 Hi-Pro-Key 3/16 x 5/8"

$7.99

$

In Stock, Qty 20+

0

46

MTD 915-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.
(Superseded to 715-0118)

$

$

Not available

47

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

48

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0247

Fl-Wash. .406" I.D. x 1.25"

$9.49

$

In Stock, Qty 14

0

50

MTD 936-0364

Spr. L-Wash. 3/4" I.D.

$

$

Not available

51

MTD 941-0309

Self-Aligning Brg.

$74.99

$

Usually ships in 3-6 days

0

52

MTD 941-0311

Flangette

$

$

Not available

53

MTD 956-0417

Idler Pulley

$

$

Not available

54

MTD 756-0456

5/8 V-Pulley .75" I.D. x 6" O.D.

Note: NLA

$

$

Not available

55

MTD 784-5077A

Drive Shaft Ass'y.

Note: NLA

$

$

Not available

56

MTD 05066

Joint Brkt. Ass'y.

Note: NLA

$

$

Not available

57

MTD 711-0584

Joint Block

$

$

Not available

58

MTD 728-0147

Oval Head Rivet

$

$

Not available

59

MTD 715-0129

Spiral Pin 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

60

MTD 936-0140

Fl-Wash. .385" I.D. x .62"
(Superseded to 736-0140)

$

$

Not available

61

MTD 747-0523A

Chute Crank Ext. Rod

Note: NLA

$

$

Not available

62

MTD 784-5084

Chute Crank Ass'y. R.H.

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

63

MTD 941-0475

Plastic Bushing .38" I.D.

$4.49

$

In Stock, Qty 20+

0

64

MTD 784-5085A

Chute Crank Brkt.

$

$

Not available

65

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

66

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

67

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

68

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

69

MTD 784-5214

Belt Cover

Note: NLA

$

$

Not available

70

MTD 784-5215

Drive Shaft Cover

$

$

Not available

71

MTD 741-0494

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

72

MTD 07386

Washer .39" I.D. x 1.75" O.D.

$

$

Not available

73

MTD 710-0371

Hex Bolt 5/16-18 x .88" Spec.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

75

MTD 914-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, Qty 17

0

78

MTD 936-0163

Fl-Wash. 1.03" I.D. x 1.62"
(Superseded to 736-0163)

$

$

Not available

80

MTD 736-0250

Fl-Wash. 1" I.D. x 1.75"

$4.49

$

Usually ships in 3-6 days

0

81

MTD 784-5216-0637

Rotor Paddle Ass'y.

$

$

Not available

82

MTD 784-5219

36" Spiral Ass'y. - L.H.

Note: NLA

Variations

MTD 784-5219-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

83

MTD 784-5220

36" Spiral Ass'y. - R.H.

Note: NLA

Variations

MTD 784-5220-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 784-5220-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

84

MTD 05361

Bearing Hsg. Ass'y.

$

$

Not available

85

MTD GW-9502

Snap Ring for 1.5" Shaft
(Superseded to 716-04119)

$14.99

$

In Stock, only 1 left!

0

86

MTD 941-0170

Flange Brg, w/flats 1" I.D.

$19.99

$

In Stock, Qty 14

0

87

MTD 713-0177

Sprocket Hub Ass'y. 40 Teeth

$

$

Not available

89

MTD 738-0229

Spiral Axle

Note: NLA

$

$

Not available

90

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

91

MTD 710-0805

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

92

MTD 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

93

MTD 936-0921

L-Wash. 1/2" I.D.
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

94

MTD 912-0206

Hex Nut 1/2-13 Thd.
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

95

MTD 954-0294

V-Belt

$68.99

$

Usually ships in 3-6 days

0

96

MTD 749-0675

Chute Crank Support Tubing

Note: NLA

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

98

MTD 747-0438

Chute Crank 34.5" Lg.

Note: NLA

$

$

Not available

99

MTD 915-0138

Roll Pin .12" Dia. x .63"

$4.99

$

In Stock, only 1 left!

0

100

MTD 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

101

MTD 720-0201A

Knob Black

$10.99

$

In Stock, Qty 5

0

102

MTD 05836

Linkage Arm

Note: NLA

$

$

Not available

103

MTD 747-0481A

Eye Bolt 5/16-18 x 3" Lg.

$

$

Not available

104

MTD 741-0322

Idler Spacer

$

$

Not available
