36" Snow Thrower Attachment

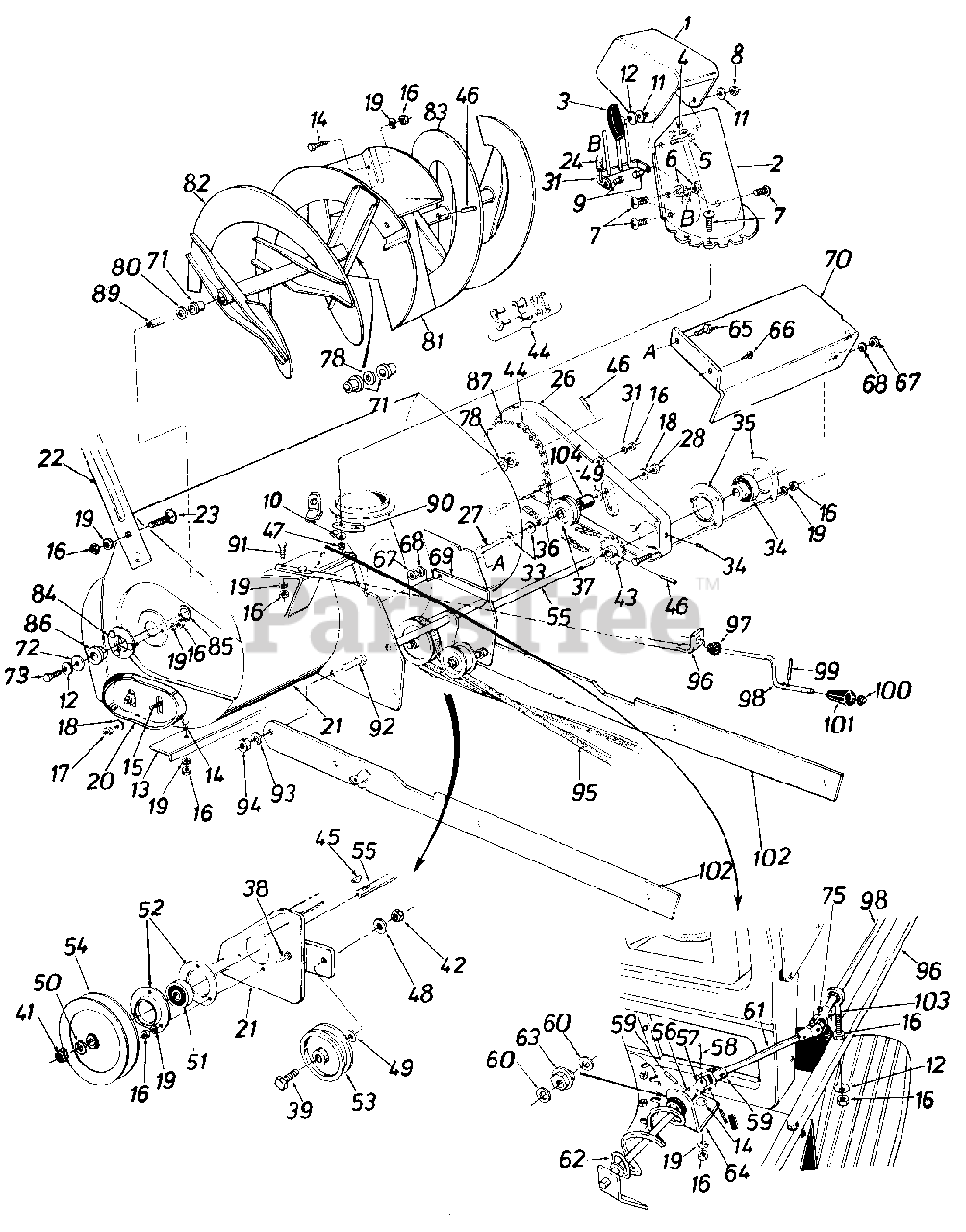

36" Snow Thrower Tine Assembly Parts Diagram

  • Title

1

White Outdoor 731-0846

Upper Chute
(Superseded to 731-0846C)

$52.99

$

In Stock, only 3 left!

0

2

White Outdoor 731-0843

Lower Chute
(Superseded to 931-0843B)

$

$

Not available

3

White Outdoor 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0276

Carriage Bolt 5/16-18 x 1.0"*

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0291

Hex Cent. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 8

0

7

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

9

White Outdoor 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0142

Fl. Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0231

Fl.-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 736-0242

Bell. Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 05378

Shave Place
(Superseded to 05378-0637)

Variations

White Outdoor 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0790

Carriage Bolt 3/8-16 x .62"*
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

16

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

18

White Outdoor 736-0105

Bell. Wash. .40 I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

21

784-5212

Spiral Hsg. Ass'y.-36"

$

$

Not available

22

White Outdoor 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 732-0118

Extension Spring
(Superseded to 732-0118A)

$10.99

$

Usually ships in 3-6 days

0

26

White Outdoor 05379

Chain Guard Ass'y.

$

$

Not available

27

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.00 4.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-0130

Hex Inst.-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

31

White Outdoor 784-5192

Chute Guard Ass'y.
(Superseded to 784-5192-0637)

Variations

White Outdoor 784-5192-0637

GUARD ASSY-CHUTE - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

33

White Outdoor 736-0300

Fl.-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 741-0310

Ball Brg. .75" I.D.
(Superseded to 941-0310)

$

$

Not available

35

White Outdoor 741-0311

Flangette
(Superseded to 941-0311)

$

$

Not available

36

White Outdoor 750-0252

Spacer .375" I.D. x .60" O.D.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

37

White Outdoor 756-0358

Fl.-ldler w/Flanges 1.875

$

$

Not available

38

White Outdoor 710-0198

Hex Sems Bolt 5/18x.75" 4.
(Superseded to 910-0198)

$

$

Not available

39

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" 4.*

$5.49

$

In Stock, Qty 20+

0

41

White Outdoor 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

42

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

43

White Outdoor 713-0188

Sprocket Ass'y.-14 Teeth

$70.99

$

Usually ships in 3-6 days

0

44

White Outdoor 713-0189

#420 Chain x 1/2" Pitch- 0 77 Links

$

$

Not available

White Outdoor 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

45

White Outdoor 714-0388

#61 Hi-Pro-Key 3/16 x 5/8"
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

46

White Outdoor 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

47

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

48

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 736-0235

Fl.-Wash. .406" I.D. x 1.25"
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

50

White Outdoor 736-0367

Spring L.-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

51

White Outdoor 741-0309

Self-Aligning Brg.
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

52

White Outdoor 741-0311

Flangette
(Superseded to 941-0311)

$

$

Not available

53

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

54

White Outdoor 756-0456

5/8 V Pulley .75" I.D. x 6"

$

$

Not available

55

White Outdoor 784-5077

Drive Shaft Ass'y

$

$

Not available

56

White Outdoor 05066

Joint Brkt. Ass'y.

$

$

Not available

57

White Outdoor 711-0584

Joint Block

$

$

Not available

58

White Outdoor 728-0147

Oval Head Rivet

$

$

Not available

59

White Outdoor 715-0129

Spiral Pin 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

60

White Outdoor 736-0140

Fl.-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 6

0

61

White Outdoor 747-0523

Chute Crank Ext. Rod

$

$

Not available

62

White Outdoor 784-5084

Chute Crank Ass'y. R.H.

$

$

Not available

63

White Outdoor 741-0475

Plastic Bushing .380" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 784-5085

Chute Crank Brkt.
(Superseded to 784-5085A)

$

$

Not available

65

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 0 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

68

White Outdoor 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

69

White Outdoor 784-5214

Belt Cover

$

$

Not available

70

White Outdoor 784-5215

Drive Shaft Cover

$

$

Not available

71

White Outdoor 741-0494

Plastic Bushing

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 07386

Washer .39" I.D. x 1.75" O.D

$

$

Not available

73

White Outdoor 710-0371

Hex Bolt 5/16-18 x .88" Spec
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

75

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, Qty 12

0

78

White Outdoor 736-0163

Fl.-Wash. 1.03" I.D. x 1.62"

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 736-0250

Fl.-Wash. 1.0" x 1.75"

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

White Outdoor 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

82

White Outdoor 784-5219

36" Spiral Ass'y.-L.H.

Variations

White Outdoor 784-5219-0637

SPIRAL ASSY-LH-36" - POWDER BLACK (0637)

$

$

Not available

$

$

83

MTD 784-5220

36" Spiral Ass'y.-R.H.

Variations

White Outdoor 784-5220-0637

No Longer Available SPIRAL ASS'Y RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5220-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

84

White Outdoor 05360

Bearing Hsg. Ass'y.
(Superseded to 05361)

$

$

Not available

85

White Outdoor 716-0121

Snap Ring for 1.50" Shaft
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

86

White Outdoor 741-0170

Flange Brg. w/flats 1.00" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

87

White Outdoor 713-0177

Sprocket Hub Ass.y. 40 Teet

$

$

Not available

89

White Outdoor 738-0229

Spiral Axle

$

$

Not available

90

White Outdoor 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 710-0474

Hex Bolt 1/2-13 x 1.25" 4.*

$

$

Not available

93

White Outdoor 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

94

White Outdoor 712-0206

Hex Nut 1/2"13 Thd.*

$4.49

$

In Stock, Qty 20+

0

95

White Outdoor 754-0294

"V"Belt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

96

White Outdoor 749-0675

Chute Crank Support Tubing

Variations

White Outdoor 749-0675-0637

No Longer Available TUBING-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

97

White Outdoor 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 747-0438

Chute Crank 34.5" L.g
(Superseded to 747-0438A)

$

$

Not available

99

White Outdoor 715-0138

Roll Pin .12 Dia. x .63
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

100

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

101

White Outdoor 720-0201

Knob Black
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 5

0

102

White Outdoor 05836

Linkage Arm

$

$

Not available

103

White Outdoor 747-0481

Eye Bolt 5/16-18 x 3.0" 4.

$

$

Not available

104

White Outdoor 741-0322

Idler Spacer

$

$

Not available
