190-491-000 - MTD 36" Snow Thrower Attachment (1992) Snow Thrower Attachment Parts Diagram

36" Snow Thrower Attachment

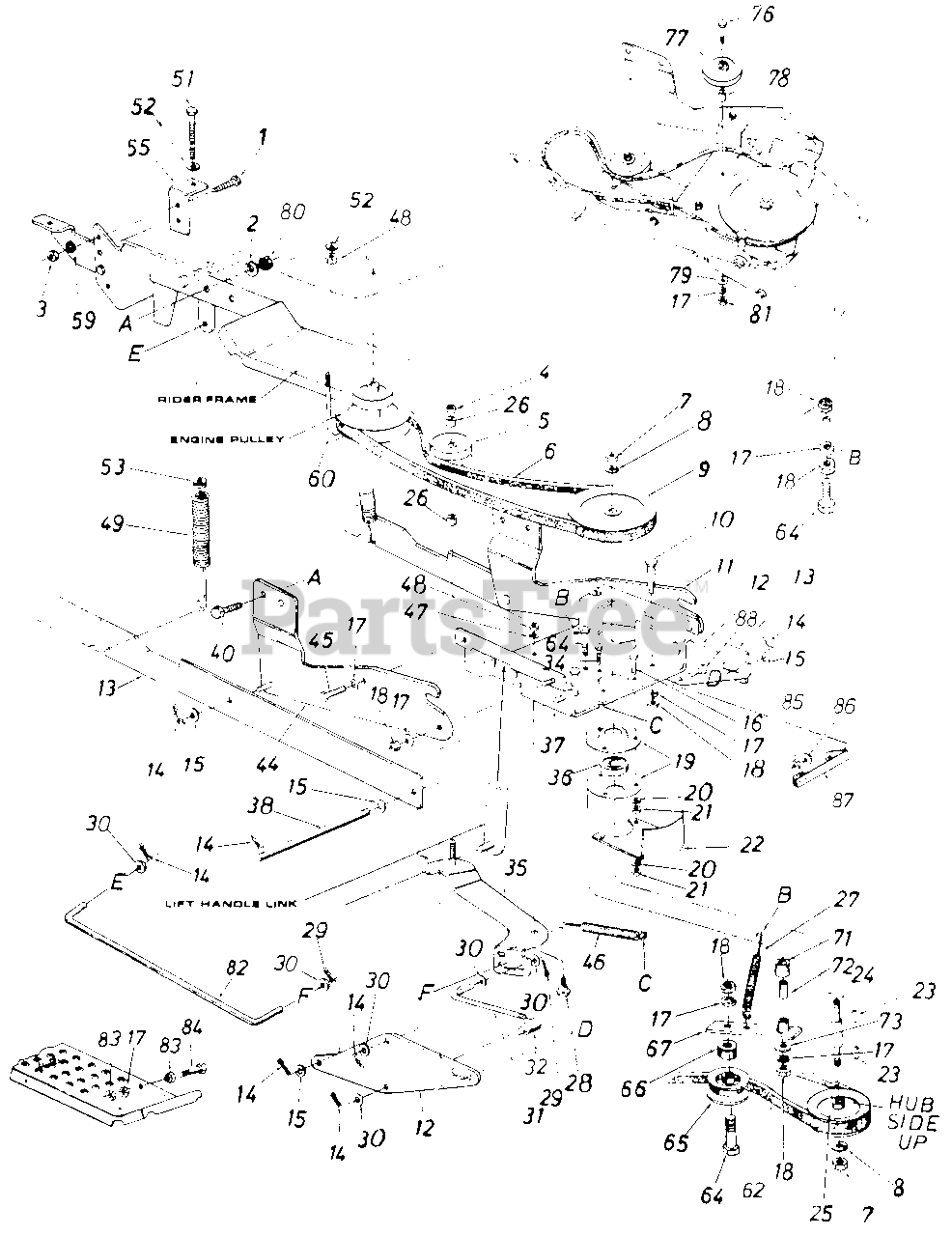

Snow Thrower Attachment Parts Diagram

  • Title

1

MTD 710-0299

Hex Bolt 1/4-28 x 1.0" Lg.- Gr. 5

$4.49

$

Usually ships in 3-6 days

0

2

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

4

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

5

MTD 756-0417

Idler Pulley

$

$

Not available

6

MTD 754-0299

"V"-Belt

$

$

Not available

7

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

8

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

9

MTD 756-0216

5/8 Pulley x 6.5" O.D.

$

$

Not available

10

MTD 738-0129

Shoulder Bolt

$11.99

$

In Stock, only 1 left!

0

11

MTD 05826A

Channel Support Brkt.- R.H.

$

$

Not available

12

MTD 05835

Linkage Brkt.

$

$

Currently unavailable

13

MTD 05836

Linkage Arm Ass'y.

$

$

Not available

14

MTD 714-0101

Intern. Cotter Pin .50" Dia.

$4.99

$

In Stock, only 2 left!

0

15

MTD 736-0192

Fl-Wash.

$4.49

$

In Stock, Qty 8

0

16

MTD 710-0528

Hex Bolt 5/16-18 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

19

MTD 082538

Bearing Housing

$

$

Currently unavailable

20

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 05406

Belt Guard
(Superseded to 05406-0637)

Variations

MTD 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 714-0388

#Hi-Pro-Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

24

MTD 738-0246

Pulley Spindle

$

$

Not available

25

MTD 756-0457

5/8 Pulley 6.28" I.D. x 5.56" O.D.

$

$

Not available

26

MTD 750-0503

Spacer .383" I.D. x .503" O.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

27

MTD 732-0470A

Extension Spring .54" O.D. x 5.25"
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 7

0

28

MTD 738-0140

Shoulder Bolt

$5.99

$

In Stock, Qty 15

0

29

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

30

MTD 736-0300

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

31

MTD 747-0533

Control Rod (Clutch)
(Superseded to 747-0533A)

$

$

Not available

32

MTD 711-0723

Ferrule
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

34

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

35

MTD 05409A

Clutch Idler Brkt. Ass'y.

$

$

Not available

36

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

37

MTD 05411B

Channel Ass'y.

$

$

Not available

38

MTD 738-0242

Lift Handle Shaft

$

$

Not available

40

MTD 710-0642

Hex Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

44

MTD 05827A

Channel Supporting Brkt.- L.H.
(Superseded to 05827B-0637)

$

$

Not available

45

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

46

MTD 732-0146

Extension Spring

$

$

Not available

47

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 732-0323

Helper Spring

$

$

Not available

51

MTD 710-0646

Hex Bolt 5/16-1S x 2.0" Lg.
(Superseded to 710-04039)

Note: Special

$4.99

$

In Stock, only 4 left!

0

52

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D. x .06"

$4.49

$

In Stock, Qty 20+

0

53

MTD 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

55

MTD 05933

Helper Spring

Variations

MTD 05933-0637

No Longer Available BRACKET-HE - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

60

MTD 710-0836

J-Bolt 5/16-18 Thd.

$

$

Not available

62

MTD 754-0294

"V"-Belt
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

64

MTD 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

65

MTD 756-0417

Idler Pulley

$

$

Not available

66

MTD 750-0503

Spacer .385" I.D. x .503" O.D. x .562" Lg.
(Superseded to 950-0503)

$

$

Not available

67

MTD 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$173.99

$

Usually ships in 3-6 days

0

71

MTD 711-0242

Spacer .38" I.D.

$4.49

$

In Stock, Qty 8

0

72

MTD 750-0252

Spacer .3775" I.D. x .6" O.D. x 8.3" Lg.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

73

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D. x 1.27"

$4.49

$

In Stock, only 4 left!

0

76

MTD 710-0859

Hex Bolt 3/8-16 x 2.5" Lg. (Grade 5)

$6.99

$

In Stock, Qty 16

0

77

MTD 756-0116

Idler Pulley .38" I.D. x 3.06" O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

78

MTD 711-0396

Spacer .385" I.D. x .63" O.D. x .76" Lg.

$11.99

$

Usually ships in 3-6 days

0

79

MTD 07386

Fl-Wash. .39" I.D. x 1-3/4" O.D. x 3/16"

$

$

Not available

80

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

81

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

82

MTD 747-0532

Clutch Control Rod

$

$

Not available

83

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

84

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

85

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

86

MTD 736-0356

Bell-Wash. 3/8" I.O.
(Superseded to 936-0356)

$

$

Not available

87

MTD 761-0195

Auger Brake Brkt. Ass'y.

$

$

Not available

88

MTD 710-0201

Hex Bolt 3/8-16 x 5/8" Lg.

$

$

Not available

MTD 730-0116

Reflectors

Note: (Not Shown)

$

$

Currently unavailable

MTD 14632

Index Brkt. (Hardened)

Note: (Not Shown)

$

$

Currently unavailable

MTD 14802A

Lift Link
(Superseded to 14802A-0637)

Note: (Not Shown)

Variations

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$
