190-491-000 - MTD 36" Snow Thrower Attachment (1987) 36" Snow Thrower Attachment Parts Diagram

36" Snow Thrower Attachment

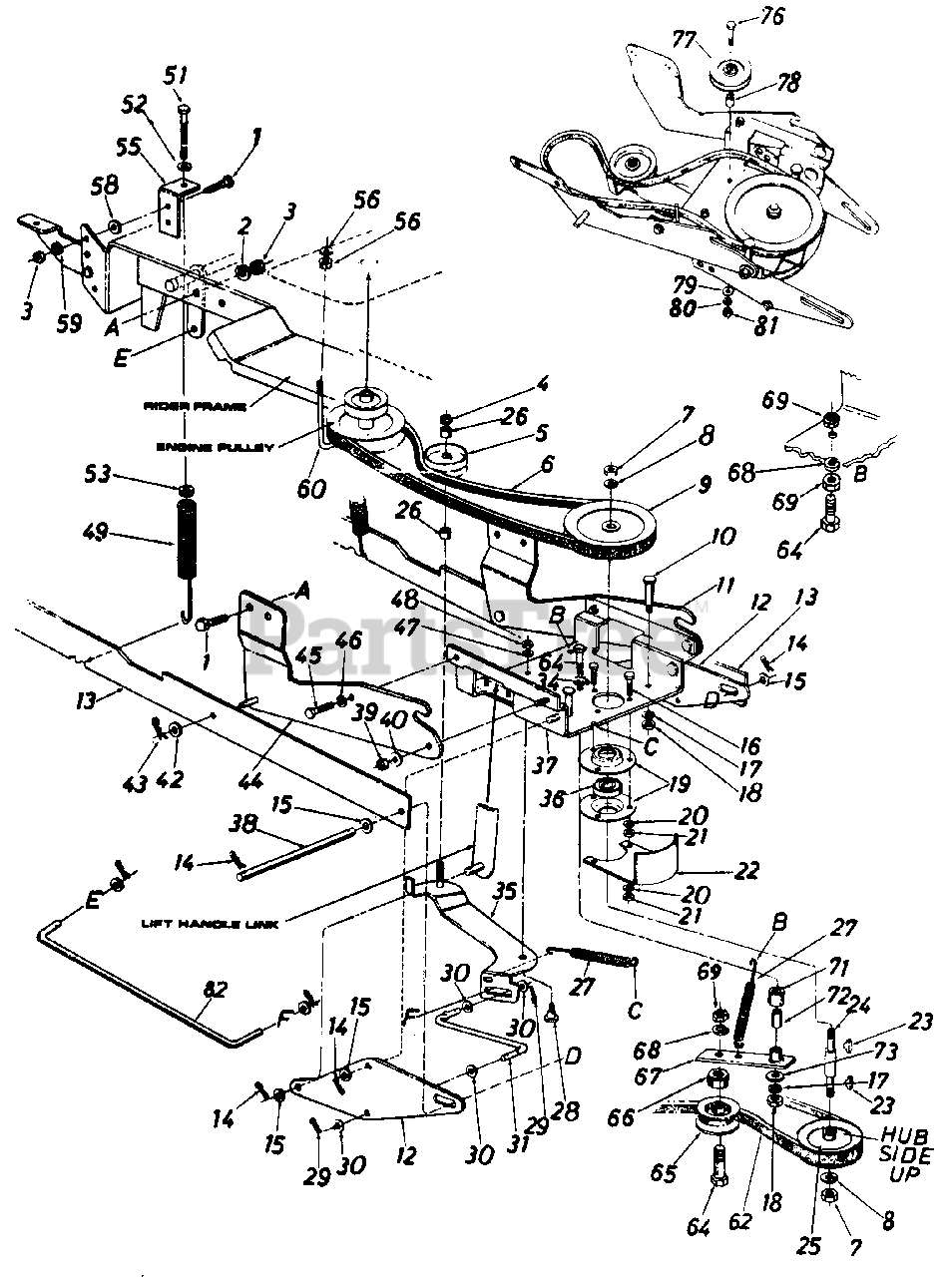

36" Snow Thrower Attachment Parts Diagram

  • Title

1

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg. Grade 5

$5.99

$

In Stock, Qty 8

0

2

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

MTD 712-0138

Hex Nut 1/4-28 Thd.*

$6.99

$

Usually ships in 3-6 days

0

4

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd .

$4.49

$

In Stock, Qty 6

0

5

MTD 756-0417

Idler Pulley

$

$

Not available

6

MTD 754-0299

"V"-Belt 1/2 x 49" Lg.

$

$

Not available

7

MTD 712-0242

Hex Jam Nut 5/8-11 Thd
(Superseded to 912-0261)

$

$

Not available

8

MTD 736-0158

L-Wash 5/8" I.D.*

$4.49

$

In Stock, only 1 left!

0

9

MTD 756-0216

6.50" O.D. x 5/8 Pulley

$

$

Not available

10

MTD 738-0129

Shoulder Bolt

$11.99

$

In Stock, only 1 left!

0

11

MTD 05826

Channel Supporting Brkt.- R.H.

$

$

Not available

12

MTD 05835

Linkage Brkt.

$

$

Currently unavailable

13

MTD 05836

Linkage Arm Ass'y.

$

$

Not available

14

MTD 714-0101

Intern. Cotter Pin .50 Dia.*

$4.99

$

In Stock, only 2 left!

0

15

MTD 736-0192

Fl.-Wash.

$4.49

$

In Stock, Qty 8

0

16

MTD 710-0528

Hex Bolt 5/16 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

19

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

20

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 05406

Belt Guard
(Superseded to 05406-0637)

Variations

MTD 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 714-0388

#6 Hi-Pro-Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0

24

MTD 738-0246

Pulley Spindle

$

$

Not available

25

MTD 756-0457

5/8 Pulley-6.28 I.D. x 5.56 O.D.

$

$

Not available

26

MTD 750-0503

Spacer .383 I.D. x .503 O.D. x .562 Lg.
(Superseded to 950-0503)

$

$

Not available

27

MTD 732-0470

Extension Spring .54 O.D. x 5.25"
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 7

0

28

MTD 738-0140

Shoulder Bolt

$5.99

$

In Stock, Qty 15

0

29

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.0"*

$4.99

$

In Stock, Qty 13

0

30

MTD 736-0300

F l.-Wash.

$4.49

$

In Stock, Qty 20+

0

31

MTD 747-0396

Control Rod

Note: (not used on 44" deck)

$

$

Not available

34

MTD 710-0198

Hex Sems Scr. 5/16-18 x 1.0" Lg.*
(Superseded to 910-0198)

$

$

Not available

35

MTD 05409

Clutch Idler Brkt. Ass'y.

$

$

Not available

36

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

37

MTD 05411

Channel Ass'y.

$

$

Not available

38

MTD 738-0242

Lift Handle Shaft

$

$

Not available

39

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

40

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 736-0192

FI .-Wash.

$4.49

$

In Stock, Qty 8

0

43

MTD 714-0101

Intern. Cotter Pin .50" Dia.*

$4.99

$

In Stock, only 2 left!

0

44

MTD 05827

Channel Supporting Brkt.- L.H.
(Superseded to 05827B-0637)

$

$

Not available

45

MTD 710-0253

Hex Bolt 3/8-16 x x 1.0" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

47

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 732-0323

Helper Spring

$

$

Not available

51

MTD 710-0646

Hex Scr. 5/16-18 x 2.0" Lg. Special
(Superseded to 710-04039)

$4.99

$

In Stock, only 4 left!

0

52

MTD 736-0242

Bell Wash. .345 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

53

MTD 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

55

MTD 05933

Helper Spring Bracket

Variations

MTD 05933-0637

No Longer Available BRACKET-HE - POWDER BLACK (0637)

$

$

Not available

$

$

56

Parts on Tractor

$

$

Not available

58

MTD 736-0176

Fl.-Wash. .264" I.D.

$4.99

$

In Stock, Qty 6

0

59

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

60

MTD 710-0836

J-Bolt 5/16-18 Thd .

$

$

Not available

62

MTD 754-0294

"V"-Belt 1/2 "A" x .89" Lg.
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

64

MTD 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

65

MTD 756-0417

Idler Pulley

$

$

Not available

66

MTD 750-0503

Spacer .385 I.D. x .503 O.D. x.562" Lg.
(Superseded to 950-0503)

$

$

Not available

67

MTD 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$173.99

$

Usually ships in 3-6 days

0

68

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

69

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

71

MTD 711-0242

Spacer .380" I.D. x 1.0" I.D.

$4.49

$

In Stock, Qty 8

0

72

MTD 750-0252

Spacer .3775 I.D. x .600.D. x8.3 Lg.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

73

MTD 736-0258

Fl.-Wash. 3/8 I.D. x 1" O.D x 1.27

$4.49

$

In Stock, only 4 left!

0

76

MTD 710-0859

Hex Bolt 3/8-16 x 2.5" Lg. (Grade 5)

$6.99

$

In Stock, Qty 16

0

77

MTD 756-0116

Idler Pulley .38 I.D. x 3.06 O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

78

MTD 711-0396

Spacer .385 I.D. x .630 O.D. x .76 Lg. I

$11.99

$

Usually ships in 3-6 days

0

79

MTD 07386

Fl.-Wash. .39 I.D. x 1-3/4 O.D. x 3/1 6"

$

$

Not available

80

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

81

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

MTD 726-0228

Cable Tie
(Superseded to 725-0157)

Note: (Not Shown)

$3.99

$

In Stock, only 2 left!

0

MTD 14632

Index Brkt. (Hardened)

Note: (Not Shown)

$

$

Currently unavailable

MTD 14802

Lift Link
(Superseded to 14802A-0637)

Note: (Not Shown)

$

$

Not available

82

MTD 747-0532

Clutch Control Rod 13.67" Lg.

Note: (44" Deck Only)

$

$

Not available
