190-491-000 - MTD 36" Snow Thrower Attachment (1987) 36" Snow Thrower Attachment Parts Diagram

36" Snow Thrower Attachment

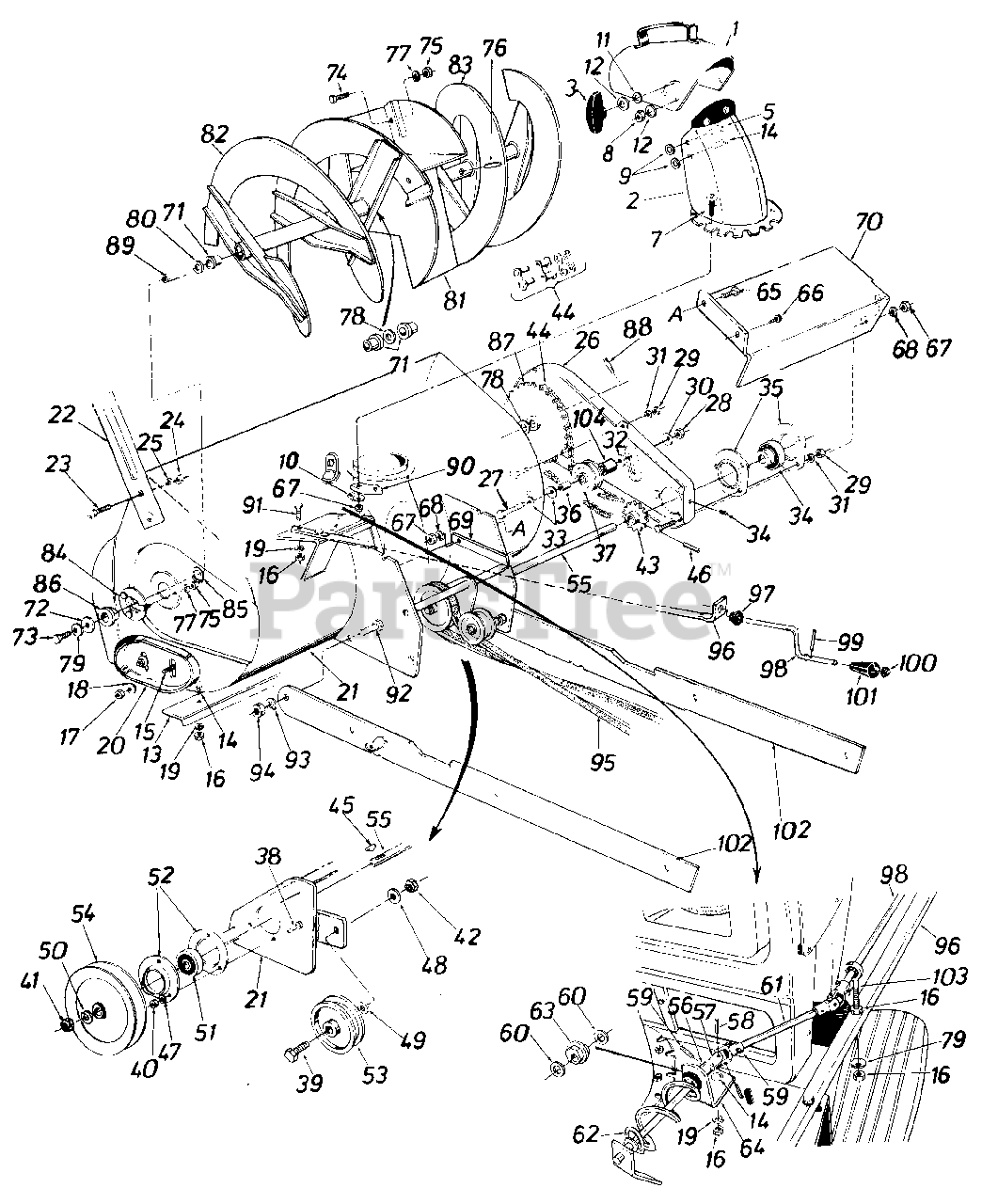

36" Snow Thrower Attachment Parts Diagram

  • Title

1

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

2

MTD 05954

Chute Assy w/ Guard

$

$

Currently unavailable

3

MTD 09966

Knob Handle Ass'y,
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-0276

Carriage Bolt 5/l6-18 x 1.0" Lg.'

$3.99

$

In Stock, Qty 10

0

MTD 710-0286

Truss Mach. Scr. 1/4-20 x 50" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0158

Hex Cent L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

9

MTD 736-0179

Fl.Wash. 531" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

10

MTD 736-0270

Bell Wash 1/4" I D

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0231

Fl Wash 344 1 D x 1.125" o.D

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0242

Bell Wash. 345" 1 D. x .88" 0D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 05378

Shave Place
(Superseded to 05378-0637)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

14

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0790

Carriage Bolt 3/8-16 x .62" Lg.*
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

18

MTD 736-0105

Bell. Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L. Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

21

MTD 784-5212

Spiral Hsg. Ass'y.-36"

$

$

Currently unavailable

22

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

23

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.'
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0119

L.-Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 05379

Chain Guard Ass'y.

$

$

Not available

27

MTD 710-0427

Hex Bolt 3/8-16 x 2.00 Lg.'
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0130

Hex Inst.-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

29

MTD 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0105

Bell.-Wash. .400" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L.-Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 736-0235

Fl.-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

33

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

34

MTD 741-0310

Ball Brg. .75" I.D.

$

$

Not available

35

MTD 741-0311

Flangette
(Superseded to 941-0311)

$

$

Not available

36

MTD 750-0252

Spacer .375" I.D. x .60" O.D.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

37

MTD 756-0358

Fl.-Idler w/Flanges 1.875 O.D. Plastic

$

$

Not available

38

MTD 710-0198

Hex Sems Bolt 5/18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

39

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.'

$5.49

$

In Stock, Qty 20+

0

40

MTD 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

42

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

43

MTD 713-0188

Sprocket Ass'v.-14 Teeth

$70.99

$

Usually ships in 3-6 days

0

44

MTD 713-0369

4420 Chain x 112" Pitch 78 Links

$

$

Not available

45

MTD 714-0388

461 Hi- Pro-Key 3/16 x 518" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

46

MTD 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

47

MTD 736-0119

L.Wash. 5/16" 1 D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 736-0169

L.-Wash. 3/8" I.D.'

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0235

Fl.-Wash .406" 1 D x 125 ' O.D
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

50

MTD 736-0367

Spring L.-Wash 314' I.D.
(Superseded to 936-0364)

$

$

Not available

51

MTD 741-0309

Self-Aligning Brg.
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

52

MTD 741-0311

Flangette
(Superseded to 941-0311)

$

$

Not available

53

MTD 756-0417

Idler Pulley

$

$

Not available

54

MTD 756-0456

5/8 V Pulley 75 ' ' D x 6.0"O.D.

$

$

Not available

55

MTD 784-5077

Drive Shaft Assv

$

$

Not available

56

MTD 05066

Joint Brkt. Ass'y

$

$

Not available

57

MTD 711-0584

Joint Block

$

$

Not available

58

MTD 728-0147

Oval Head Rivet

$

$

Not available

59

MTD 715-0129

Spirol Pin 1/8 Dia x .812" Lg .

$4.99

$

In Stock, only 1 left!

0

60

MTD 736-0140

Fl.Wash .385 I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

61

MTD 747-0523

Chute Crank Ext Rod 3/8" Dia. x 60 Lg

$

$

Not available

62

MTD 784-5084

Chute Crank Ass y. R H 6-1/4 Lg

$

$

Not available

63

MTD 741-0475

Plastic Bushing .380 1 D
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

64

MTD 784-5085

Chute Crank Brkt

$

$

Not available

65

MTD 710-0258

Hex Bolt 1/4 20 x .62" Lg '
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

66

MTD 710-0599

Hex Wash S-Tap Scr 1/4 20 x -50" Lg

$4.49

$

In Stock, Qty 20+

0

67

MTD 712-0287

Hex Nut 1/4 20 Thd'
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

68

MTD 736-0329

L-Wash- 1l4" 1 D'
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

69

MTD 784-5214

Belt Cover

$

$

Not available

70

MTD 784-5215

Drive Shaft Cover

$

$

Not available

71

MTD 405136

Plastic Bushing

$

$

Currently unavailable

72

MTD 07386

Washer 39' I-D x 1-,75" O-D

$

$

Not available

73

MTD 710-0371

Hex Bolt 5/16-18 x -88" Spec
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

74

MTD 710-0451

Carriage Bolt 5/16-18 x 75" Lg.*

$4.49

$

In Stock, Qty 20+

0

75

MTD 712-0267

Hex Nut 5/16-18 Thd'
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 715-0118

Spring Pin Spiral 5/16" Dia- x 1.75" Lg

$12.99

$

In Stock, Qty 7

0

77

MTD 736-0119

L-Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

78

MTD 736-0163

Fl Wash 1-03" 1 D- x 162" O-D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 736-0242

Bell-Wash- -345' I-D- x 88" O-D

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0250

Fl-Wash 10" I-D x 1-75" O-D.

$4.49

$

Usually ships in 3-6 days

0

81

MTD 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

MTD 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 784-5219

36" Spiral Ass'y- L-H

Variations

MTD 784-5219-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

83

MTD 784-5220

36" Spiral Ass'y. R H.

Variations

MTD 784-5220-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 784-5220-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

84

MTD 05360

Bearing Hsg. Ass'y
(Superseded to 05361)

$

$

Not available

85

MTD 716-0121

Snap Ring for 1.50" Shaft
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

86

MTD 741-0170

Flange Brg- w/flats 1-00" I-D
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

87

MTD 713-0177

Sprocket Hub Ass'y. 40 Teeth

$

$

Not available

88

MTD 715-0118

Spring Pin Spir 5/16 Dia. x 1.75" Lg

$12.99

$

In Stock, Qty 7

0

89

MTD 738-0229

Spiral Axle

$

$

Not available

90

MTD 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

91

MTD 710-0442

Hex Bolt 5/16-18 x 1-5" Lg.'
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

92

MTD 710-0474

Hex Bolt 1/213 x 125" Lg-'

$

$

Not available

93

MTD 736-0921

L Wash- 1/2" 1 D'

$4.49

$

In Stock, Qty 6

0

94

MTD 712-0206

Hex Nut 1/2"13 Thd.'

$4.49

$

In Stock, Qty 20+

0

95

MTD 754-0294

"V"Belt 1/2" "A" x 89.0" Lg
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

96

MTD 749-0675

Chute Crank Support Tubing

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

98

MTD 747-0438

Chute Crank 375" Dia. x 34.5" Lg.

$

$

Not available

99

MTD 715-0138

Roll Pin 12 Dia x .63"
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

100

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

101

MTD 720-0201

Knob Black
(Superseded to 720-0201A)

$10.99

$

In Stock, Qty 5

0

102

MTD 05836

Linkage Arm

$

$

Not available

103

MTD 747-0481

Eye Bolt 5/16-18 x 3.0" Lg.

$

$

Not available

104

MTD 741-0322

Idler Spacer 377 I.D. x 624 OD x 840

$

$

Not available
