190-485C000 - MTD 42" Snow Blade (1995) Snow Blade Assembly Parts Diagram

42" Snow Blade

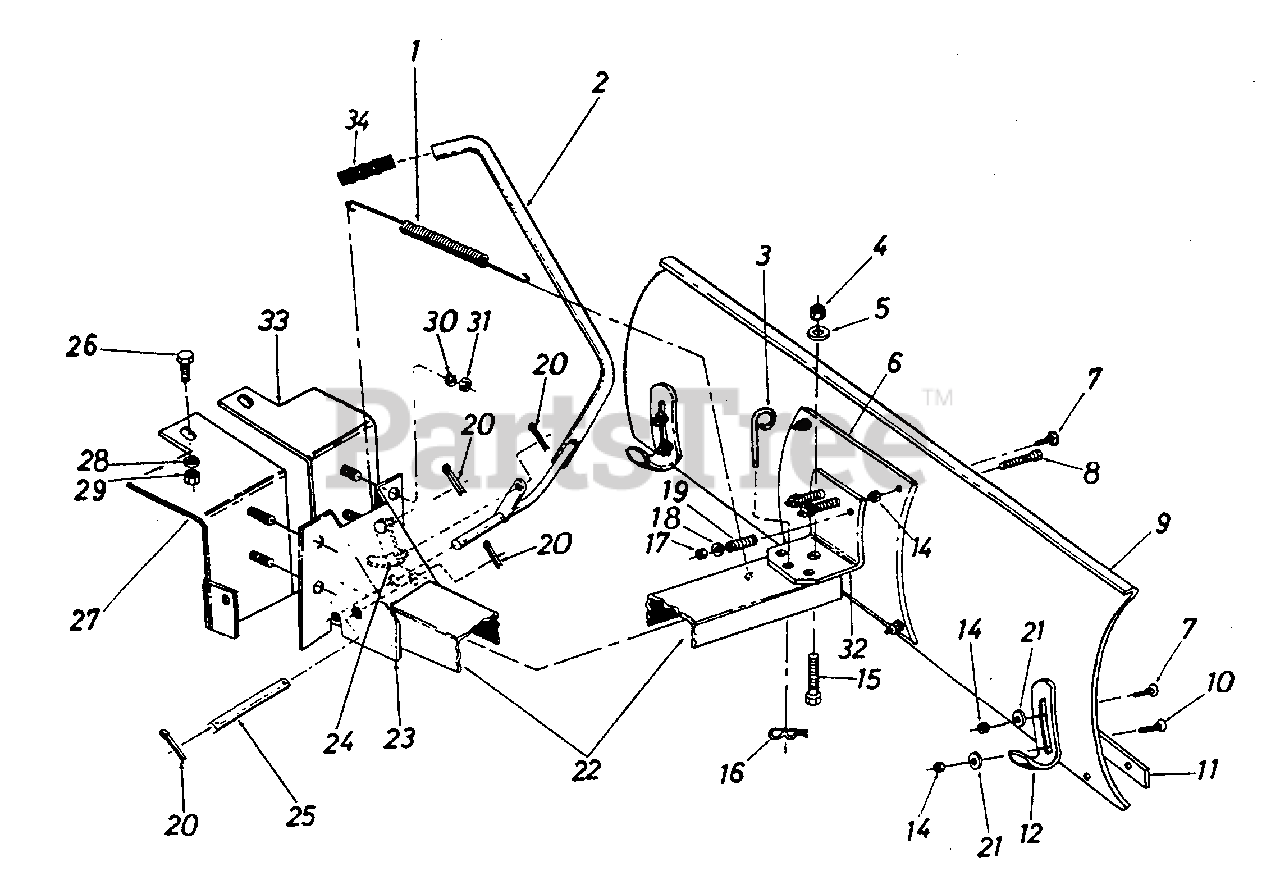

Snow Blade Assembly Parts Diagram

  • Title

1

MTD 732-0153

Extension Spring

$

$

Not available

2

MTD 63046

Lift Handle Ass'y.

Note: New Part

$

$

Currently unavailable

3

MTD 43038

Pivot Lock Pin

$

$

Currently unavailable

4

MTD 712-0384

Hex Cent. L-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

5

MTD 736-0179

Fl-Wash. 17/32" I.D. x 1.25" Lg.

$4.99

$

In Stock, only 2 left!

0

6

MTD 23061

Reinforcement Plate

$

$

Currently unavailable

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

Note: Common Hardware may be purchased locally

$4.49

$

In Stock, Qty 20+

0

8

MTD 43036

Hex Bolt 3/8-16 x 3.75" Lg. Grade 5

$

$

Currently unavailable

9

MTD 23114

42" Blade

$

$

Currently unavailable

10

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

Note: Common Hardware may be purchased locally

$3.99

$

In Stock, Qty 14

0

11

MTD 23117

42" Wear Plate

$

$

Currently unavailable

12

MTD 23070

Shoe Skid

$

$

Currently unavailable

14

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

15

MTD 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

Note: Common Hardware may be purchased locally

$

$

Not available

16

MTD 714-0101

Int. Cotter Pin

$4.99

$

In Stock, only 2 left!

0

17

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

18

MTD 736-0258

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, only 4 left!

0

19

MTD 43035

Compression Spring

$

$

Currently unavailable

20

MTD 714-0121

Cotter Pin 1/8" Dia. x 1" Lg.
(Superseded to 914-0121)

$

$

Not available

21

MTD 43081

Fl-Wash. 5/16" I.D.

$

$

Currently unavailable

22

MTD 23116

Push Bar Channel

$

$

Currently unavailable

23

MTD 24023

pivot Support Bracket

Note: New Part; Common Hardware may be purchased locally

$

$

Currently unavailable

24

MTD 63034

Lift Link

Note: New Part

$

$

Currently unavailable

25

MTD 09625

Channel Pivot Shaft
(Superseded to 738-0638)

$

$

Not available

26

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

27

MTD 17512

Support Bracket-R.H.

$

$

Not available

28

MTD 736-0169

L-Wash. 3/8" I.D.

Note: Common Hardware may be purchased locally

$3.99

$

In Stock, Qty 20+

0

29

MTD 712-0798

Hex Nut 3/8-16 Thd.

Note: Common Hardware may be purchased locally

$4.49

$

In Stock, only 2 left!

0

30

MTD 736-0169

L-Wash. 3/8 I.D.

Note: Common Hardware may be purchased locally

$3.99

$

In Stock, Qty 20+

0

31

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

32

MTD 23115

Support Bracket

$

$

Currently unavailable

33

MTD 17511

Support Bracket-L.H.

$

$

Not available

34

MTD 43362

Rubber Grip

Note: New Part

$

$

Currently unavailable
