190-485-000 - MTD 42" Snow Blade (1989) 42" Snow Blade Parts Diagram

42" Snow Blade

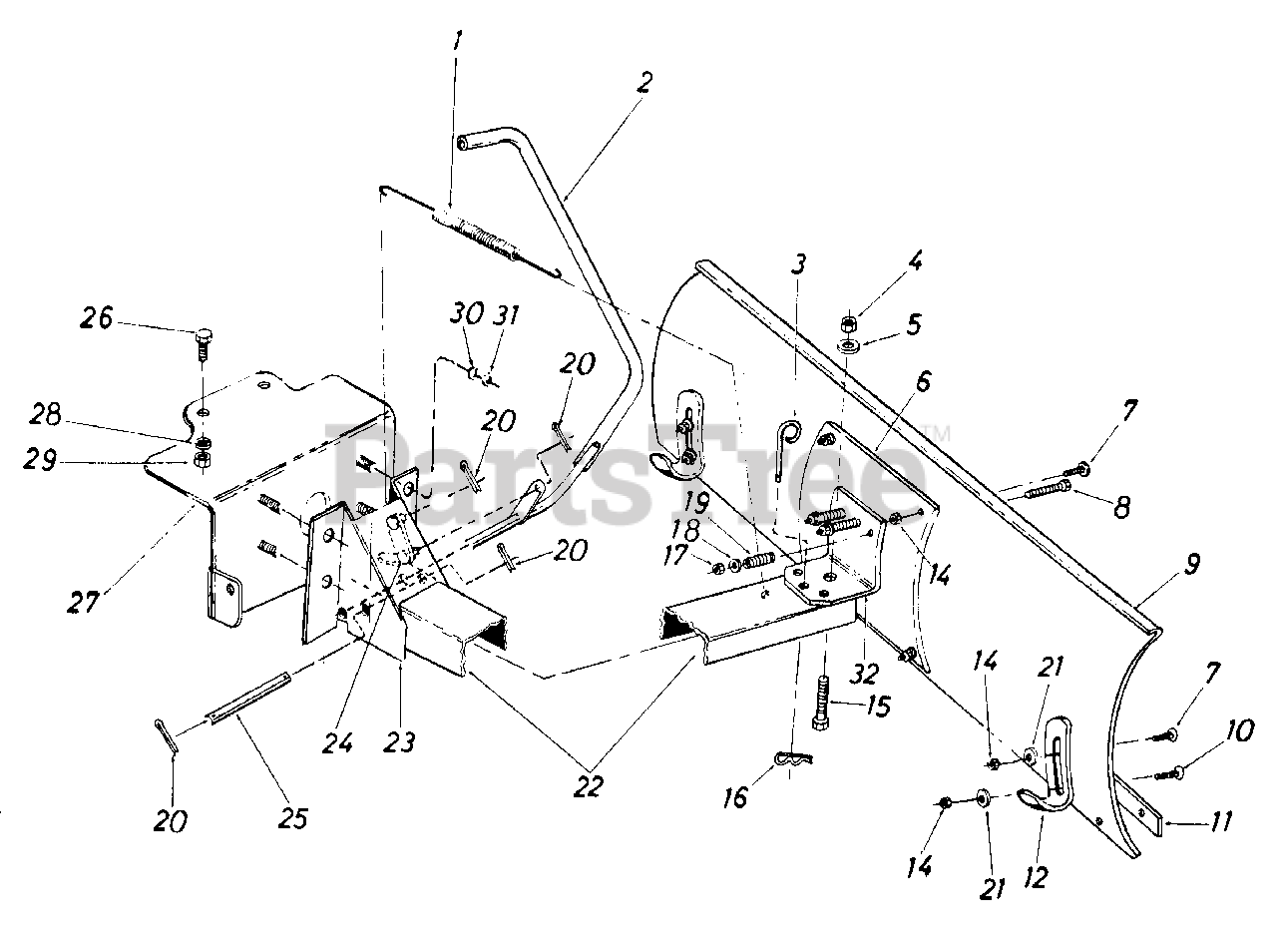

42" Snow Blade Parts Diagram

  • Title

1

MTD 732-0153

Extension Spring

$

$

Not available

2

MTD 11632

Lift Handle Ass'y.

$

$

Not available

3

MTD 43038

Pivot Lock Pin

$

$

Currently unavailable

4

MTD 712-0384

Hex Cent. L.-Nut 1/2-13 Thd.
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

5

MTD 736-0179

Fl.-Wash. 17/32 I.D. x 1.25" Lg.

$4.99

$

In Stock, only 2 left!

0

6

MTD 23061

Reinforcement Plate

$

$

Currently unavailable

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

8

MTD 43036

Hex Scr. 3/8-16 x 3.75' Lg. Grade 5

$

$

Currently unavailable

9

MTD 23114

42" Blade

$

$

Currently unavailable

10

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 10

0

11

MTD 23117

42" Wear Plate

$

$

Currently unavailable

12

MTD 23070

Shoe Skid

$

$

Currently unavailable

14

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.*
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

15

MTD 710-0474

Hex Scr. 1/2'-13 x 1.25" Lg.*

$

$

Not available

16

MTD 714-0101

Hair Pin Cotter

$4.99

$

In Stock, only 2 left!

0

17

MTD 712-0375

Hex Cent. L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

18

MTD 736-0258

Fl. Wash. 3/8" I.D.

$4.49

$

Usually ships in 3-6 days

0

19

MTD 43035

Compression Spring

$

$

Currently unavailable

20

MTD 714-0121

Cotter Pin 1/8" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

21

MTD 43081

Fl.-Wash. 5/16" I.D.

$

$

Currently unavailable

22

MTD 23116

Push Bar Channel

$

$

Currently unavailable

23

MTD 10513

Pivot Support Bracket

$

$

Not available

24

MTD 10521

Lift Link

$

$

Not available

25

MTD 09625

Channel Pivot Shaft
(Superseded to 738-0638)

$

$

Not available

26

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

27

MTD 14773

Support Bracket Ass'y.

$

$

Not available

28

MTD 736-0169

L.-Wash. 3/8 I.D. *

$3.99

$

In Stock, Qty 20+

0

29

MTD 712-0798

Hex Nut 3/8-1 Thd.*

$4.49

$

In Stock, Qty 12

0

30

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

31

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

32

MTD 23115

Support Bracket

$

$

Currently unavailable
