190-435-190 - White Outdoor Twin Bag Grass Collector Mounting Kit (1994) Twin Bag Grass Collector Mounting Kit Parts Diagram

Twin Bag Grass Collector Mounting Kit

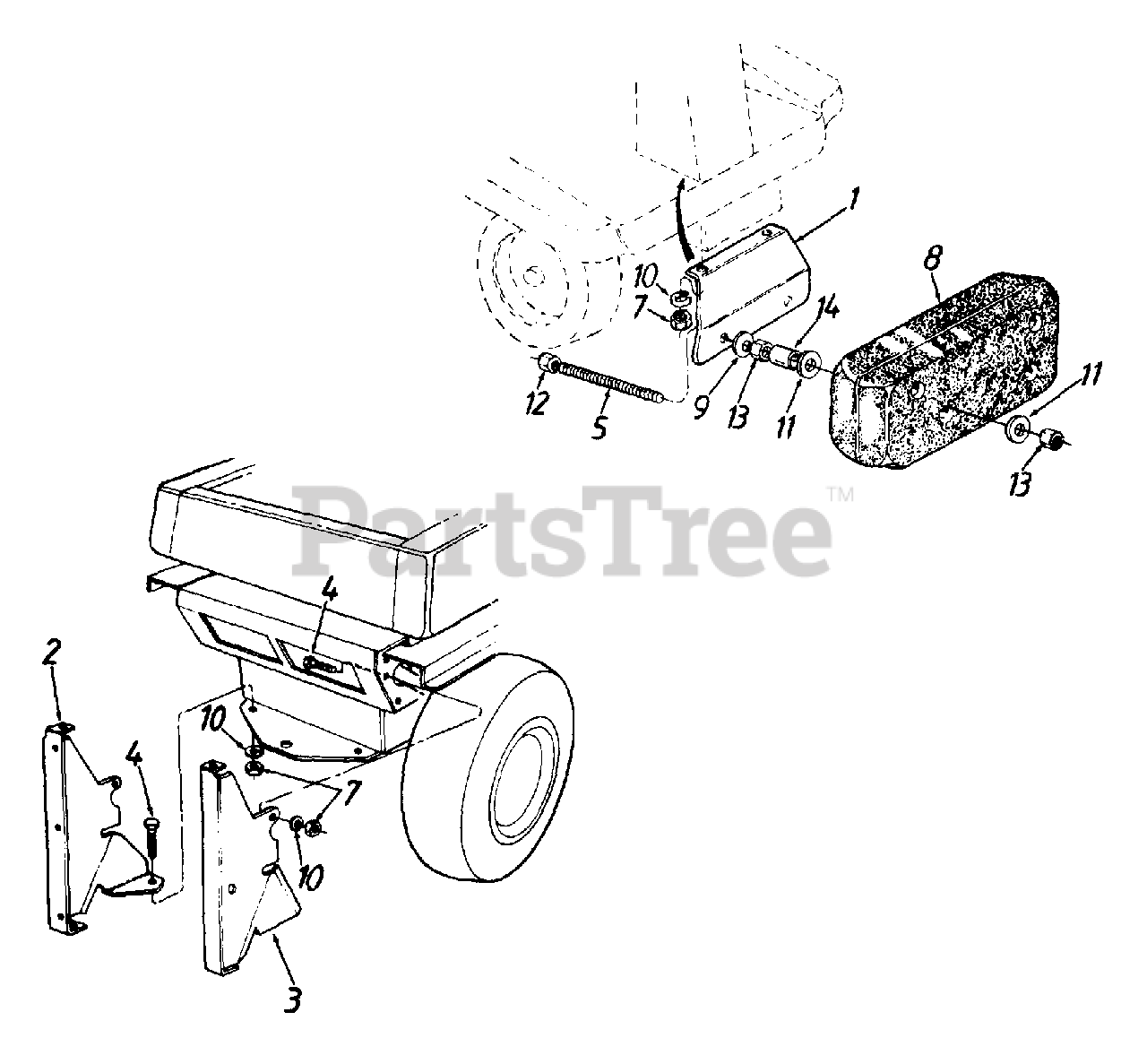

Twin Bag Grass Collector Mounting Kit Parts Diagram

  • Title

1

MTD 15540

Counterweight Support Brkt.

Note: NLA

Variations

MTD 15540-0637

No Longer Available BRKT.-SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 15970A

Catcher Support Brkt. - R.H.

$

$

Not available

3

MTD 15971A

Catcher Support Brkt. - L.H.

Note: NLA

$

$

Not available

4

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

5

MTD 711-3373

Stud 7/16-14 x 5-5/8" Lg.

$

$

Not available

7

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 723-0367

Front Counterweight

Note: NLA

$

$

Not available

9

MTD 736-0439

Bell-Wash. 7/16" I.D.

$3.49

$

Usually ships in 3-6 days

0

10

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0322

Fl-Wash. .45" I.D.

$9.49

$

In Stock, Qty 8

0

12

MTD 712-0290

Hex L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

13

MTD 912-3019

Hex Nut 7/16-14 Thd.
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

14

MTD 750-0499

Spacer

$23.99

$

Usually ships in 3-6 days

0
