190-182-190 - Toro 46" Twin Bagger (SN: 260000001 - 260999999) (2006) 46 INCH TWIN BAGGER ASSEMBLY Parts Diagram

46" Twin Bagger

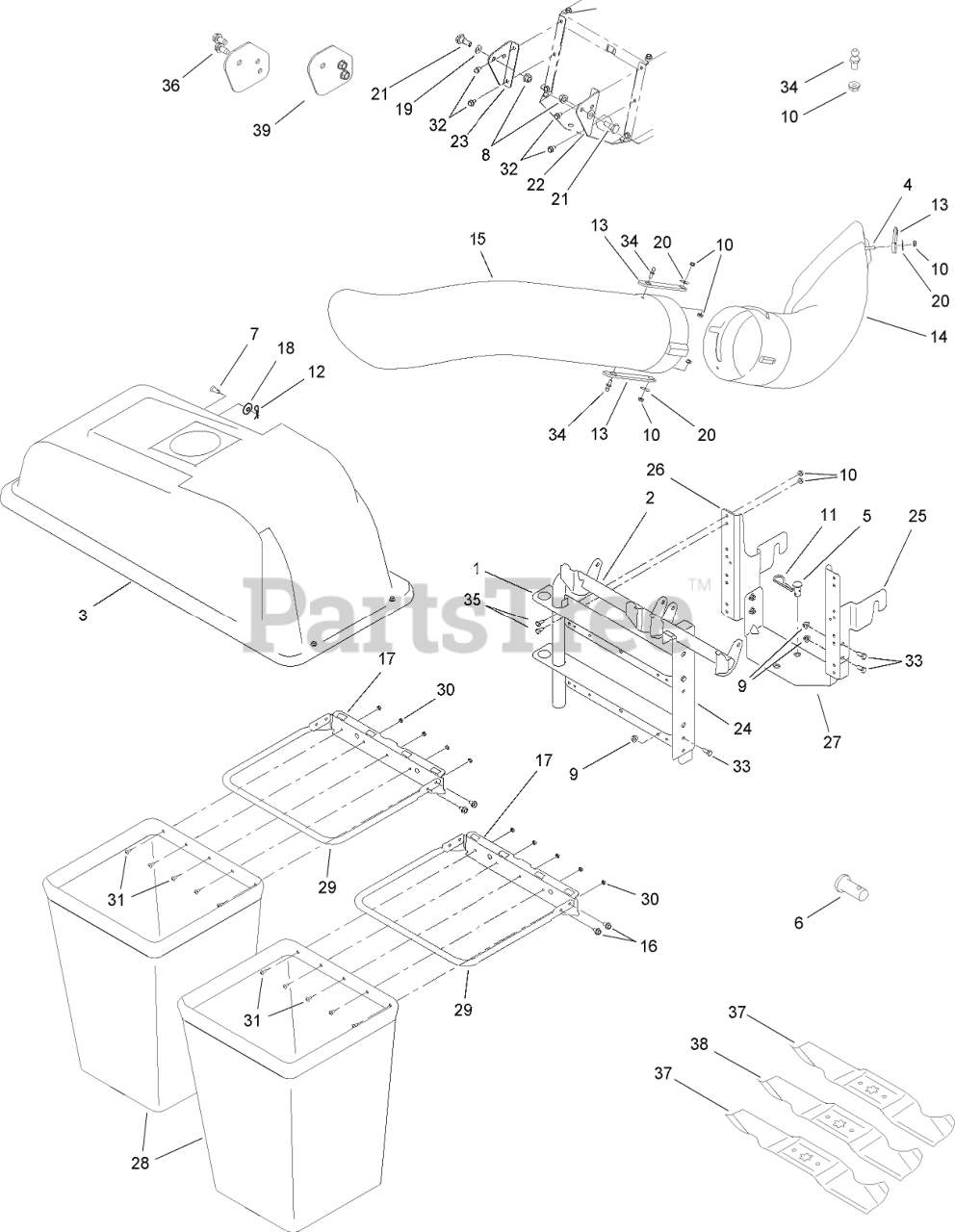

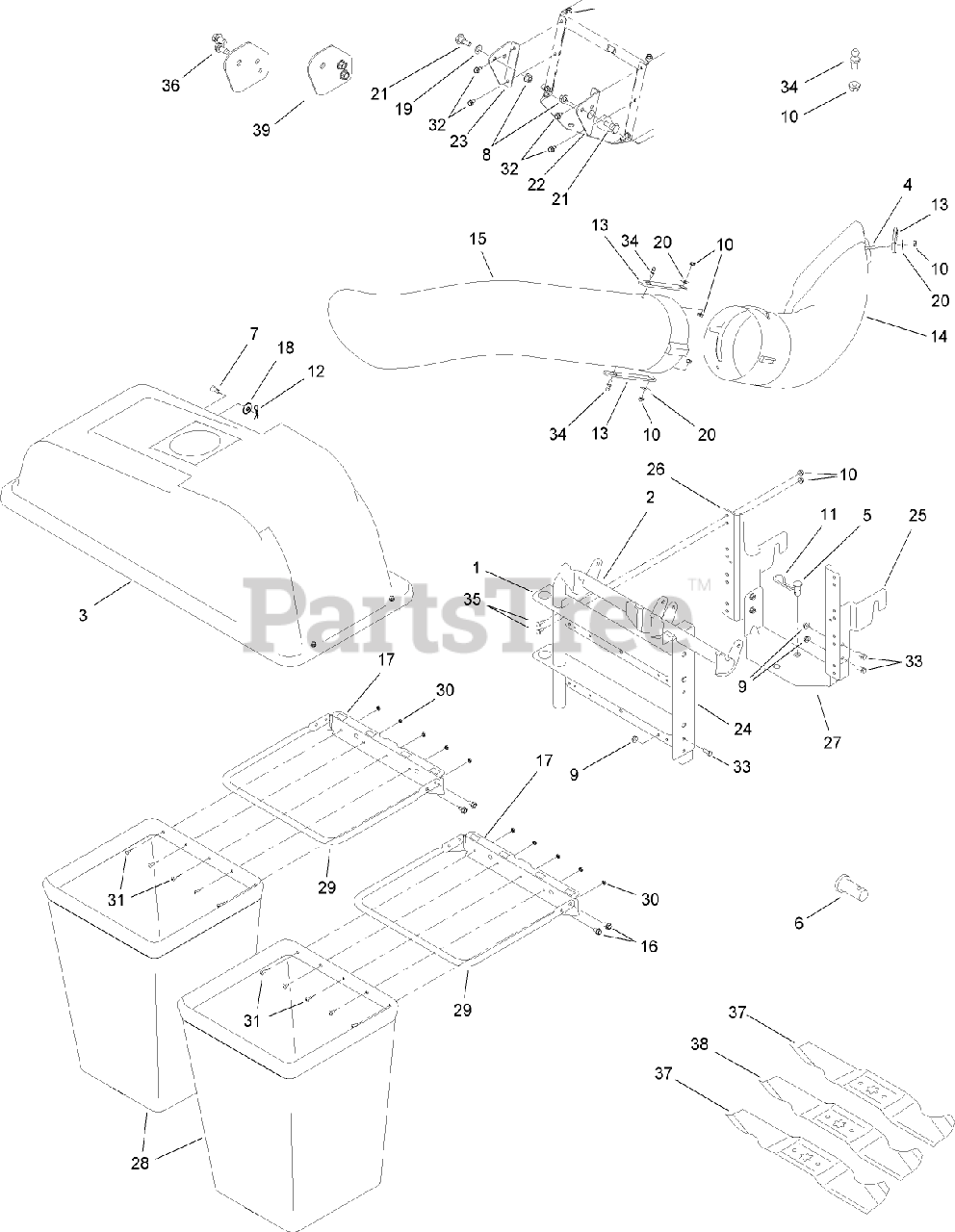

46 INCH TWIN BAGGER ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0939

BRACKET-MOUNTING

$

$

Not available

2

Toro 112-0941

SUPPORT TUBE ASM

$

$

Not available

3

Toro 112-1200

COVER ASM (DOUBLE)

$

$

Not available

4

Toro 112-1078

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

5

Toro 112-1244

PIN-CLEVIS

$23.99

$

Usually ships in 3-6 days

0

6

Toro 112-1097

PIN-CLEVIS

$

$

Not available

7

Toro 112-1245

PIN-CLEVIS

$

$

Not available

8

Toro 112-0859

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 2 left!

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0657

NUT-LOCK, FLANGE

$

$

Not available

11

Toro 112-1246

CLIP-HAIRPIN

$

$

Not available

12

Toro 112-0398

PIN-CLICK

$27.99

$

In Stock, only 4 left!

0

13

Toro 112-0996

STRAP-CHUTE

$16.99

$

Usually ships in 3-6 days

0

14

Toro 112-1147

CHUTE-DISCHARGE

$

$

Not available

15

Toro 112-1005

TUBE-ELBOW, CATCHER

$

$

Not available

16

Toro 112-0556

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

17

Toro 112-0940

BRACKET-BAG, HANGER

$96.99

$

Usually ships in 3-6 days

0

18

Toro 112-1166

WASHER-BELL

$

$

Not available

19

Toro 112-0481

WASHER-BELL

$6.99

$

Usually ships in 3-6 days

0

20

Toro 112-1173

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

21

Toro 112-1021

BOLT-SHOULDER

$

$

Not available

22

Toro 112-1202

BRACKET-SUPPORT, RH

$28.99

$

Usually ships in 3-6 days

0

23

Toro 112-1203

BRACKET-SUPPORT, LH

$

$

Not available

24

Toro 112-1043

BRACKET-SUPPORT

$

$

Not available

25

Toro 112-1044

BRACKET-CATCHER, RH

$

$

Not available

26

Toro 112-1045

BRACKET-CATCHER, LH

$

$

Not available

27

Toro 112-1046

BRACKET-CROSS, SUPPORT

$

$

Not available

28

Toro 112-1198

BAG-GRASS

$148.99

$

Usually ships in 3-6 days

0

29

Toro 112-1034

FRAME-CATCHER, BAG

$

$

Not available

30

Toro 112-1105

NUT-SEMS

$

$

Not available

31

Toro 112-1076

SCREW-TRUSS, MACHINE

$

$

Not available

32

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

33

Toro 112-1090

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

34

Toro 112-0484

PIN-CATCHER, GRASS

$14.99

$

Usually ships in 3-6 days

0

35

Toro 112-1083

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

36

Toro 112-0906

SCREW-HWHTF

$6.99

$

Usually ships in 3-6 days

0

37

Toro 112-1184

BLADE (2 IN 1 STAR, 16.28 INCH)

$63.99

$

Usually ships in 3-6 days

0

38

Toro 112-1185

BLADE (2 IN 1 STAR, 14.88 INCH)

$63.99

$

Usually ships in 3-6 days

0

39

Toro 112-1204

BRACKET-SUPPORT, CATCHER

$

$

Not available
