190-181-190 - White Outdoor Triple Bag Grass Collector (2003) General Assembly Parts Diagram

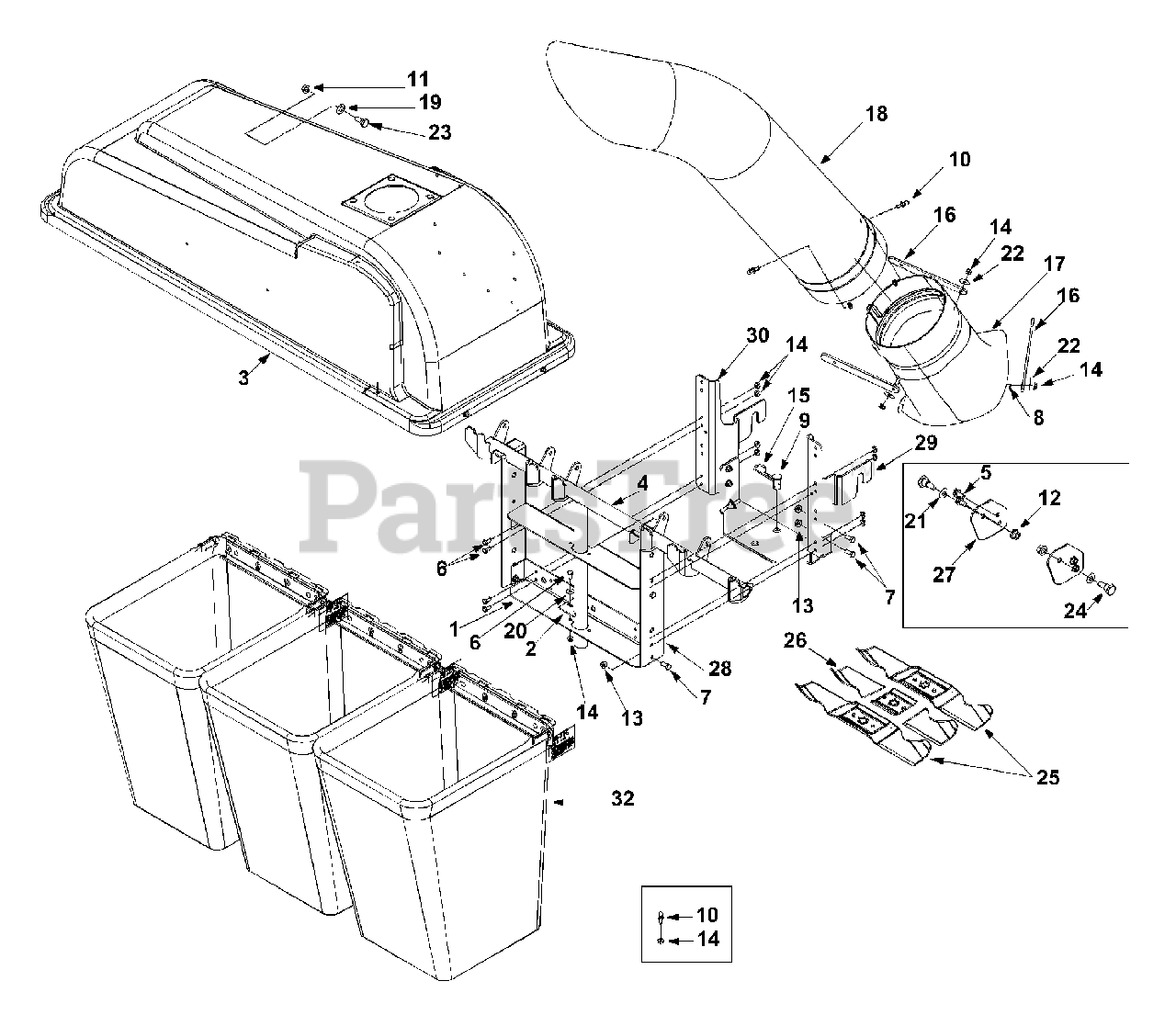

Triple Bag Grass Collector

General Assembly Parts Diagram

  • Title

1

White Outdoor 17200A

Support Bracket

Variations

White Outdoor 17200A-0637

BRACKET. CATCHER MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 17247

Adapter Bracket: Support Tube
(Superseded to 17247-0637)

Variations

White Outdoor 17247-0637

BRACKET.-TUBING ADAPTER - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

3

White Outdoor 664-04018

Grasscatcher Cover Assembly

$

$

Not available

4

White Outdoor 689-00002

Support Assembly: Grasscatcher
(Superseded to 689-00002-0637)

Variations

White Outdoor 689-00002-0637

SUPPORT ASSY-GRASSCATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 710-0623

TT Screw 3/8-16 x 0.75

$4.49

$

In Stock, only 2 left!

0

6

White Outdoor 710-0751

Hex Screw 1/4-20 x 0.620

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-3008

Hex Screw 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3015

Hex Screw 1/4-20 x 0.75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 7

0

10

White Outdoor 711-04069

Grasscatcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

11

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0459

Lock Nut 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

15

White Outdoor 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

16

White Outdoor 723-04008

Chute Strap
(Superseded to 723-04008A)

$9.99

$

In Stock, Qty 20+

0

17

White Outdoor 731-04159

Discharge Chute Elbow
(Superseded to 931-04159A)

$113.99

$

In Stock, only 3 left!

0

18

White Outdoor 731-0926B

Catcher Tube

$142.99

$

In Stock, only 1 left!

0

19

White Outdoor 736-0253

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0270

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0407

Bell Washer

$3.99

$

In Stock, Qty 12

0

22

White Outdoor 736-3092

Flat Washer

$3.99

$

In Stock, Qty 9

0

23

White Outdoor 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

24

White Outdoor 738-1020

Shoulder Screw

$7.49

$

Usually ships in 3-6 days

0

25

White Outdoor 742-0644

Blade 16.28"
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

26

White Outdoor 742-0645

Blade 14.88"
(Superseded to 942-0645)

$25.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-04138

Catcher Support Bracket

Variations

White Outdoor 783-04138-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

White Outdoor 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

29

White Outdoor 783-0673

Catcher Support Bracket RH
(Superseded to 783-0673B-0637)

Variations

White Outdoor 783-0673-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

30

White Outdoor 783-0764

Catcher Support Bracket LH
(Superseded to 783-0764B-0637)

Variations

White Outdoor 783-0764-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

?31

White Outdoor 783-0765

Cross Bracket: Support
(Superseded to 783-0765-0637)

Variations

White Outdoor 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

32

White Outdoor 764-0251

Bag Assembly: Triple Bagger
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0
