190-180 - Troy-Bilt Twin Rear Bagger (2006) General Assembly Parts Diagram

Twin Rear Bagger

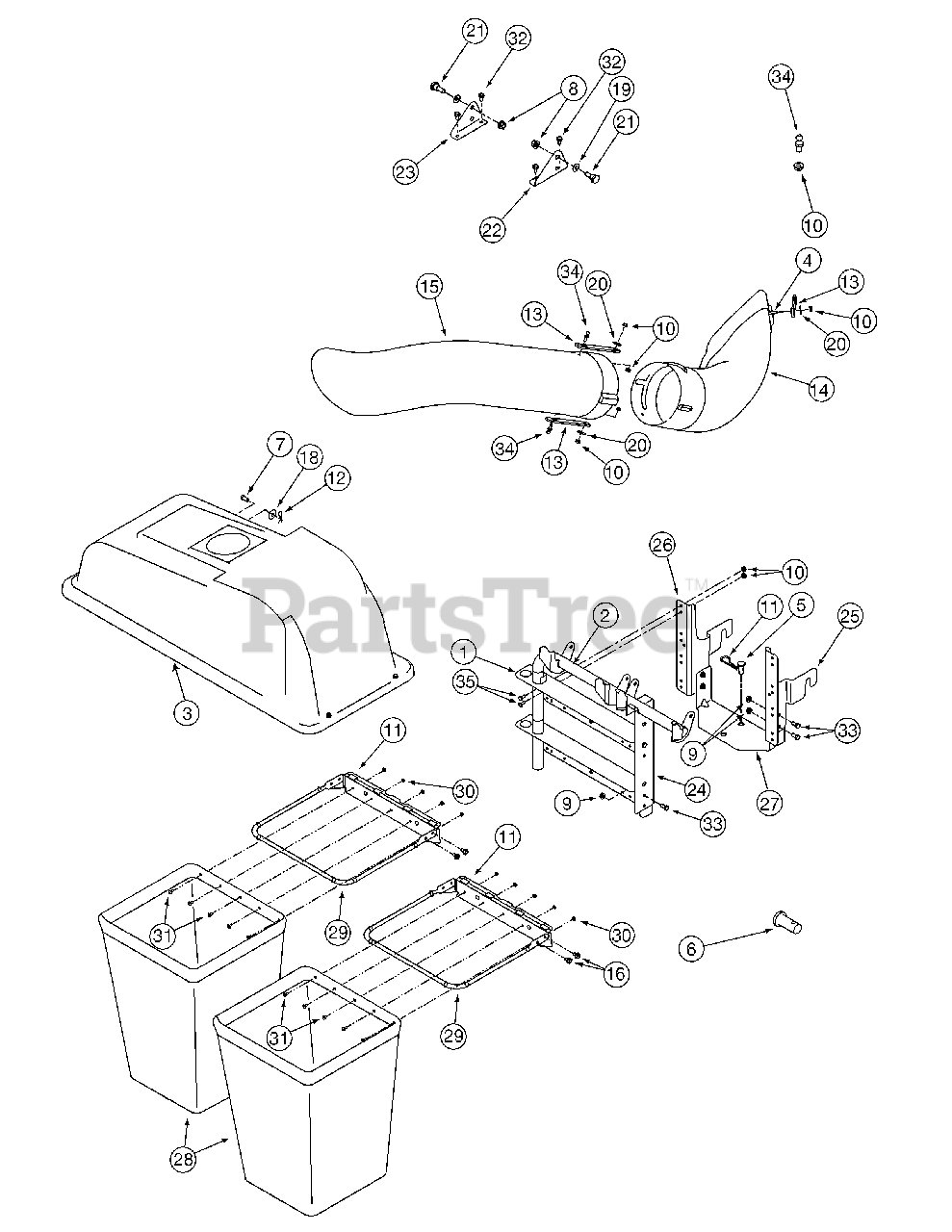

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 16587D

Support Bracket: Bagger
(Superseded to 16587D-0637)

Variations

Troy-Bilt 16587D-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 16592

Support Tube Assembly
(Superseded to 16592-0637)

Variations

Troy-Bilt 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

3

MTD 664-04017

Grass catcher Cover Assembly

$

$

Not available

4

Troy-Bilt 710-0597

Screw 1/4-20 x 1"

$3.99

$

In Stock, Qty 13

0

5

Troy-Bilt 711-0309A

Clevis Pin

$12.99

$

In Stock, Qty 6

0

6

Troy-Bilt 711-0310

Clevis Pin (on older model tractors)

$10.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 711-1421

Clevis Pin

$7.49

$

In Stock, only 3 left!

0

8

Troy-Bilt 712-0459

Lock Nut 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-0117

Hairpin Clip

$4.49

$

In Stock, Qty 16

0

12

Troy-Bilt 714-0145

Click Pin

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 731-04153

Discharge Chute 38"/42" Bag
(Superseded to 731-04153A)

$86.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 731-0899E

Chute Tube

$108.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 710-0604A

Self-Tapping Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 16591A

Bag Hanger Bracket
(Superseded to 16591A-0637)

Variations

Troy-Bilt 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0407

Bell Washer

$3.99

$

In Stock, Qty 11

0

20

Troy-Bilt 736-3092

Flat Washer

$3.99

$

In Stock, Qty 6

0

21

Troy-Bilt 738-1020

Shoulder Screw

$7.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-04132A

Supt. Bracket RH
(Superseded to 983-04132A)

$

$

Not available

23

MTD 783-04137A

Supt. Bracket LH
(Superseded to 983-04137A)

$

$

Not available

24

Troy-Bilt 783-0601

Mounting Bracket
(Superseded to 783-0601-0637)

Variations

Troy-Bilt 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 783-0673A

Mounting Bracket RH
(Superseded to 783-0673B-0637)

Variations

Troy-Bilt 783-0673A-0637

Catcher Support Bracket, RH - POWDER BLACK (0637)

$68.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 783-0764A

Mounting Bracket LH
(Superseded to 783-0764B-0637)

Variations

Troy-Bilt 783-0764A-0637

Catcher Support Bracket, LH - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 783-0765

Bracket: Cross Support
(Superseded to 783-0765-0637)

Variations

Troy-Bilt 783-0765-0637

Cross Support Bracket - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 764-0221

Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 749-0701A

Grass Bag Frame
(Superseded to 749-0701A-0637)

Variations

Troy-Bilt 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 712-0272

Hex Sems Nut, #10-24

$3.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-0473

Machine Screw, , #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

32

Troy-Bilt 710-0726

AB Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-3008

Hex Head Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 711-04069

Grass Catcher Pin 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0751

Hex Head Screw 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0
