190-180-190 - Toro 42" Twin Bagger (SN: 260000001 - 260999999) (2006) 42 INCH TWIN BAGGER ASSEMBLY Parts Diagram

42" Twin Bagger

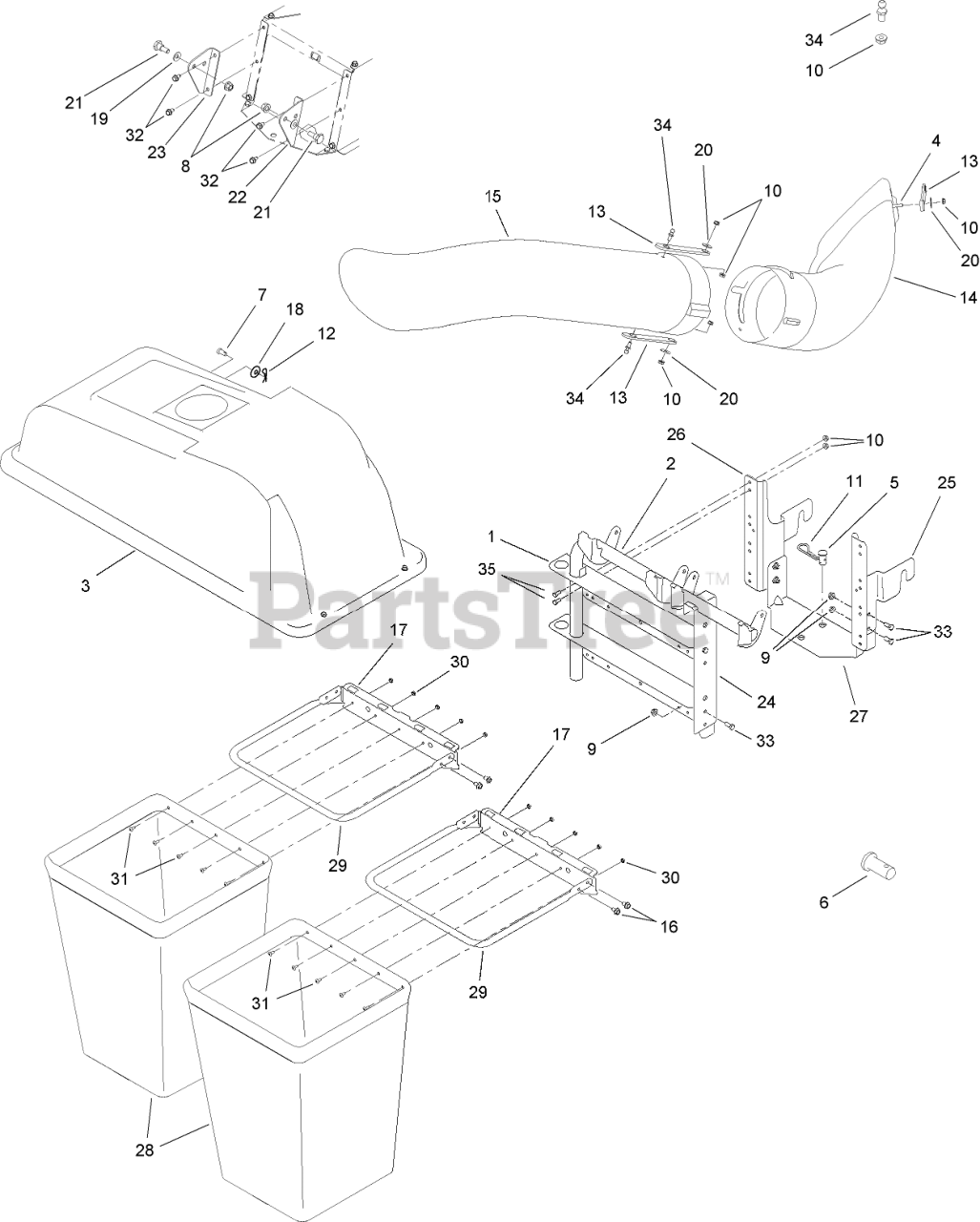

42 INCH TWIN BAGGER ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0939

BRACKET-MOUNTING

$

$

Not available

2

Toro 112-0941

SUPPORT TUBE ASM

$

$

Not available

3

Toro 112-1200

COVER ASM (DOUBLE)

$

$

Not available

4

Toro 112-1078

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

5

Toro 112-1244

PIN-CLEVIS

$20.99

$

Usually ships in 3-6 days

0

6

Toro 112-1097

PIN-CLEVIS

$

$

Not available

7

Toro 112-1245

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

8

Toro 112-0859

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$6.49

$

In Stock, only 3 left!

0

10

Toro 112-0657

NUT-LOCK, FLANGE

$

$

Not available

11

Toro 112-1246

CLIP-HAIRPIN

$

$

Not available

12

Toro 112-0398

PIN-CLICK

$24.99

$

In Stock, only 4 left!

0

13

Toro 112-0996

STRAP-CHUTE

$15.99

$

Usually ships in 3-6 days

0

14

Toro 112-1146

CHUTE-DISCHARGE

$158.99

$

Usually ships in 3-6 days

0

15

Toro 112-1003

TUBE-CHUTE, UPPER

$168.99

$

Usually ships in 3-6 days

0

16

Toro 112-0556

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

17

Toro 112-0940

BRACKET-BAG, HANGER

$78.99

$

Usually ships in 3-6 days

0

18

Toro 112-1166

WASHER-BELL

$

$

Not available

19

Toro 112-0481

WASHER-BELL

$5.49

$

Usually ships in 3-6 days

0

20

Toro 112-1173

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

21

Toro 112-1021

BOLT-SHOULDER

$

$

Not available

22

Toro 112-1202

BRACKET-SUPPORT, RH

$22.99

$

Usually ships in 3-6 days

0

23

Toro 112-1203

BRACKET-SUPPORT, LH

$

$

Not available

24

Toro 112-1043

BRACKET-SUPPORT

$

$

Not available

25

Toro 112-1044

BRACKET-CATCHER, RH

$

$

Not available

26

Toro 112-1045

BRACKET-CATCHER, LH

$

$

Not available

27

Toro 112-1046

BRACKET-CROSS, SUPPORT

$

$

Not available

28

Toro 112-1198

BAG-GRASS

$134.99

$

Usually ships in 3-6 days

0

29

Toro 112-1034

FRAME-CATCHER, BAG

$

$

Not available

30

Toro 112-1105

NUT-SEMS

$

$

Not available

31

Toro 112-1076

SCREW-TRUSS, MACHINE

$

$

Not available

32

Toro 112-0472

SCREW-HH, TAP

$6.99

$

In Stock, only 1 left!

0

33

Toro 112-1090

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

34

Toro 112-0484

PIN-CATCHER, GRASS

$12.99

$

Usually ships in 3-6 days

0

35

Toro 112-1083

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0
