190-110-190 - White Outdoor Side Discharge Grass Collector (1996) Grass Catcher Parts Diagram

Side Discharge Grass Collector

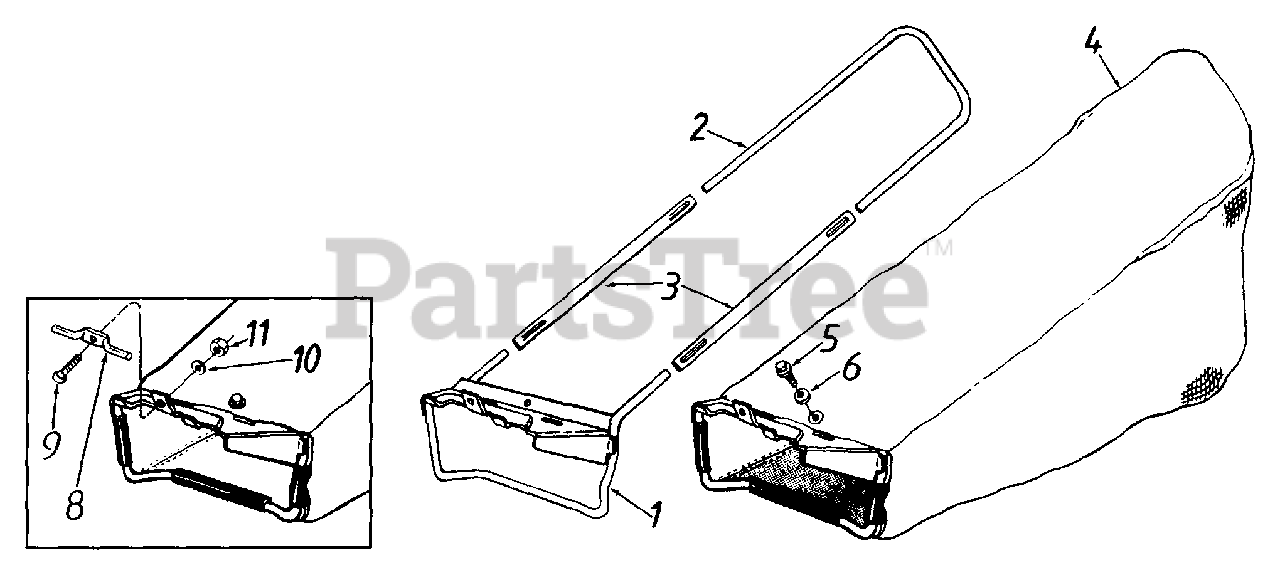

Grass Catcher Parts Diagram

  • Title
1

MTD 16839C-0637

Frame - Lower Ass'y.

$55.99

$

Usually ships in 3-6 days

0

2

MTD 747-0575-0637

Frame - Upper

$15.99

$

Usually ships in 3-6 days

0

3

MTD 749-0774-0637

Tube Support

$19.99

$

Usually ships in 3-6 days

0

4

MTD 964-0271

Grass Bag

$115.99

$

Usually ships in 3-6 days

0

5

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

8

MTD 747-0870

Grass Bag Hook

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

11

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0
