190-103-190 - White Outdoor Twin Bag Grass Collector (1994) Twin Bag Grass Collector Parts Diagram

Twin Bag Grass Collector

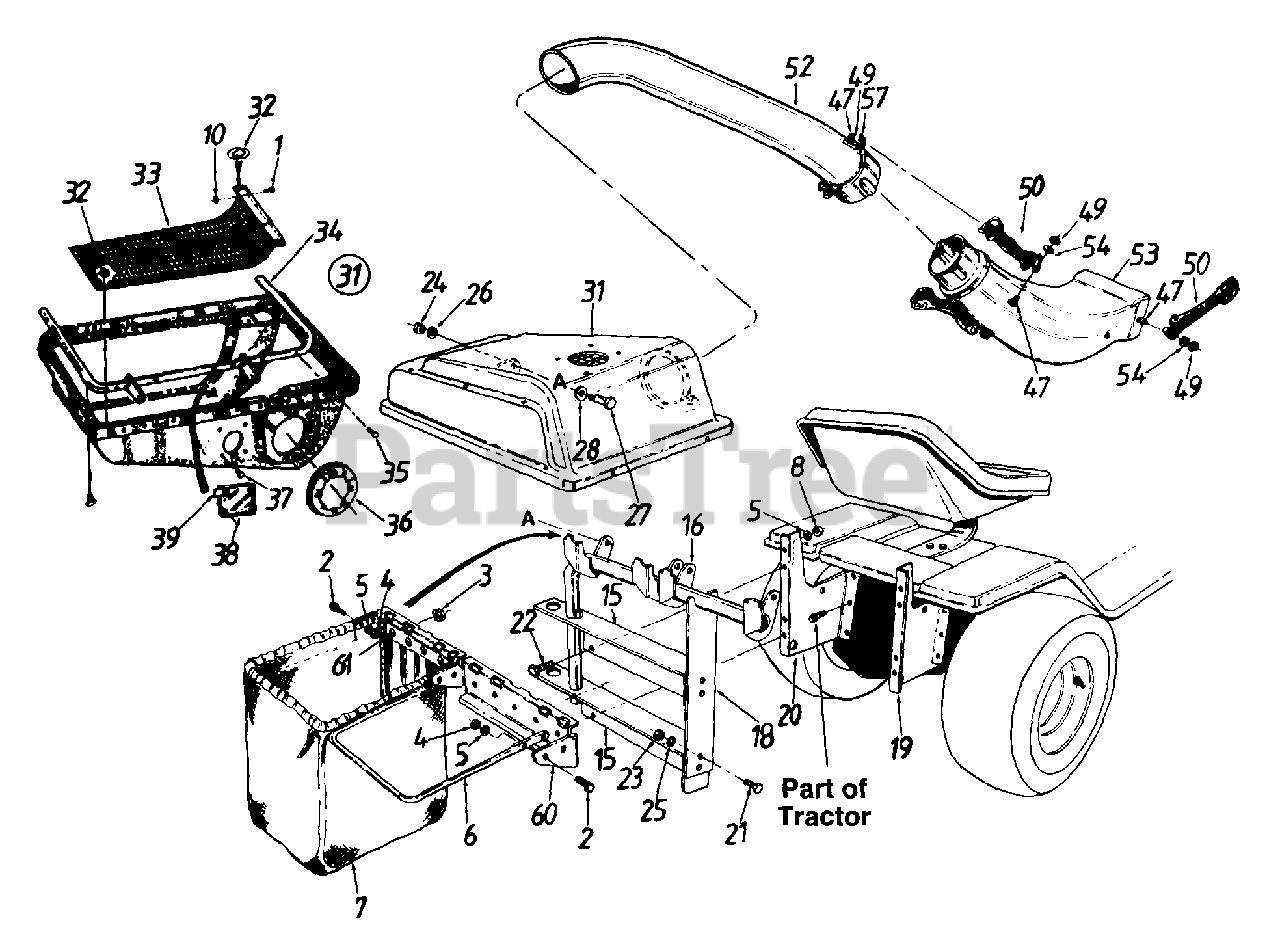

Twin Bag Grass Collector Parts Diagram

  • Title

1

MTD 928-0123

Pop Rivet .188 Dia.

$4.99

$

Usually ships in 3-6 days

0

2

MTD 710-0281

Hex Bolt 1/4-28 x .88"

$6.49

$

Usually ships in 3-6 days

0

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

4

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

5

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

6

MTD 749-0701A-0637

Catcher Bag Frame

$65.99

$

Usually ships in 3-6 days

0

7

MTD 964-0221

Grass Catcher Bag

$73.99

$

In Stock, Qty 20+

0

8

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

10

MTD 936-0400

Flat Wash. 1/4" I.D.
(Superseded to 736-0400)

$

$

Not available

15

MTD 16587D-0637

Catcher Support Tube Mtg. Brkt.

$82.99

$

Usually ships in 3-6 days

0

16

MTD 16592-0637

Catcher Support Tube Ass'y.

$194.99

$

Usually ships in 3-6 days

0

18

MTD 783-0601-0637

Catcher Latch and Support Brkt.

$35.99

$

Usually ships in 3-6 days

0

19

MTD 16611C-0637

Grass Catcher Support Brkt.- R H.

$52.99

$

Usually ships in 3-6 days

0

20

MTD 16610C-0637

Grass Catcher Support Brkt.- L.H.

$

$

Not available

21

MTD 710-3008

Hex Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.- Grade 5

$3.99

$

In Stock, Qty 20+

0

23

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

25

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

26

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

27

MTD 938-0380

Shld. Bolt 3/8-16 x .50" Dia.
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

28

MTD 936-0253

Bell-Wash. .505" I.D. x 1.0" O.D.
(Superseded to 736-0253)

$

$

Not available

31

MTD 16594A

Grass Catcher Cover Ass'y. (063)

Note: NLA

$

$

Not available

31

MTD 631-0007

Grass Catcher Cover Ass'y. (103)

Note: NLA

$

$

Not available

32

MTD 726-0258

Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

33

MTD 16847A

Screen Ass'y.

Note: NLA

Variations

MTD 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 16596-0637

Hinge Brkt. Ass'y.

$105.99

$

Usually ships in 3-6 days

0

35

MTD 710-0896

Hex AB-Tap Scr. 1/4 x .62"

$4.49

$

In Stock, Qty 20+

0

36

MTD 723-0412

Seal - 7" (063)

$32.99

$

Usually ships in 3-6 days

0

36

MTD 723-0413

Seal - 8" (103)

$30.99

$

In Stock, only 2 left!

0

37

MTD 710-0351

Truss B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 731-0824A

Plastic Plate

Note: NLA

$

$

Not available

39

MTD 712-0147

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

47

MTD 710-0751

Hex Bolt 1/4-20 x .625"

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

50

MTD 923-0383

Retainer Strap Ass'y.

$15.99

$

In Stock, Qty 5

0

52

MTD 731-0899E

Catcher Tube (063)

$108.99

$

In Stock, only 2 left!

0

52

MTD 731-0926B

Catcher Tube (103)

$142.99

$

In Stock, only 1 left!

0

53

MTD 731-0827D

Discharge Chute (063)

$143.99

$

In Stock, only 1 left!

0

53

MTD 731-0925C

Discharge Chute (103)

$162.99

$

In Stock, only 2 left!

0

54

MTD 936-0175

L-Wash. .27" I.D.

$3.99

$

In Stock, only 3 left!

0

57

MTD 96606

Retainer Hook Brkt.

$7.49

$

In Stock, Qty 7

0

60

MTD 16591A-0637

Bag Frame Hanger Brkt.

$65.99

$

Usually ships in 3-6 days

0

61

MTD 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!
