190-096-190 - White Outdoor 38" Mulching Kit (1993) 38-Inch & 42-Inch Mulching Kits Parts Diagram

38" Mulching Kit

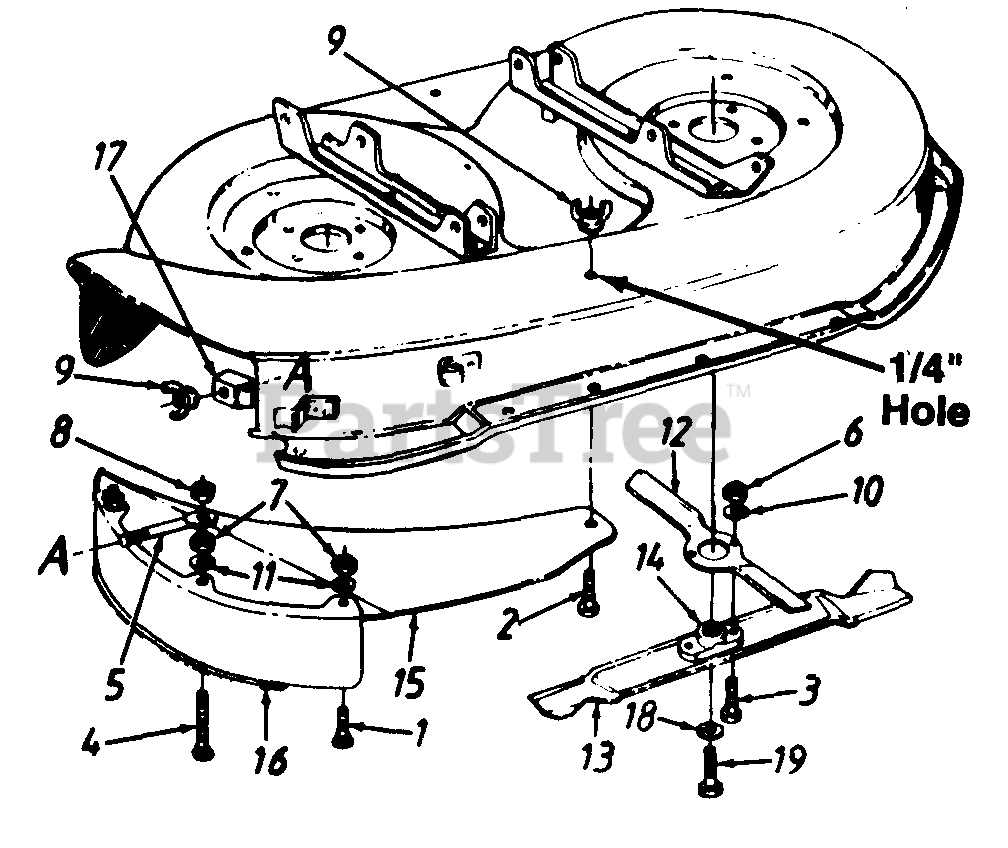

38-Inch & 42-Inch Mulching Kits Parts Diagram

  • Title

1

MTD 710-0134

Carriage Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-3029

Hex Bolt 7/16-20 x 1.25" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 12

0

4

MTD 710-0932A

Carriage Bolt 1/4-20 x 1" Lg.

$3.99

$

In Stock, only 4 left!

0

5

MTD 711-0957

Retaining Bolt

$6.49

$

Usually ships in 3-6 days

0

6

MTD 712-0378

Hex Nut 7/16-20 Thd.

$6.99

$

Usually ships in 3-6 days

0

7

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

8

MTD 912-0291

Hex L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

9

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

10

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

11

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

12

MTD 942-0539

Mulching Blade 12.5"

$

$

Not available

13

MTD 942-0537

Mulching Blade 19.38"

Note: (096)

$29.99

$

Usually ships in 3-6 days

0

13

MTD 942-0538

Mulching Blade 21.2"

Note: (097)

$31.99

$

Usually ships in 3-6 days

0

14

MTD 948-0365

Blade Adapter

$

$

Not available

15

MTD 783-0024-0637

Top Mulching Baffle

Note: (096)

$

$

Not available

15

MTD 783-0026-0637

Top Mulching Baffle

Note: (097)

$68.99

$

Usually ships in 3-6 days

0

16

MTD 783-0025-0637

Side Mulching Baffle

Note: (096)

$

$

Not available

16

MTD 783-0027-0637

Side Mulching Baffle

Note: (097)

$

$

Not available

17

MTD 783-0028-0637

Locking Bracket

$9.49

$

Usually ships in 3-6 days

0

18

MTD 936-0217

L-Wash. 3/8" I.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

19

MTD 710-1039

Hex Bolt 3/8-24 x 1" Lg. Gr. 8

$4.49

$

In Stock, Qty 20+

0
