190-093-190 - White Outdoor 30" Mulching Kit (1995) 30" Mulching Kit Parts Diagram

30" Mulching Kit

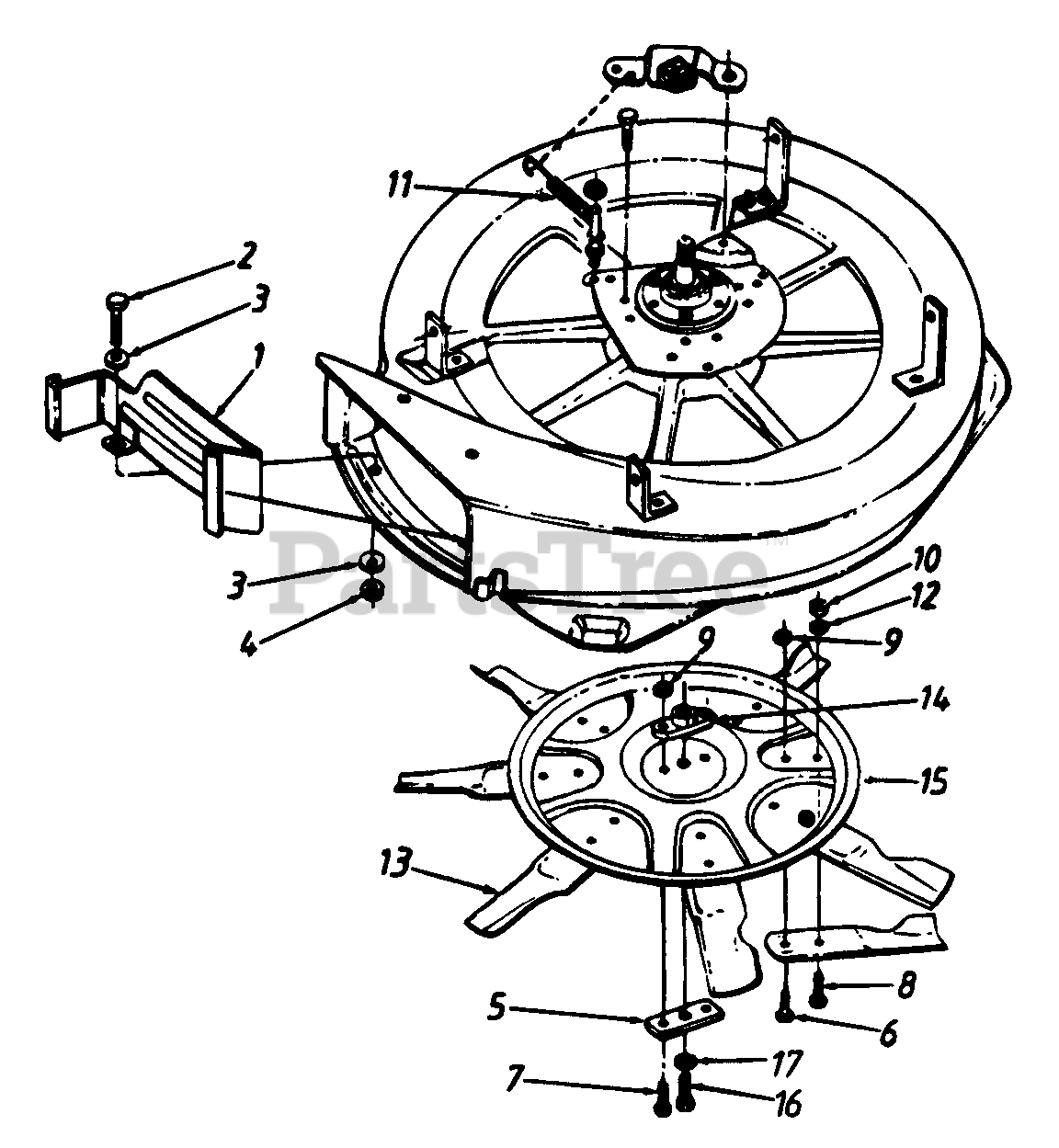

30" Mulching Kit Parts Diagram

  • Title

1

White Outdoor 703-2071

Mulching Baffle Ass'y.

$

$

Not available

2

White Outdoor 710-0621

Hex Bolt 5/16-18 x .5"
(Superseded to 710-3039)

$

$

Not available

3

White Outdoor 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0

4

White Outdoor 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 12626A

Blade Spacer

Variations

White Outdoor 12626A-0637

No Longer Available SPACER-BLADE - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 8

0

7

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.25" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 18

0

8

White Outdoor 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

10

White Outdoor 712-3061

Hex L-Nut 3/8-24 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 15

0

11

White Outdoor 732-0482

Extension Spring 3.2" Lg.

$

$

Not available

12

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .75"

$3.99

$

In Stock, only 3 left!

0

13

White Outdoor 742-0600

30" Mulching Blade Tip

$

$

Not available

14

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

15

783-0006

30" Mulching Blade Disc

$

$

Not available

16

White Outdoor 710-0879

Hex Bolt 3/8-24 x 1.25" Lg. (Gr. 8)

$3.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0
