190-093-190 - White Outdoor 30" Mulching Kit (1992) 30-Inch Mulching Kit Parts Diagram

30" Mulching Kit

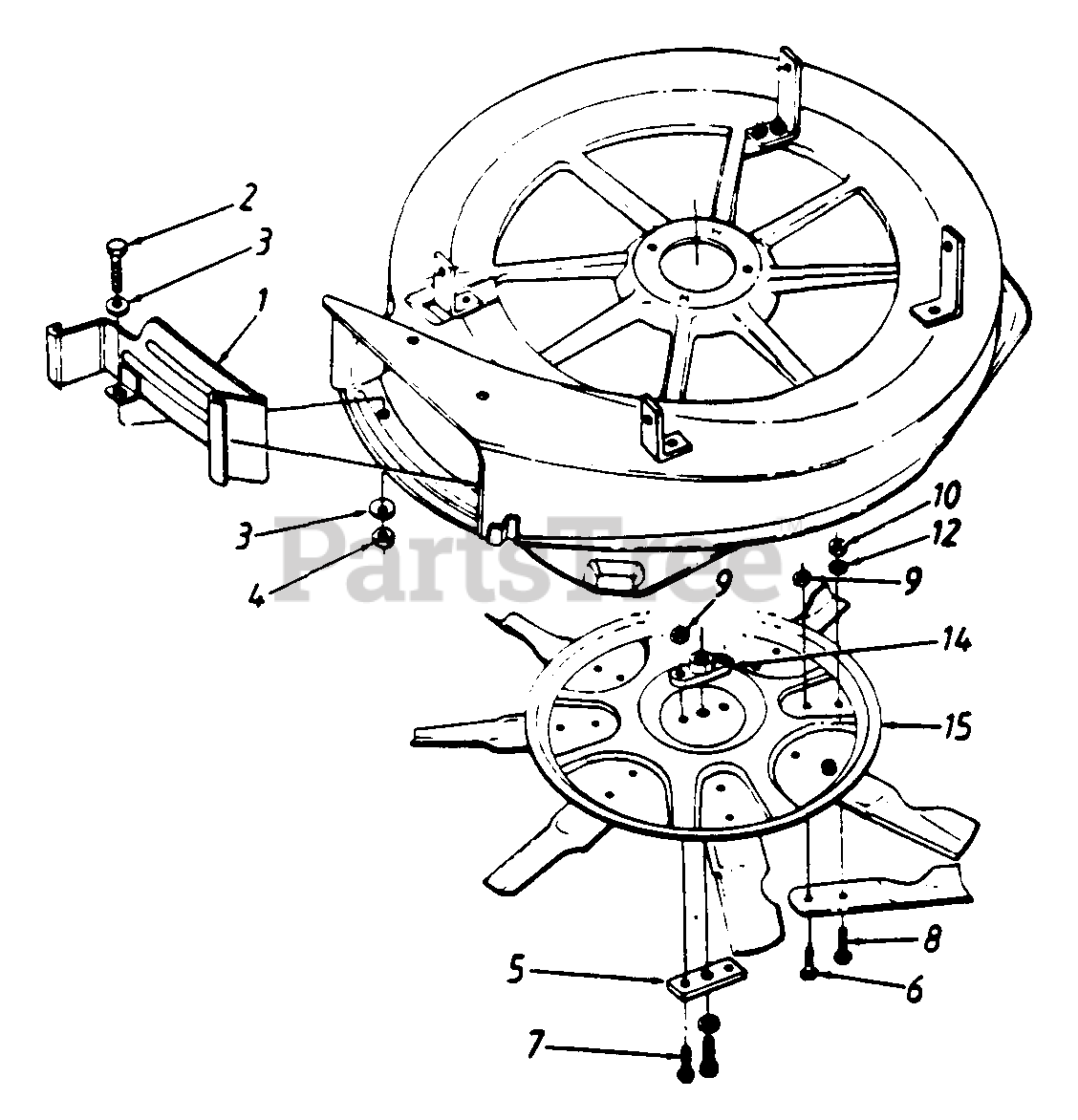

30-Inch Mulching Kit Parts Diagram

  • Title

1

MTD 703-2071

Mulching Baffle Ass'y.

Note: NLA

$

$

Not available

2

MTD 710-3039

Hex Bolt 5/16-18 x .5"

$

$

Not available

3

MTD 936-0425

Bell-Wash. .325" I.D.
(Superseded to 736-0425)

$

$

Not available

4

MTD 912-0429

Hex L-Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

5

MTD 12626A

Blade Spacer

Note: NLA

Variations

MTD 12626A-0637

No Longer Available SPACER-BLA - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0157

Hex Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 15

0

7

MTD 710-0672

Hex Bolt 5/16-24 x 1.25" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 16

0

8

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

9

MTD 912-0237

Hex L-Nut 5/16-24 Thd.
(Superseded to 712-0237)

$

$

Not available

10

MTD 912-3061

Hex L-Nut 3/8-24 Thd. (Gr. 5)
(Superseded to 712-3061)

$6.99

$

In Stock, Qty 14

0

11

MTD 732-0482

Extension Spring 3.2" Lg.

$

$

Not available

12

MTD 936-0185

Fl-Wash. .406" I.D. x .75"
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

13

MTD 742-0600

30" Mulching Blade Tip

Note: NLA

$

$

Not available

14

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 3 left!

0

15

MTD 783-0006

30" Mulching Blade Disc

Note: NLA

$

$

Currently unavailable
