190-093-000 - MTD Mulching Kit (1992) Mulching Kit Parts Diagram

Mulching Kit

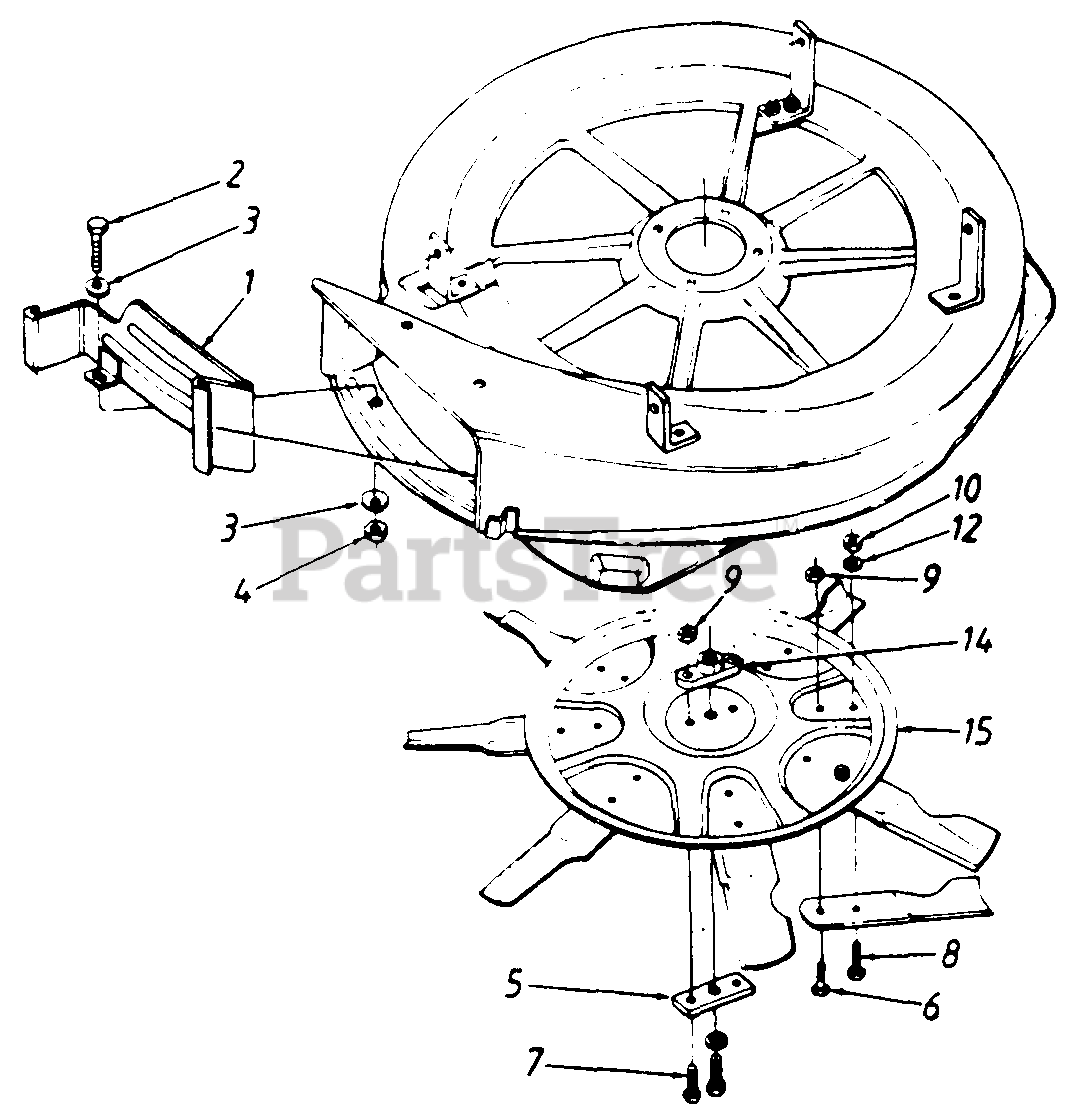

Mulching Kit Parts Diagram

  • Title

1

MTD 703-2071

Mulching Baffle Ass'y.

$

$

Not available

2

MTD 710-0621

Hex Bolt 5/16-18 x .5"
(Superseded to 710-3039)

$

$

Not available

3

MTD 736-0425

Bell-Wash. .325" I.D.

$4.99

$

In Stock, Qty 13

0

4

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

5

MTD 12626A

Blade Spacer

Variations

MTD 12626A-0637

No Longer Available SPACER-BLA - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0157

Hex Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 18

0

7

MTD 710-0672

Hex Bolt 5/16-24 x 1.25" Lg, (Gr. 5)

$4.49

$

In Stock, Qty 18

0

8

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

9

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

10

MTD 712-3061

Hex L-Nut 3/8-24 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 14

0

?11

MTD 732-0482

Extension Spring 3.2" Lg.

Note: (Not Shown)

$

$

Not available

12

MTD 736-0185

Fl-Wash..406" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

?13

MTD 742-0600

30" Mulching Blade Tip

$

$

Not available

14

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

15

MTD 783-0006

30" Mulching Blade Disc

$

$

Currently unavailable
