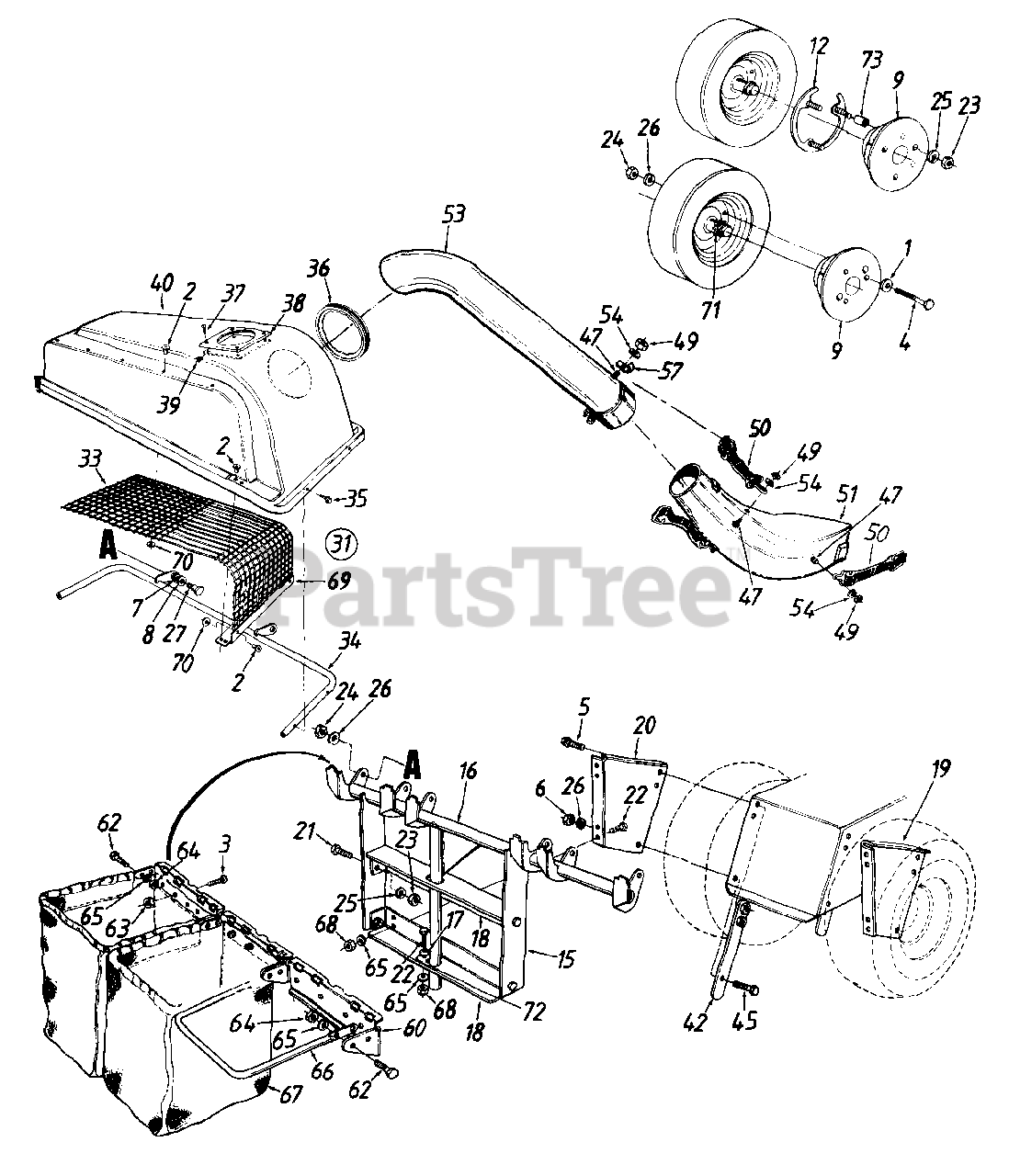

190-083-190 - White Outdoor Triple Bag Grass Collector (1993) Grass Collector Parts Diagram

Triple Bag Grass Collector

Grass Collector Parts Diagram

  • Title

1

White Outdoor 736-0300

Fl-Wash. .385" I.D.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 728-0123

Pop Rivet
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0192

Truss Mach. Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

4

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0604

Hex Wash. Hd. Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

7

White Outdoor 736-0255

Bell-Wash. .515" I.D.

$4.99

$

In Stock, only 3 left!

0

8

White Outdoor 736-0108

Fl-Wash. .510" I.D.

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 723-0414B

Wheel Weight

Variations

White Outdoor 723-0414B-0637

No Longer Available WEIGHT-WHEEL-21LB - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 16810

Wheel Weight Snap Ring

$

$

Not available

15

White Outdoor 17200

Catcher Support Tube Mtg. Brkt.
(Superseded to 17200A-0637)

$

$

Not available

16

White Outdoor 749-0750

Catcher Support Tube Ass'y.
(Superseded to 689-00002-0637)

Variations

White Outdoor 749-0750-0637

SUPPORT ASSY-GRASSCATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 736-0270

Bell-Wash. .265" I.D.

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 16593

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

$35.99

$

Usually ships in 3-6 days

0

19

White Outdoor 17190

Grass Catcher Support Brkt. - R.H.

Variations

White Outdoor 17190-0637

BRACKET-SUPPORT-RH - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 17191

Grass Catcher Support Brkt. - L.H.
(Superseded to 17191-0637)

Variations

White Outdoor 17191-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. - Grade 5

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

24

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0189

L-Wash. 3/8" I.D.
(Superseded to 736-0134)

$4.49

$

In Stock, Qty 10

0

27

White Outdoor 738-0380

Shld. Bolt 3/8-16 x .500" Dia.

$7.99

$

Usually ships in 3-6 days

0

?28

White Outdoor 736-0253

Bell-Wash. .505" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 17204

Grass Catcher Cover Ass'y. Comp.

$

$

Not available

33

White Outdoor 723-0407

Screen

$

$

Not available

34

White Outdoor 749-0747

Hinge Brkt. Ass'y.
(Superseded to 749-0747-0637)

Variations

White Outdoor 749-0747-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 710-1005

Hex Tap Scr. 1/4-20 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 723-0413

Tube Seal

$30.99

$

In Stock, only 2 left!

0

37

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

White Outdoor 731-0824A

Plastic Plate

$

$

Not available

39

White Outdoor 726-0244

Speed Nut
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

40

White Outdoor 731-0896

Grass Catcher Cover

$

$

Not available

42

White Outdoor 17192

Retainer Brkt. Ass'y.

Variations

White Outdoor 17192-0637

No Longer Available BRKT ASSY-RETAINER - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

47

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

49

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

50

White Outdoor 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

51

White Outdoor 731-0925

Discharge Chute
(Superseded to 731-0925C)

$162.99

$

In Stock, only 2 left!

0

53

White Outdoor 731-0926

Catcher Elbow Tube
(Superseded to 731-0926B)

$142.99

$

In Stock, only 1 left!

0

54

White Outdoor 736-0175

L-Wash. .270" I.D. x .57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 6

0

60

White Outdoor 17201

Bag Frame Hanger Brkt.
(Superseded to 17201A-0637)

Variations

White Outdoor 17201-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

62

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

63

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

64

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

66

White Outdoor 749-0745

Catcher Bag Frame
(Superseded to 749-0745A-0637)

$

$

Not available

67

White Outdoor 764-0251

Grass Catcher Bag
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0

68

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

69

White Outdoor 17202

Screen Mtg. Brkt.

Variations

White Outdoor 17202-0637

No Longer Available BRACKET SCREEN MTG - POWDER BLACK (0637)

$

$

Not available

$

$

70

White Outdoor 736-0400

Flat Wash. 1/4" I.D.

$5.49

$

In Stock, Qty 11

0

71

White Outdoor 722-0157

Foam Strip 1-1/8" x 1-1/2" x 3/8"

$4.49

$

Usually ships in 3-6 days

0

72

White Outdoor 17247

Support Tubing Adapter Brkt.
(Superseded to 17247-0637)

Variations

White Outdoor 17247-0637

BRACKET.-TUBING ADAPTER - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

73

White Outdoor 750-0527

Spacer

$

$

Not available
