190-081-190 - White Outdoor Convertible Rear Discharge Grass Catcher (1996) Grass Catcher Parts Diagram

Convertible Rear Discharge Grass Catcher

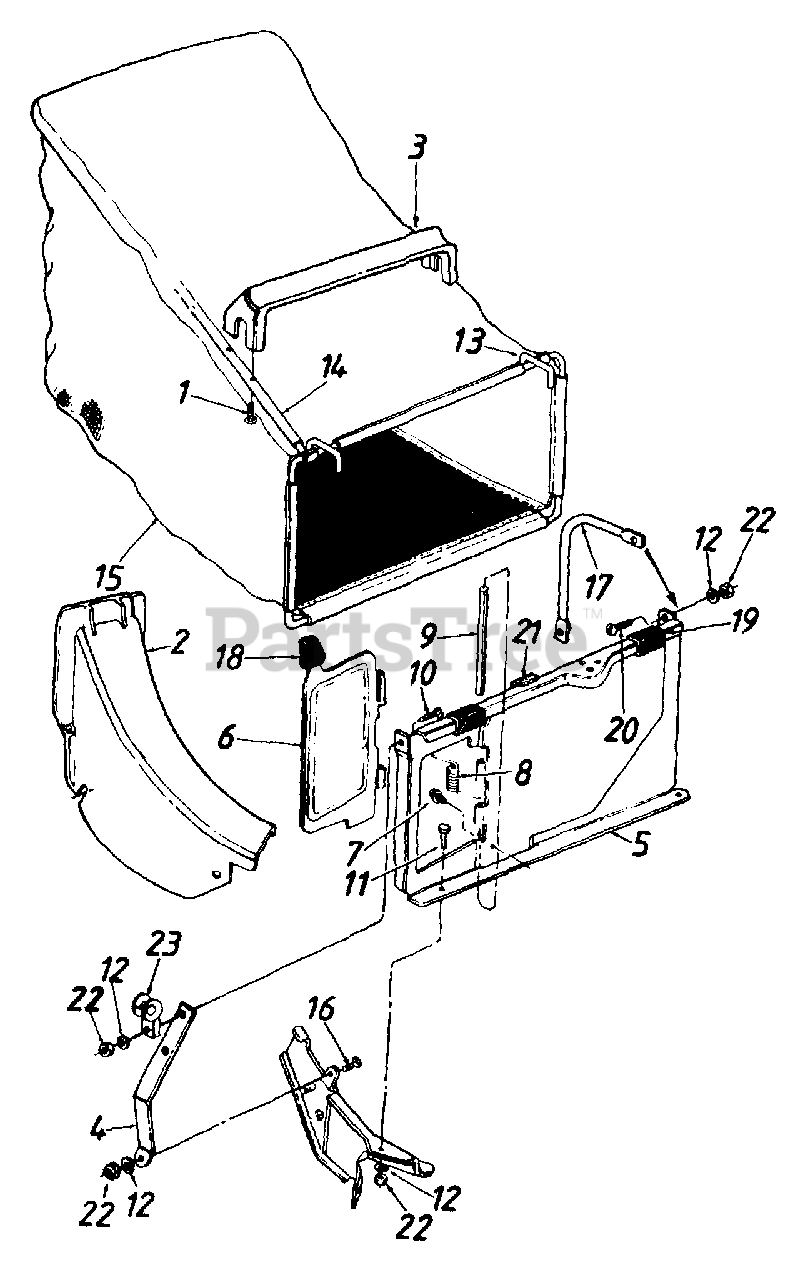

Grass Catcher Parts Diagram

  • Title
1

White Outdoor 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

2

White Outdoor 731-1023

Rear Discharge Chute Ass'y.

$

$

Not available

3

$

$

Not available

4

White Outdoor 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

White Outdoor 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

5

White Outdoor 16862

Catcher Panel Ass'y.

Variations

White Outdoor 16862-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16862-0637

No Longer Available PANEL ASSY-CATCHER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16862-0638

PANEL ASSY-CATCHER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16862-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 16862-0662

No Longer Available PANEL ASSY-CATCHER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16862-0665

No Longer Available PANEL ASSY-CATCHER - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

White Outdoor 17095

Discharge Door
(Superseded to 17095A-0637)

$

$

Not available

7

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

8

White Outdoor 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

$

$

Not available

10

White Outdoor 710-0255

Truss Mach. Scr. 1/4-20 x 3/4" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

12

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

White Outdoor 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

White Outdoor 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

14

White Outdoor 749-0764A

Rear Grass Catcher Frame
(Superseded to 749-0764A-0637)

Variations

White Outdoor 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

15

White Outdoor 764-0257

21" Rear Discharge Grass Bag
(Superseded to 964-0082)

$

$

Not available

16

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 749-0778

Catcher Panel Support Arm

$

$

Not available

18

White Outdoor 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

19

$3.99

$

Usually ships in 3-6 days

0

20

White Outdoor 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

21

$

$

Not available

22

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

$15.99

$

Usually ships in 3-6 days

0
