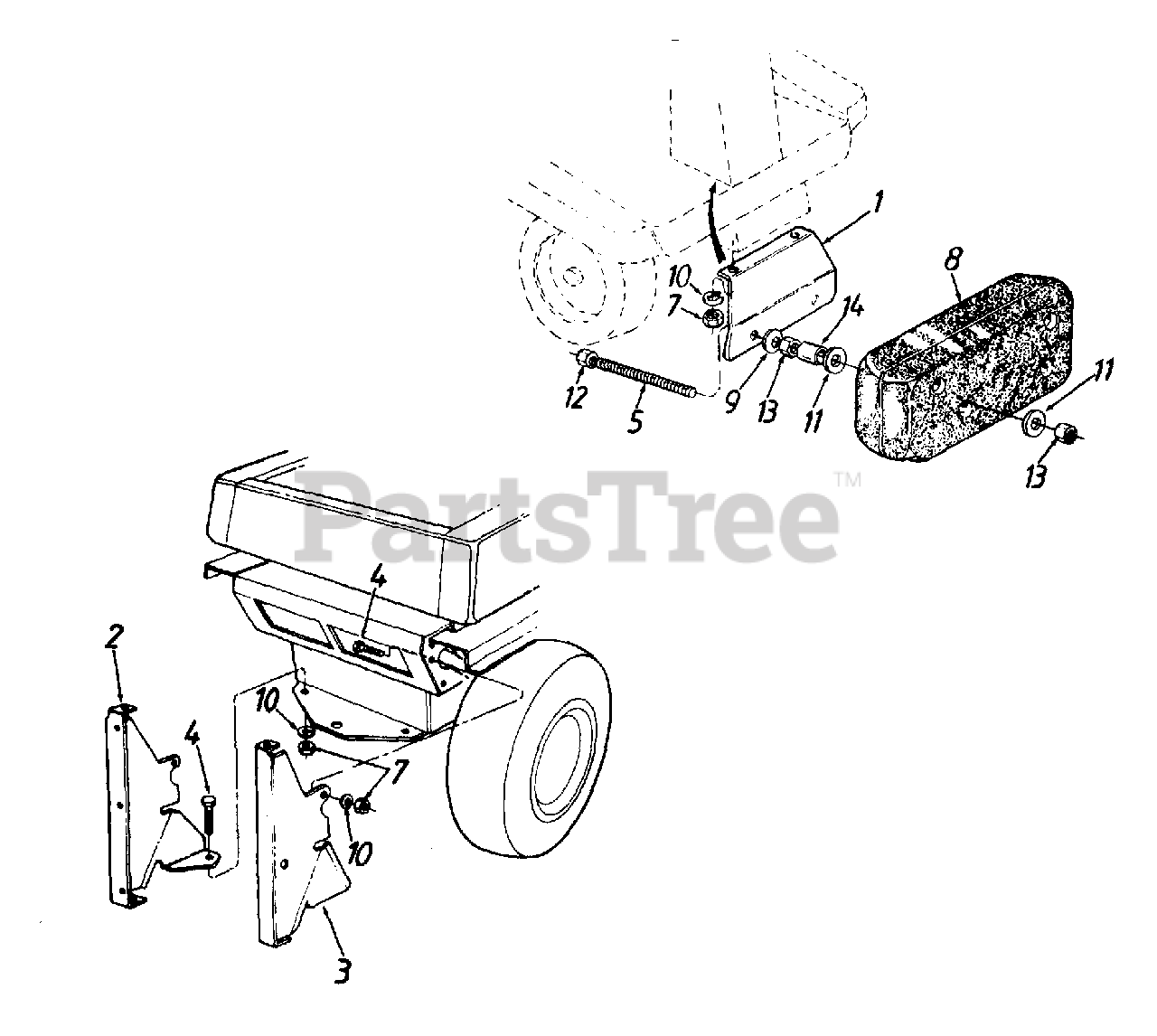

190-073-190 - White Outdoor Twin Bag Grass Collector (1996) Grass Collector Mounting Kit Parts Diagram

Twin Bag Grass Collector

Grass Collector Mounting Kit Parts Diagram

  • Title
1

White Outdoor 15540

Counterweight Support Brkt.

Variations

White Outdoor 15540-0637

No Longer Available BRKT.-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 15970A

Catcher Support Brkt. - R.H.

$

$

Not available

3

White Outdoor 15971A

Catcher Support Brkt. - L.H.

$

$

Not available

4

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 711-3373

Stud 7/16-14 x 5-5/8" Lg.

$

$

Not available

7

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 723-0367

Front Counterweight

$

$

Not available

9

White Outdoor 736-0439

Bell-Wash. 7/16" I.D.

$3.49

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0322

Fl-Wash. .45" I.D.

$9.49

$

In Stock, Qty 8

0

12

White Outdoor 712-0290

Hex L-Nut 7/16-14 Thd.

$4.99

$

In Stock, Qty 11

0

13

White Outdoor 712-3019

Hex Nut 7/16-14 Thd.

$6.99

$

In Stock, only 1 left!

0

$23.99

$

Usually ships in 3-6 days

0
