190-067-190 - White Outdoor Top Discharge Grass Catcher (1987) Grass Catcher Kit Parts Diagram

Top Discharge Grass Catcher

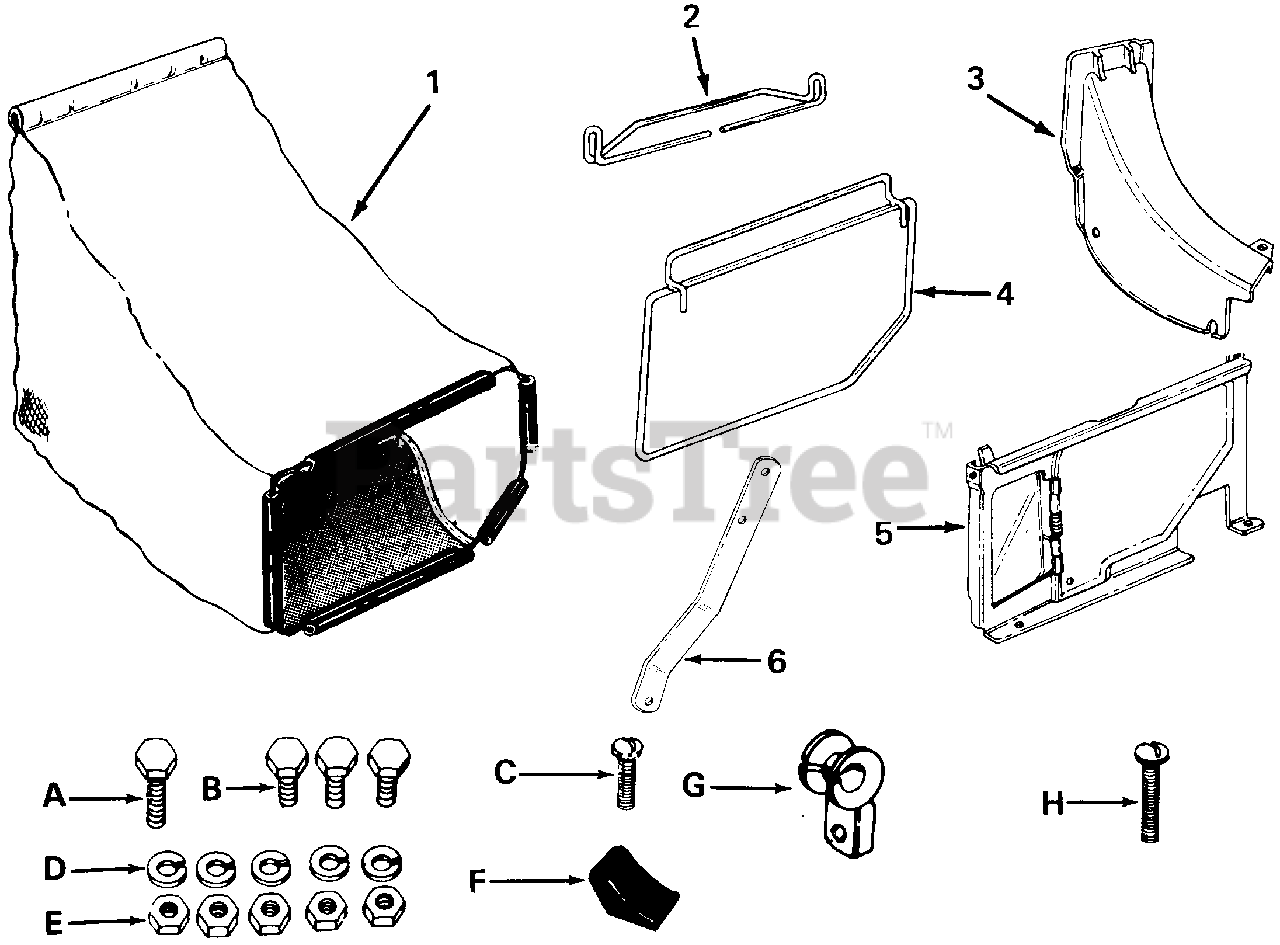

Grass Catcher Kit Parts Diagram

  • Title

1

MTD 764-0212

Grass Bag

Note: NLA

$

$

Currently unavailable

2

MTD 747-0495

Grass Catcher Handle

Note: NLA

$

$

Not available

3

MTD 731-0108

Top Discharge Chute

$9.49

$

In Stock, only 3 left!

0

4

MTD 747-0494

Front Catcher Frame

Note: NLA

$

$

Not available

5

MTD 16149

Top Catcher Panel

Note: NLA

$

$

Not available

6

MTD 16129A-0637

Panel Support Bracket

$11.99

$

Usually ships in 3-6 days

0

A

MTD 710-0751

Hex Bolt 1/4-20 x 5/8" Lg.*

$3.99

$

In Stock, Qty 20+

0

B

MTD 910-0289

Hex Bolt 1/4-20 x 1/2" Lg.* 3

$3.99

$

In Stock, only 3 left!

0

C

MTD 710-0286

Truss Machine Screw 1/4-20 x 1/2" Lg.*

$4.49

$

Usually ships in 3-6 days

0

D

MTD 936-0329

Lock Washer 1/4" I.D.* 5

$4.49

$

In Stock, Qty 11

0

E

MTD 912-0287

Hex Nut 1/4-20 Thread* 5

$4.99

$

Usually ships in 3-6 days

0

F

MTD 720-0208

Door Grip

Note: NLA

$

$

Not available

G

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

H

MTD 710-0166A

Truss Machine Screw 1/4-20 x 1.0" Lg.*

$7.49

$

In Stock, only 1 left!

0
