190-064-190 - White Outdoor Twin Bag Grass Collector (1995) Grass Collector Parts Diagram

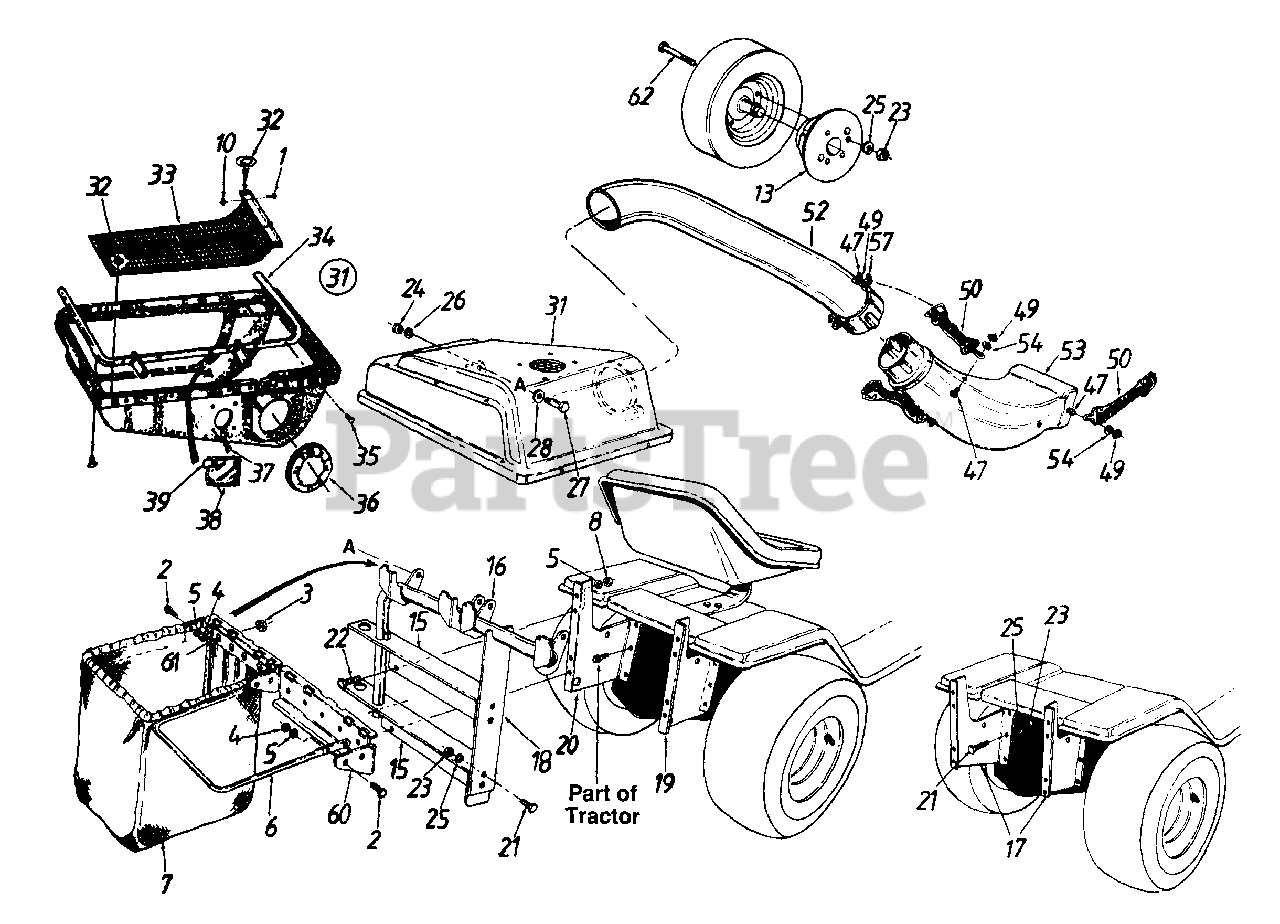

Twin Bag Grass Collector

Grass Collector Parts Diagram

  • Title

1

White Outdoor 728-0123

Pop Rivet .188 Dia.
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0281

Hex Bolt 1/4-28 x .88" Lg.

$6.49

$

Usually ships in 3-6 days

0

3

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

4

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

White Outdoor 749-0701

Catcher Bag Frame
(Superseded to 749-0701A-0637)

Variations

White Outdoor 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

7

White Outdoor 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 736-0400

Flat Wash. 1/4" I.D.

$5.49

$

In Stock, Qty 14

0

13

White Outdoor 723-0414B

Wheel Weight

Variations

White Outdoor 723-0414B-0637

No Longer Available WEIGHT-WHEEL-21LB - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 16587B

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

Variations

White Outdoor 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

16

White Outdoor 16592

Catcher Support Tube Ass'y.
(Superseded to 16592-0637)

Variations

White Outdoor 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

17

White Outdoor 16672A

Catcher Support Brkt.
(Superseded to 16672A-0637)

Variations

White Outdoor 16672A-0637

BRACKET-CATCHER - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

18

White Outdoor 16593A

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

Variations

White Outdoor 16593A-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

19

White Outdoor 16611C

Catcher Support Brkt. - R.H.
(Superseded to 16611C-0637)

Variations

White Outdoor 16611C-0637

Support Bracket, RR - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

20

16630C

Catcher Support Brkt. - L.H.

$

$

Not available

21

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" - Gr. 5

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

24

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 738-0380

Shld. Bolt 3/8-16 x .50" Dia.

$7.99

$

In Stock, only 1 left!

0

28

White Outdoor 736-0253

Bell-Wash. .505" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 16594A

Grass Catcher Cover Ass'y.

$

$

Not available

32

White Outdoor 726-0258

Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

33

White Outdoor 16847A

Screen Ass'y.

Variations

White Outdoor 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 16596

Hinge Brkt. Ass'y.
(Superseded to 16596-0637)

Variations

White Outdoor 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

35

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 723-0412

Seal

$32.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0351

Truss B-Tap Scr. #10 x .5"

$4.49

$

In Stock, only 2 left!

0

38

White Outdoor 731-0824A

Plastic Plate

$

$

Not available

39

White Outdoor 726-0244

Speed Nut
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0258

Hex Bolt 1/4-20 x .625"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

50

White Outdoor 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

52

White Outdoor 731-0899

Catcher Tube
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

53

White Outdoor 731-0827A

Discharge Chute
(Superseded to 731-0827D)

$143.99

$

In Stock, only 1 left!

0

54

White Outdoor 736-0175

L-Wash. .27" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

White Outdoor 16591

Bag Frame Hanger Brkt.
(Superseded to 16591A-0637)

Variations

White Outdoor 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0

62

White Outdoor 710-0190

Hex Bolt 5/16-18 x .4" Lg.

$7.99

$

Usually ships in 3-6 days

0
