190-064-190 - White Outdoor Twin Bag Grass Collector (1989) Grass Collector Double Bag Parts Diagram

Twin Bag Grass Collector

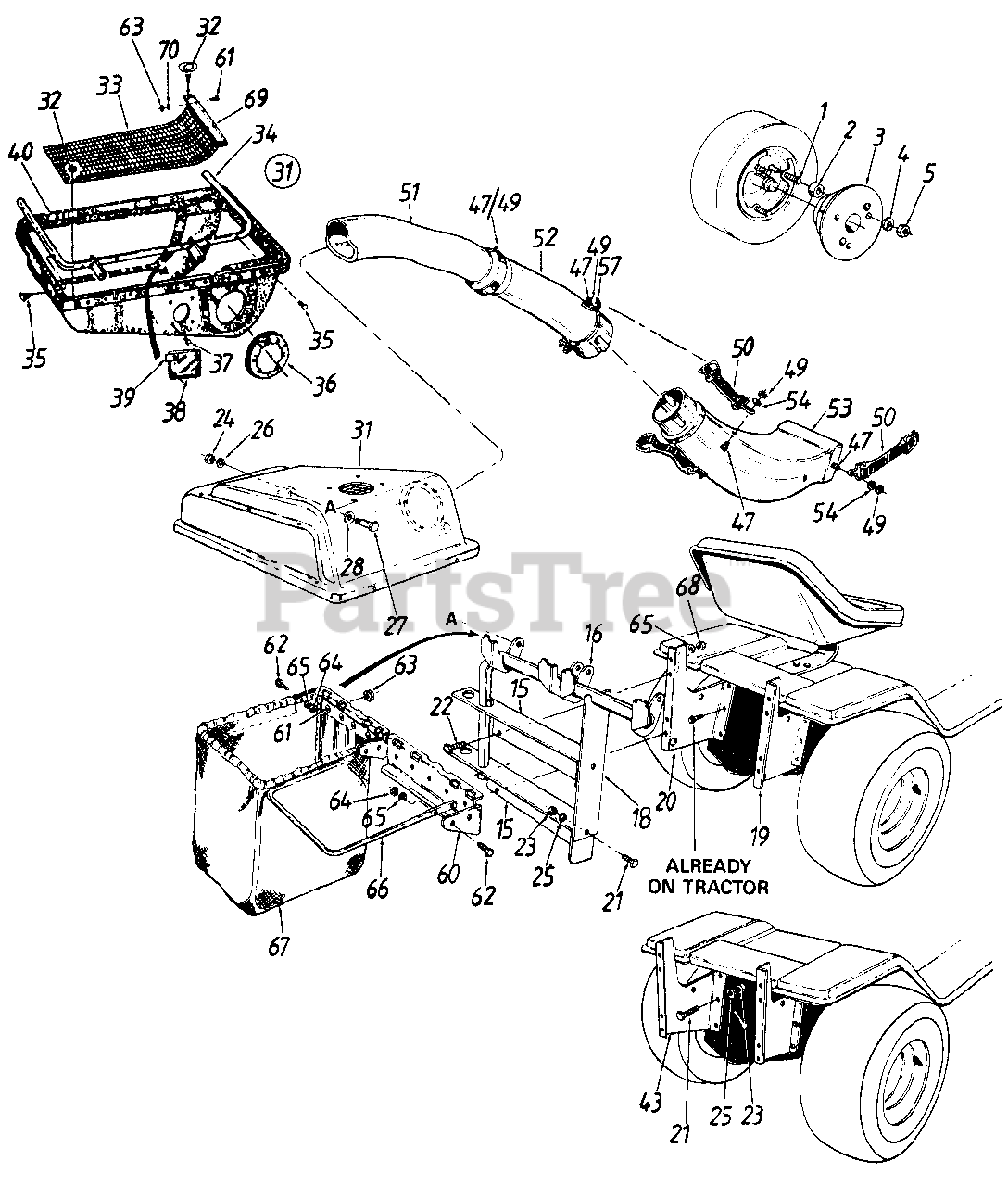

Grass Collector Double Bag Parts Diagram

  • Title

1

White Outdoor 16810

Wheel Weight Snap Ring

$

$

Not available

2

White Outdoor 750-0527

Spacer

$

$

Not available

3

White Outdoor 723-0414

Wheel Weight

$

$

Not available

4

White Outdoor 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0267

Hex Nut 5/16-18 Thread
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 16587A

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

$82.99

$

Usually ships in 3-6 days

0

16

White Outdoor 16588

Catcher Support Tube Assy.
(Superseded to 16592-0637)

$194.99

$

Usually ships in 3-6 days

0

18

White Outdoor 16593

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

$35.99

$

Usually ships in 3-6 days

0

19

White Outdoor 16610B

Grass Catcher Support Brkt.-R.H.
(Superseded to 16610C-0637)

$

$

Not available

20

White Outdoor 16611B

Grass Catcher Support Brkt.-L.H.
(Superseded to 16611C-0637)

$52.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg.-Grade 5

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

24

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 738-0380

Shld. Bolt 3/8-16 x .500" Dia.

$7.99

$

In Stock, only 1 left!

0

28

White Outdoor 736-0253

Bell.-Wash. .505" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 16594A

Grass Catcher Cover Ass'y.

$

$

Not available

32

White Outdoor 726-0258

Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

33

White Outdoor 723-0382A

Screen

$

$

Not available

34

White Outdoor 16596

Hinge Brkt. Ass'y.
(Superseded to 16596-0637)

Variations

White Outdoor 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

35

White Outdoor 710-1005

Hex Tap Scr. 1/4-20 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 723-0384

Seal
(Superseded to 723-0412)

$32.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 0 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

38

White Outdoor 731-0824

Plastic Plate

$

$

Not available

39

White Outdoor 726-0244

Speed Nut
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

40

White Outdoor 731-0821

Grass Catcher Cover

$

$

Not available

43

White Outdoor 16672A

Grass Catcher Support Brkt.
(Superseded to 16672A-0637)

Variations

White Outdoor 16672A-0637

BRACKET-CATCHER - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

49

White Outdoor 712-0324

Hex Ins. L.-Nut 1/4-20 0 Thd.

$3.99

$

In Stock, Qty 16

0

50

White Outdoor 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

51

White Outdoor 731-0825

Catcher Elbow

$

$

Not available

52

White Outdoor 731-0826

Catcher Tube
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

53

White Outdoor 731-0827A

Discharge Chute
(Superseded to 731-0827D)

$143.99

$

In Stock, only 1 left!

0

54

White Outdoor 736-0175

L.-Wash. .27" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

White Outdoor 16591

Bag Frame Hanger Brkt.
(Superseded to 16591A-0637)

Variations

White Outdoor 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0473

Truss Mach. Scr. #10-24 0 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

62

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 8

0

63

White Outdoor 712-0272

Hex Sems Nut #10-24 0 Thd.

$3.99

$

In Stock, only 1 left!

0

64

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.*

$6.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

White Outdoor 749-0701

Catcher Bag Frame
(Superseded to 749-0701A-0637)

Variations

White Outdoor 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

67

White Outdoor 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

68

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

69

White Outdoor 16595A

Screen Mtg. Brkt.

$

$

Not available

70

White Outdoor 736-0400

Flat Wash. 1/4" I.D.

$5.49

$

In Stock, Qty 14

0
