190-064-000 - MTD Grass Catcher Assembly (1987) Grass Collector Parts Diagram

Grass Catcher Assembly

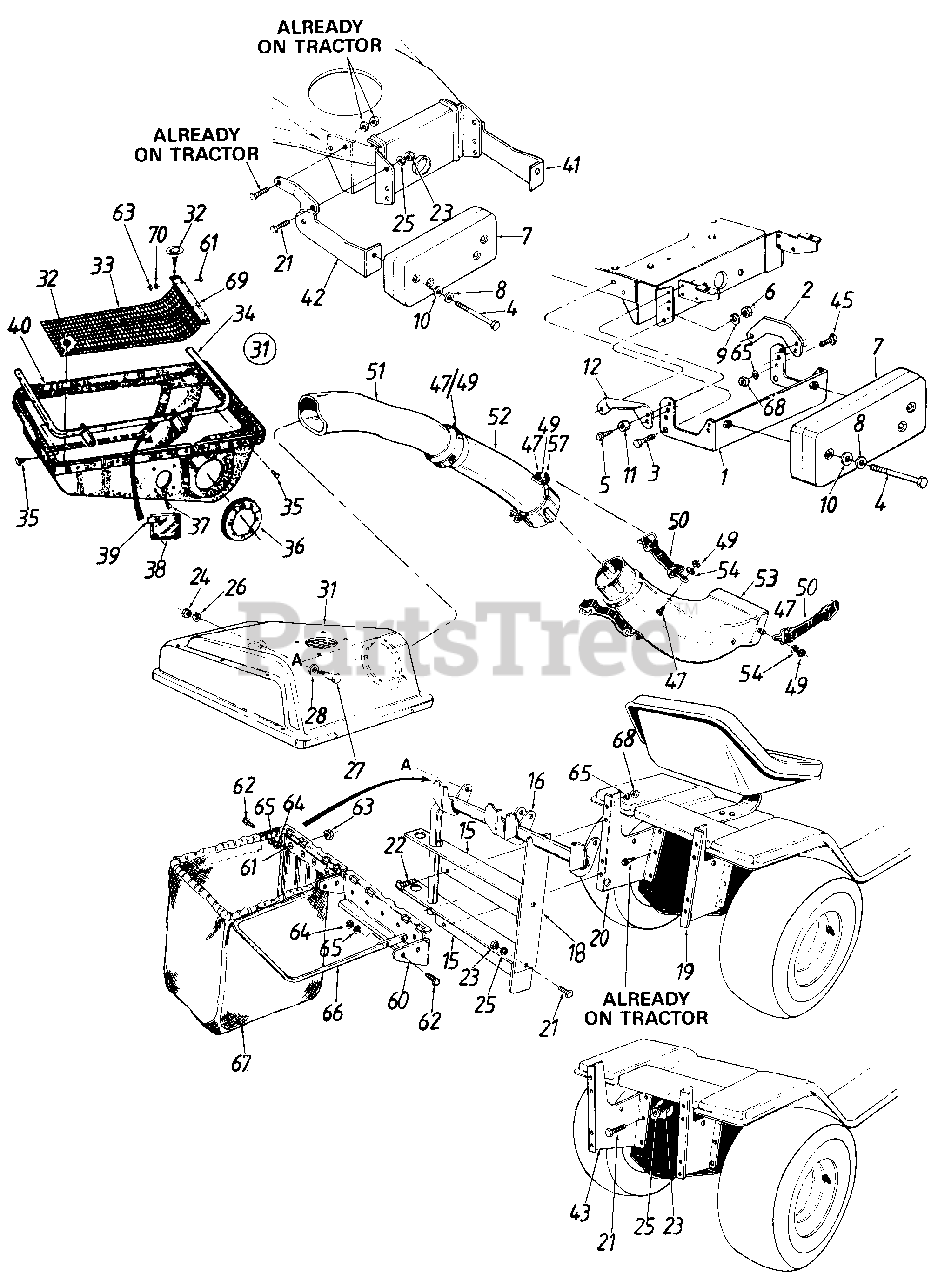

Grass Collector Parts Diagram

  • Title

1

MTD 15873

Weight Brkt. Ass'y.

Note: (Used with 38" Decks)

$

$

Not available

2

MTD 16024

Weight Brkt. Tie Strap - L.H.

Note: (Used with 38" Decks)

$

$

Not available

3

MTD 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.*

Note: (Used with 38" Decks)

$4.49

$

In Stock, Qty 13

0

4

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

5

MTD 710-0915

Hex AB Tap Scr. 5/16-18 x 1.0"

Note: (Used with 38" Decks)

$

$

Not available

6

MTD 712-0240

Hex Jam Nut 7/16-20 Thd.
(Superseded to 912-0240)

Note: (Used with 38" Decks)

$4.49

$

In Stock, Qty 20+

0

7

MTD 723-0367

Front Counter Weight 38 lbs.

$

$

Not available

8

MTD 736-0105

Bell.-Wash. 400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0171

L.-Wash. 7/16" I.D.

Note: (Used with 38" Decks)

$4.49

$

In Stock, only 4 left!

0

10

MTD 736-0280

Fl.-Wash. .390" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

11

MTD 748-0298

Spacer

Note: (Optional)

$

$

Not available

12

MTD 16027

Weight Brkt. Tie Strap-R.H.

Note: (Used with 38" Decks)

$

$

Not available

15

MTD 16587

Catcher Support Tube Mtg. Brkt
(Superseded to 16587D-0637)

$82.99

$

Usually ships in 3-6 days

0

16

MTD 16588

Catcher Support Tube Ass'y.
(Superseded to 16592-0637)

$194.99

$

Usually ships in 3-6 days

0

18

MTD 16593

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

$35.99

$

Usually ships in 3-6 days

0

19

MTD 16610

Grass Catcher Support Brkt- R.H.

Note: (Used with 38" Decks)

$

$

Not available

20

MTD 16611

Grass Catcher Support Brkt. - LH.
(Superseded to 16611C-0637)

Note: (Used with 38" Decks)

$52.99

$

Usually ships in 3-6 days

0

21

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. - Grade 5

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

25

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

27

MTD 738-0380

Shld. Bolt 3/8-16 x .500" Dia.

$7.99

$

In Stock, only 1 left!

0

28

MTD 736-0253

Bell.-Wash. .505" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

31

MTD 16594

Grass Catcher Cover Ass'y.

$

$

Not available

32

MTD 726-0258

Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

33

MTD 723-0382

Screen

$

$

Not available

34

MTD 16596

Hinge Brkt. Ass'y.
(Superseded to 16596-0637)

Variations

MTD 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

35

MTD 710-1005

Hex Tap Scr. 1/4-20 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

MTD 723-0384

Seal
(Superseded to 723-0412)

$32.99

$

Usually ships in 3-6 days

0

37

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 731-0824

Plastic Plate

$

$

Not available

39

MTD 726-0244

Speed Nut
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

40

MTD 731-0821

Grass Catcher Cover

$

$

Not available

41

MTD 17141

Weight Brkt. Ass'y. -L.H.

Note: (Used with 32" Decks)

$

$

Not available

42

MTD 17142

Weight Brkt. Ass'y. R.H.

Note: (Used with 32" Decks)

$

$

Not available

43

MTD 16672

Grass Catcher Support Brkt.
(Superseded to 16672A-0637)

Note: (Used with 32" Decks)

$45.99

$

Usually ships in 3-6 days

0

45

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

49

MTD 712-0324

Hex Ins. L.-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

50

MTD 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

51

MTD 731-0825

Catcher Elbow

$

$

Not available

52

MTD 731-0826

Catcher Tube
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

53

MTD 731-0827

Discharge Chute
(Superseded to 731-0827D)

$143.99

$

In Stock, only 1 left!

0

54

MTD 736-0175

L.-Wash. .270" I.D. x .57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

MTD 16591

Bag Frame Hanger Brkt.
(Superseded to 16591A-0637)

Variations

MTD 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

61

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

62

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

63

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

64

MTD 712-0138

Hex Nut 1/4-28 Thd.*

$6.99

$

Usually ships in 3-6 days

0

65

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

MTD 749-0701

Catcher Bag Frame
(Superseded to 749-0701A-0637)

Variations

MTD 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

67

MTD 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

68

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

69

MTD 16595

Screen Mtg. Brkt.

$

$

Not available

70

MTD 736-0400

Flat Wash. 1/4" I.D.

$5.49

$

In Stock, Qty 12

0
