190-063-000 - MTD Grass Catcher Assembly (2000) Grass Catcher Cover Assembly Parts Diagram

Grass Catcher Assembly

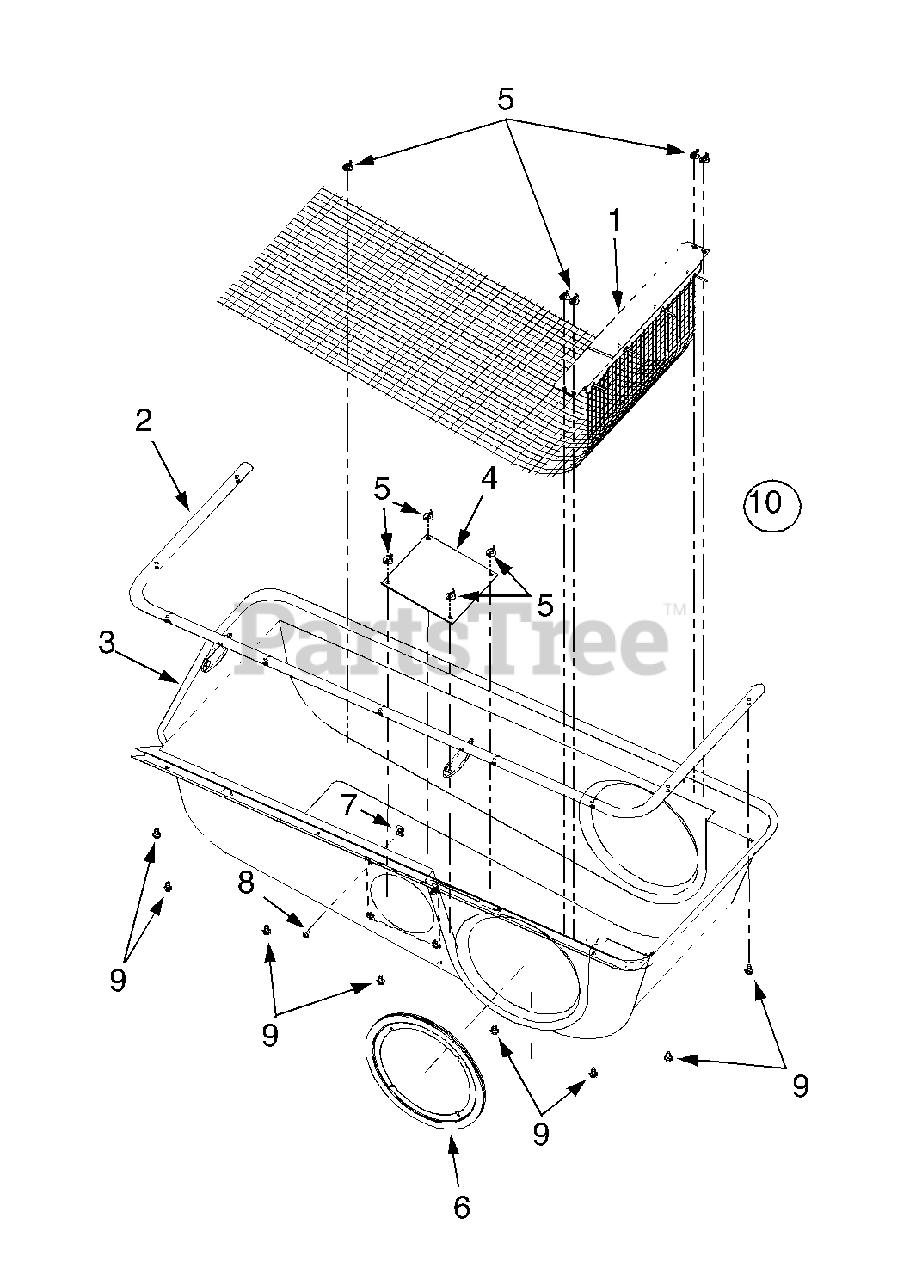

Grass Catcher Cover Assembly Parts Diagram

  • Title

1

MTD 16847A

Screen Assembly

Variations

MTD 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 16596

Hinge Bracket Assembly
(Superseded to 16596-0637)

Variations

MTD 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

3

MTD 731-0821A

Grass Catcher Cover

Note: Model 063 only

$

$

Not available

MTD 731-1417

Grass Catcher Cover

Note: Model 103 only

$

$

Not available

4

MTD 731-0824A

Plastic Plate

$

$

Not available

5

MTD 726-0258

Zip Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

6

MTD 723-0412

Tube Seal

Note: Model 063 only

$32.99

$

Usually ships in 3-6 days

0

MTD 723-0413

Tube Seal

Note: Model 103 only

$30.99

$

In Stock, only 2 left!

0

7

MTD 712-0147

U-Type Speed Nut

$6.99

$

Usually ships in 3-6 days

0

8

MTD 710-0351

Screw, #10-16 x 0.5"

Note: Model 063 only

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0473

Screw, #10-24 x 0.5"

Note: Model 103 only

$4.49

$

In Stock, only 2 left!

0

9

MTD 710-0599

Hex Screw, 1/4-20 x 0.5"

Note: Model 063 only

$4.49

$

In Stock, Qty 20+

0

MTD 710-0896

Hex Screw, 1/4-14 x 0.625"

Note: Model 103 only

$4.49

$

In Stock, Qty 20+

0

10

MTD 16594A

Grass Catcher Cover Assembly

Note: Model 063 only

$

$

Not available

MTD 631-0007

Grass Catcher Cover Assembly

$

$

Not available
