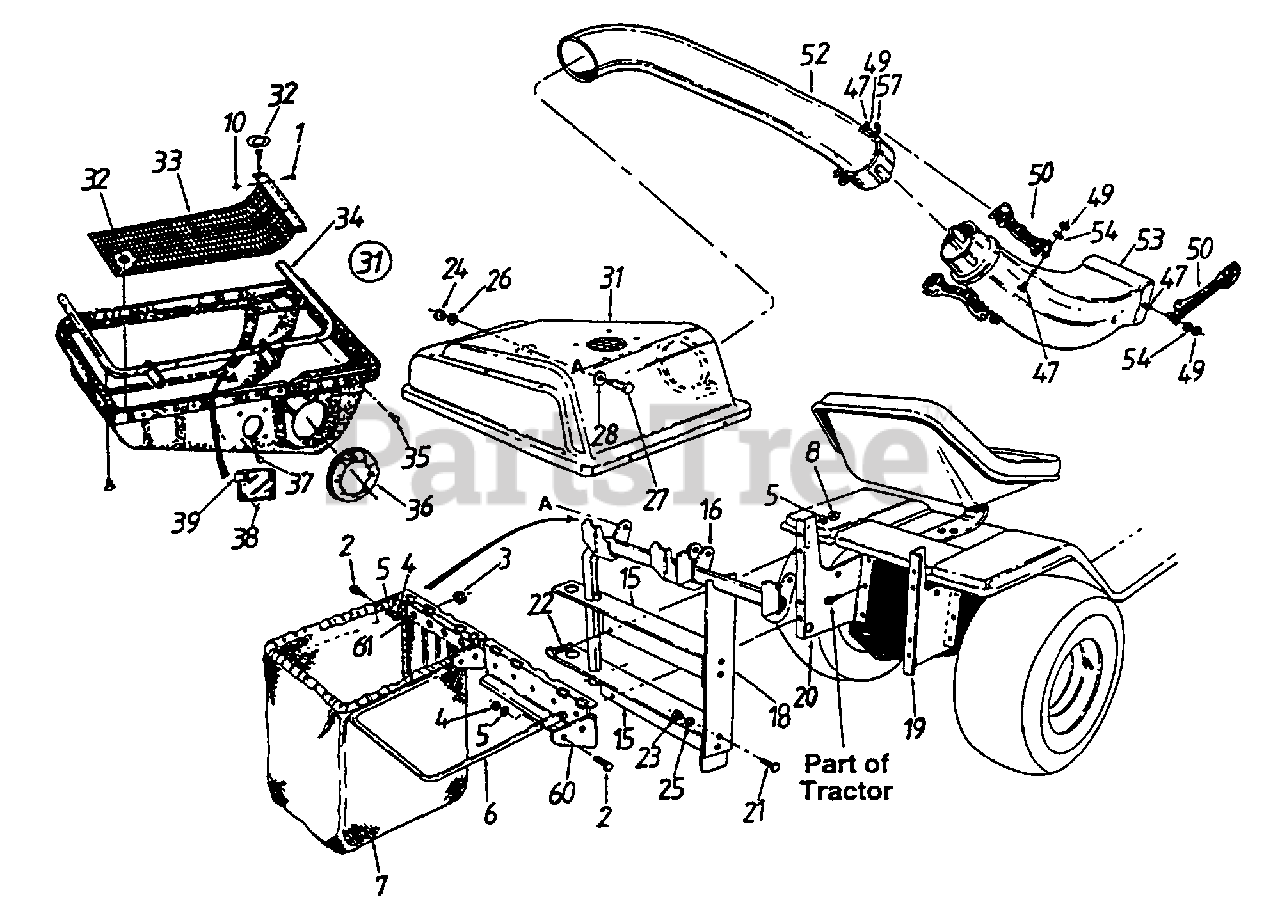

190-063-000 - MTD Grass Catcher Assembly (1998) Grass Collectors Parts Diagram

Grass Catcher Assembly

Grass Collectors Parts Diagram

  • Title

1

MTD 728-0123

Pop Rivet .188 Dia.
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

2

MTD 710-0281

Hex Bolt 1/4-28 x .88"

$6.49

$

Usually ships in 3-6 days

0

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

4

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

5

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

6

MTD 749-0701

Catcher Bag Frame
(Superseded to 749-0701A-0637)

Variations

MTD 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

7

MTD 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

8

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

MTD 736-0400

Flat Wash. 1/4" I.D.

$5.49

$

In Stock, Qty 11

0

15

MTD 16587B

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

Variations

MTD 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

16

MTD 16592

Catcher Support Tube Ass'y.
(Superseded to 16592-0637)

Variations

MTD 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

18

MTD 16593A

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

Variations

MTD 16593A-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

19

MTD 16611C

Grass Catcher Support Brkt.- R H.
(Superseded to 16611C-0637)

Variations

MTD 16611C-0637

Support Bracket, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

20

MTD 16610C

Grass Catcher Support Brkt.- L.H.

Variations

MTD 16610C-0637

Grass Catcher Support Brkt.-R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 710-0118

Hex Bolt 5/16-18 x.75"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0751

Hex Bolt 1/4-20 x.62" Lg.- Grade 5

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 738-0380

Shld. Bolt 3/8-16 x .50" Dia.

$7.99

$

Usually ships in 3-6 days

0

28

MTD 736-0253

Bell-Wash .505" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

31

MTD 16594A

Grass Catcher Cover Ass'y.

Note: model 063

$

$

Not available

MTD 631-0007

Grass Catcher Cover Ass'y.

Note: model 103

$

$

Not available

32

MTD 726-0258

Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

33

MTD 16847A

Screen Ass'y.

Variations

MTD 16847A-0637

No Longer Available SCREEN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 16596

Hinge Brkt. Ass'y.
(Superseded to 16596-0637)

Variations

MTD 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

35

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

36

MTD 723-0412

Seal - 7"

Note: model 063

$32.99

$

Usually ships in 3-6 days

0

MTD 723-0413

Seal - 8"

Note: model 103

$30.99

$

In Stock, only 2 left!

0

37

MTD 710-0351

Truss B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 731-0824A

Plastic Plate

$

$

Not available

39

MTD 726-0244

Speed Nut
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

47

MTD 710-0258

Hex Bolt 1/4-20 x .625"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

50

MTD 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

52

MTD 731-0899

Catcher Tube
(Superseded to 731-0899E)

Note: model 063

$108.99

$

In Stock, only 2 left!

0

MTD 731-0926

Catcher Tube
(Superseded to 731-0926B)

Note: model 103

$142.99

$

In Stock, only 1 left!

0

53

MTD 731-0827A

Discharge Chute
(Superseded to 731-0827D)

Note: model 063

$143.99

$

In Stock, only 1 left!

0

MTD 731-0925

Discharge Chute
(Superseded to 731-0925C)

Note: model 103

$162.99

$

In Stock, only 2 left!

0

54

MTD 736-0175

L-Wash .27" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

MTD 16591

Bag Frame Hanger Brkt.
(Superseded to 16591A-0637)

Variations

MTD 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

61

MTD 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0
