190-055-000 - MTD Grass Catcher Kit (1989) Grass Catcher Parts Diagram

Grass Catcher Kit

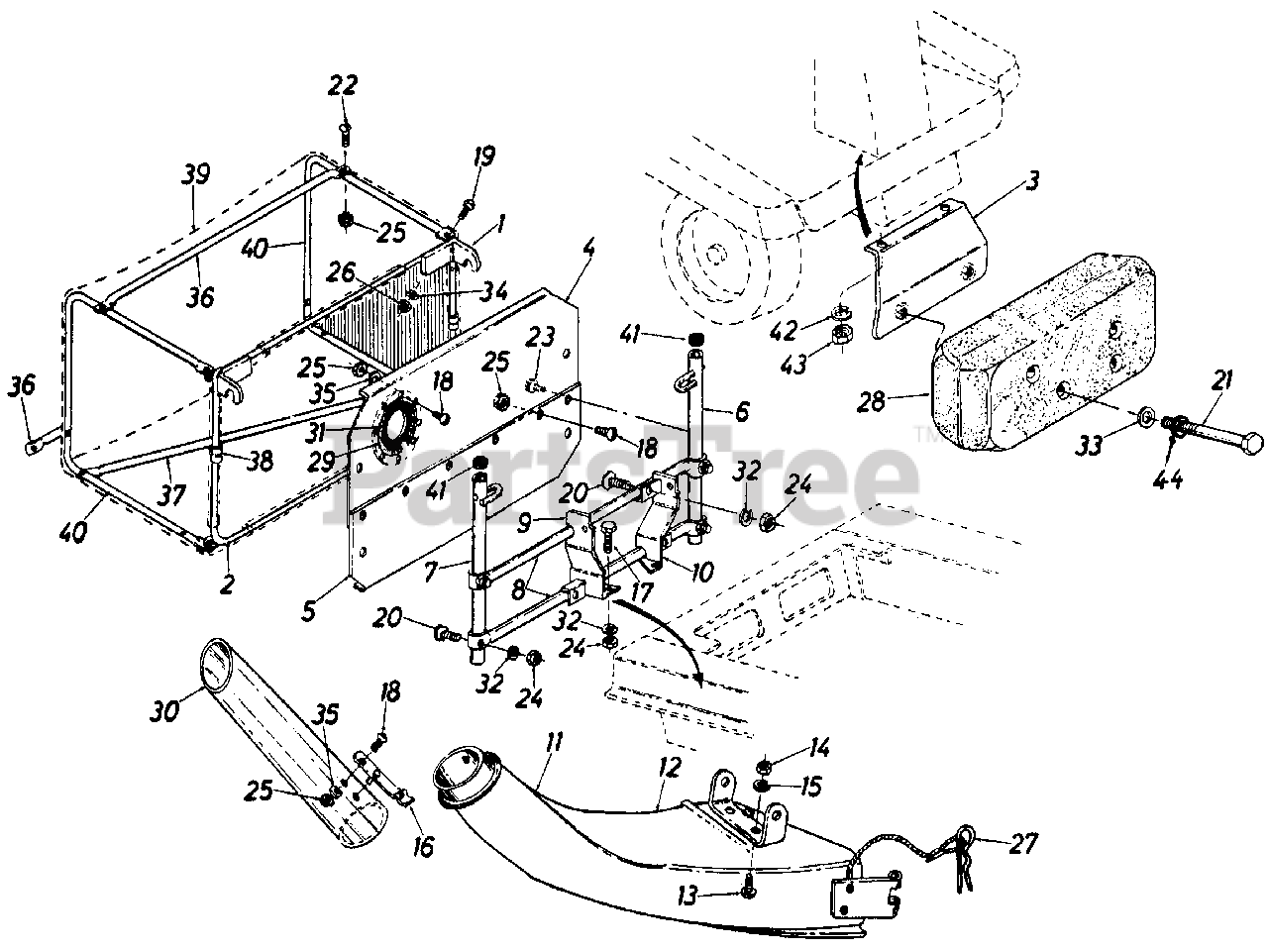

Grass Catcher Parts Diagram

  • Title

1

MTD 14393

Catcher Frame Ass'y. - Upper

$

$

Not available

2

MTD 14394

Gatcher Frame Ass'y. - Lower

$

$

Currently unavailable

3

MTD 15539

Counterweight Support 8racket. Ass'y.

$

$

Not available

4

MTD 15589

Front Cover - Upper Half

$

$

Currently unavailable

5

MTD 15590

Front Cover - Lower Half

$

$

Currently unavailable

6

MTD 15591

L.H. Vertical Support Ass'y.

$

$

Currently unavailable

7

MTD 15592

R.H. Vertical Support Ass'y.

$

$

Not available

8

MTD 15595

Horizontal Support Tubing

$

$

Currently unavailable

9

MTD 15596

Catcher Support B rkt. Ass'y.- R . H .

$

$

Currently unavailable

10

MTD 15597

Catcher Support B rkt. Ass'y.- L. H .

$

$

Currently unavailable

11

MTD 15648

Discharge Chute Ass'y.

$

$

Currently unavailable

12

MTD 15192

Brkt. Chute Hinge

$

$

Currently unavailable

13

MTD 710-0134

Carr. Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

MTD 15649

Spring Lock Ass'y.

$

$

Not available

17

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg. *
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0192

Truss Mach. Scr. #10-24 x .38" Lg. *

$3.99

$

In Stock, Qty 12

0

19

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0405

Curved Calr. Boil 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

MTD 710-0693

Hex Bolt 3/8-16 x 4.50" Lg.*

$14.99

$

In Stock, only 2 left!

0

22

MTD 710-0467

Truss Mach. Scr. #10-24 x 1.0" Lg. *

$

$

Not available

23

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x.62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

26

MTD 712-0287

Hex Nut 1/4-2 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

MTD 714-0155

Internal Cotter Pin
(Superseded to 714-0174)

$

$

Not available

28

MTD 723-0367

Counter Weight - 38#

$

$

Not available

MTD 719-0264

Cast Counterweight

Note: (Optional)

$

$

Currently unavailable

29

MTD 731-0516

Trim Strip - 24"
(Superseded to 731-0511)

$3.99

$

Usually ships in 3-6 days

0

30

MTD 731-0647

Grass Chute Tube

$

$

Not available

31

MTD 735-0211

Rubber Flap

$

$

Not available

32

MTD 736-0119

L-Wash . 5/16" I.D. *
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 736-0280

Flat Washer 3/8" I.D. x 1.25" O.D. x .17
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

34

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

35

MTD 736-0931

F l-Wash . . 203" I . D . x .41 " O.D. x .040

$4.99

$

In Stock, only 1 left!

0

36

MTD 749-0458

Grass Catcher Handle

$

$

Not available

37

MTD 749-0459

Grass Catcher Handle

$

$

Not available

38

MTD 750-0476

Tubing Connector 1/2" I.D.

$

$

Not available

39

MTD 764-0189

Grass Bag

$

$

Not available

40

MTD 749-0460

Catcher Side Frame

$

$

Not available

41

MTD 731-0496

Plug

$

$

Not available

42

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0105

Bell-Wash. 3/8" I.D. x 7/8" O.D.

$4.49

$

In Stock, Qty 20+

0
