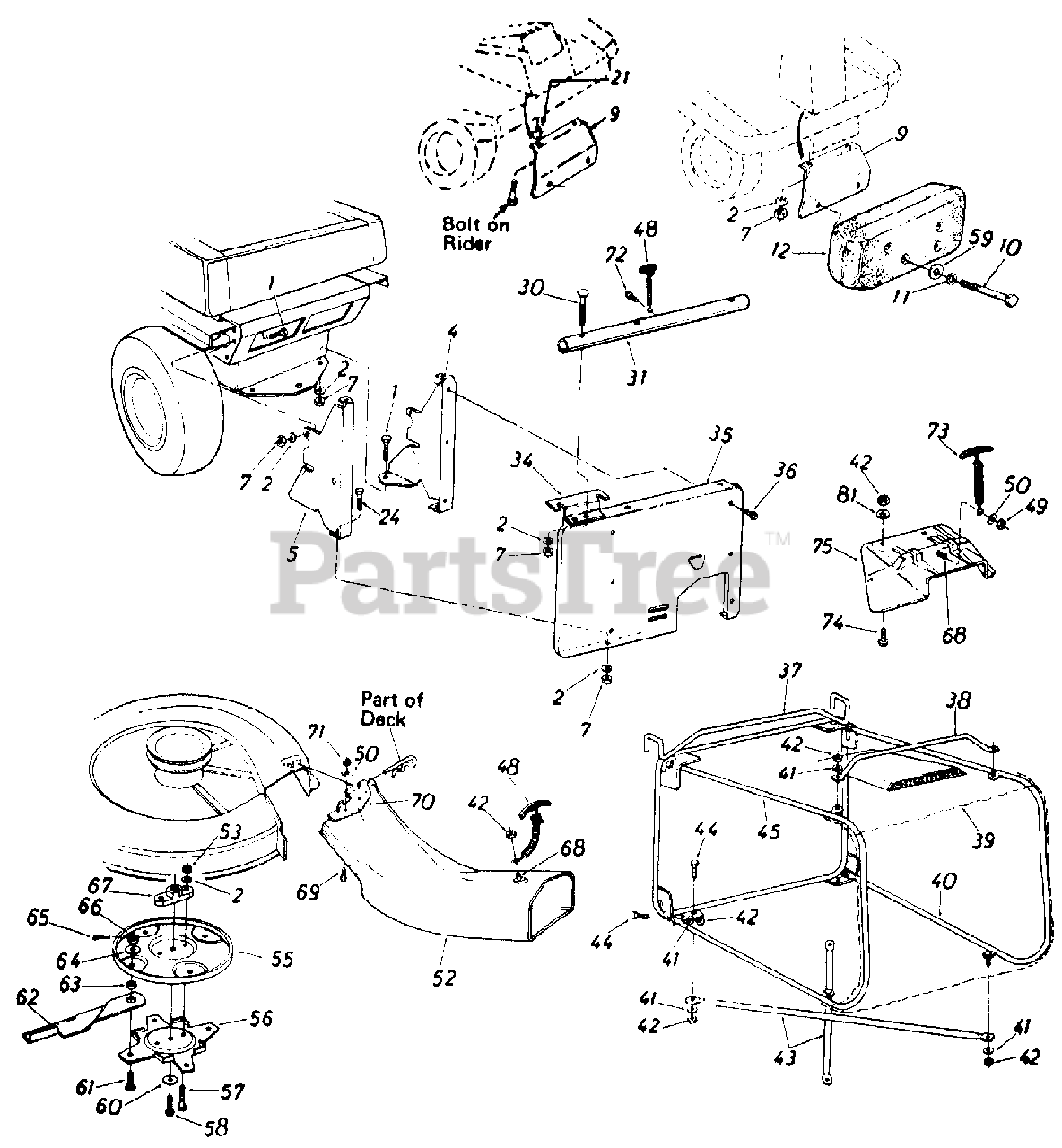

190-038-190 - White Outdoor Rear Bagging Grass Catcher (1990) 30" Rear Discharge Decks Parts Diagram

Rear Bagging Grass Catcher

30" Rear Discharge Decks Parts Diagram

  • Title

1

White Outdoor 710-0376

Hex Bolt 5/16-18 X 1" Lg.

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 15970A

Catcher Support Brkt.-R.H.

$

$

Not available

5

White Outdoor 15971A

Catcher Support Brkt.-L.H.

$

$

Not available

7

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 15539

Counterweight Support Brkt. Ass'y.

$

$

Not available

10

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

11

White Outdoor 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 723-0367

Counterweight 38 Ibs.

$

$

Not available

21

White Outdoor 711-0242

Spacer .380" I.D. x 1 O.D. x .32" Lg.

$4.49

$

In Stock, Qty 8

0

24

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

31

White Outdoor 749-0659

Grass Catcher Support Tube

Variations

White Outdoor 749-0659-0637

No Longer Available SUPPORT-TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 15995

Grass Catcher Support Plate

$

$

Not available

35

White Outdoor 15923

Rear Discharge Panel

$

$

Not available

36

White Outdoor 710-0599

HexWash. Hd. Self-TapScr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 15991

Grass Catcher Frame Ass'y.

$

$

Not available

38

White Outdoor 749-0653

Grass Catcher Handle
(Superseded to 749-0653-0637)

Variations

White Outdoor 749-0653-0637

HANDLE-CATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 764-0210

Grass Catcher Bag

$

$

Not available

40

White Outdoor 15992

Catcher Side Frame Ass'y.-R.H.

Variations

White Outdoor 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 736-0175

Spring-Wash. .27" I.D. x .57" O.D. x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

White Outdoor 712-0107

Hex L-Nut 1/2-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

43

White Outdoor 749-0651

Bottom Cross Brace

$

$

Not available

44

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 15993

Catcher Side Frame Ass'y.-L.H.

Variations

White Outdoor 15993-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

48

White Outdoor 723-0296

HookLatch Ass'y.

$

$

Not available

49

UNKNOWN

$

$

Not available

50

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

52

White Outdoor 15920

R. D. Banana Chute Ass'y.

$

$

Not available

53

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

55

White Outdoor 742-0265

Upper Blade Disc
(Superseded to 742-0286-0637)

$

$

Not available

56

White Outdoor 742-0279

LowerBlade Disc

Variations

White Outdoor 742-0279-0637

BLADE DISC-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

57

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0 Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-0280

Fl-Wash. .39 I.D. x 1.12 O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0356

Bell-Wash. .39H.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

61

White Outdoor 738-0587

Shld. Bolt .50" Dia. x .36"
(Superseded to 938-0587)

Note: (Spec.)

$

$

Not available

62

White Outdoor 742-0266

30" Blade Tip

$

$

Not available

63

White Outdoor 750-0604

Spacer .505" I.D. x .75' O.D. x 1.25H Lg.

$

$

Not available

64

White Outdoor 736-0179

Fl-Wash. .5" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

65

White Outdoor 714-0111

Cotter Pin 8/32U Dia. x 1 Lg.

$4.99

$

In Stock, Qty 13

0

66

White Outdoor 712-0114

Hex Slotted Nut 1/2-20Thd.
(Superseded to 912-0114)

$

$

Not available

67

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 3 left!

0

68

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

69

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

70

White Outdoor 15921

Chute Mounting Brkt.

Variations

White Outdoor 15921-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

71

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

72

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

73

White Outdoor 723-0370

Hook Latch Ass'y.
(Superseded to 923-0370)

$

$

Not available

74

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

White Outdoor 731-0721

R. D. Chute Extension

$91.99

$

Usually ships in 3-6 days

0

81

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .50 O.D. x .063

$4.99

$

In Stock, Qty 20+

0
