42" 2-Stage Snow Thrower Attachment

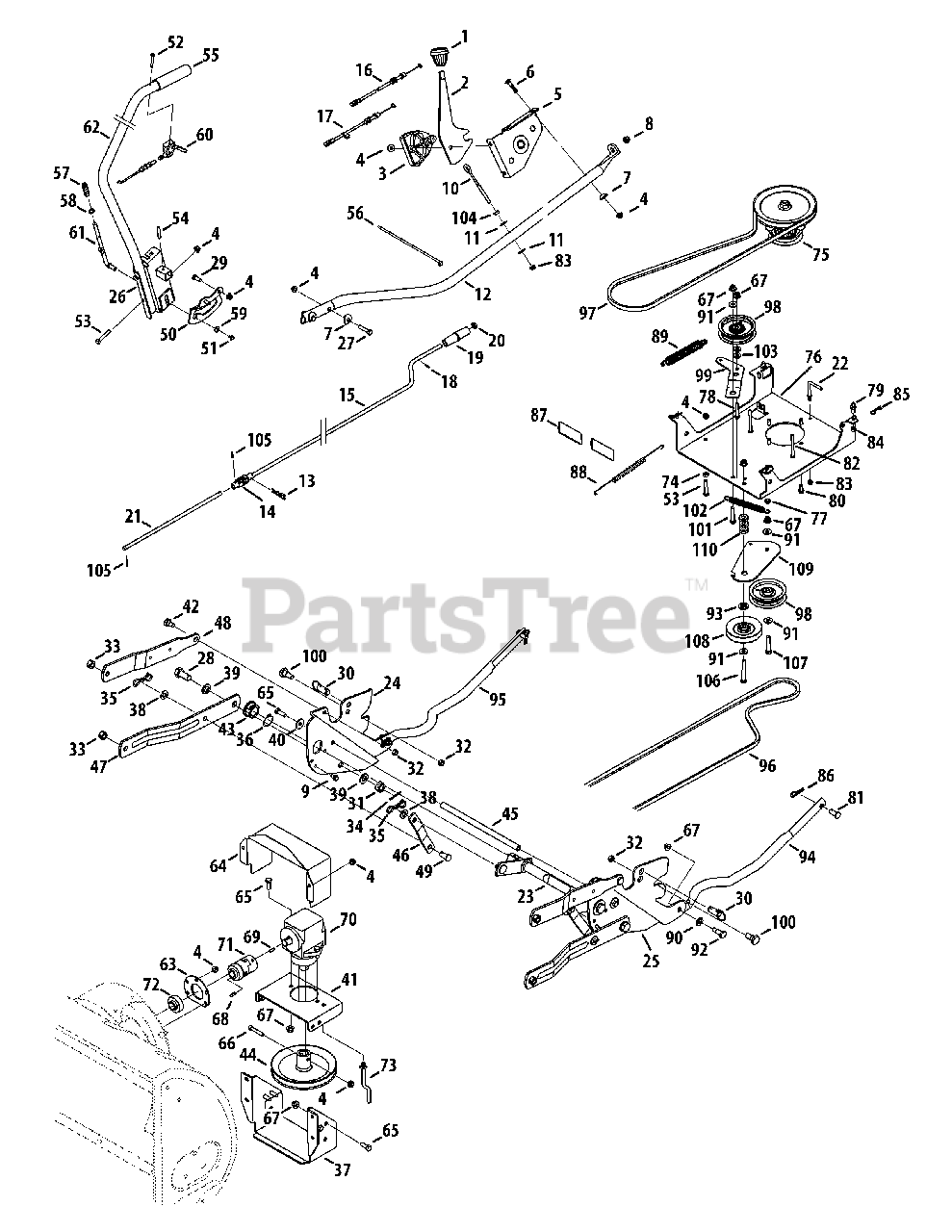

Drive & Handle Assembly 2009 & After Parts Diagram

  • Title

1

Troy-Bilt 720-04039

Knob

$10.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 784-5604A-0637

Chute Tilt Handle

$25.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

Nylon Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 603-0302-0637

Chute Tilt Bracket Assembly
(Superseded to 603-0302A-0637)

$69.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 12

0

7

Troy-Bilt 936-0451

Saddle Washer, .32 x .93
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

8

Troy-Bilt 941-0475

Plastic Bushing

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0604A

Self Tapping Screw

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-05050

Eye Bolt

$7.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 750-04467

Support Chute Tube

Variations

Troy-Bilt 750-04467-0637

TUBE:CHUTE:SUPPORT - POWDER BLACK (0637)

$127.99

$

Usually ships in 3-6 days

0

$118.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 914-0101

Cotter Pin, .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

14

Troy-Bilt 684-04350

Joint Block Assembly

$29.99

$

In Stock, Qty 5

0

15

Troy-Bilt 747-1201A

Chute Crank Rod, .38 x 35

$80.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 746-1108

Chute Cable, 62"
(Superseded to 946-1108)

$62.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 746-1109

Chute Cable w/ Clip, 62"
(Superseded to 746P1109)

$68.99

$

In Stock, Qty 5

0

18

Troy-Bilt 915-0138

Rolled Pin, 1/8 x .63

$4.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 720-0201A

Crank Knob

$10.99

$

In Stock, Qty 5

0

20

Troy-Bilt 926-0100

Push Cap, 3/8 ID
(Superseded to 726-0100)

$

$

Not available

21

Troy-Bilt 747-04400A

Rod, .375 x 13.50

$22.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 711-04741

Belt keeper Pin

$20.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 611-0132A-0637

Rod Assembly

$352.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 783-0880D-0637

RH Support Plate Assembly
(Superseded to 783-0880E-0637)

$122.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 783-0879D-0637

LH Support Plate Assembly
(Superseded to 783-0879E-0637)

$122.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 683-04150-0637

Lift Bracket Assembly

$83.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0964A

Hex Cap Screw, 5/8-18 x 1.31

$11.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 714-04061

Quick Release Pin

$21.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 712-0386A

Slotted Hex Nut, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

33

Troy-Bilt 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 9

0

34

Troy-Bilt 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 714-04043

Cotter Pin, Bow Tie

$4.99

$

In Stock, Qty 18

0

36

Troy-Bilt 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 784-0402-0637

Skid Plate

$112.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 936-0272

Flat Washer, .51 x 1.0 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0366

Flat Washer, .64 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 936-0452

Bell Washer, .396 x 1.14 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

41

Troy-Bilt 783-1014A-0637

Drive Mounting Bracket

$86.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 738-0234

Shoulder Screw, .5 x .29, 3/8-16

$10.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 741-0192

Flange Bearing w/ Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

44

Troy-Bilt 756-1181A

Drive Pulley, 7"

$113.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 747-1192

Rod, 1/2 x 11.55

$50.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 783-0876

Link, 5.875

Variations

Troy-Bilt 783-0876-0637

LINK - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 783-0877

Link, 15.4
(Superseded to 783-0877-0637)

Variations

Troy-Bilt 783-0877-0637

LINK 15.3"LG - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 783-0878B-0637

Link, 13.25

$50.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 911-0332

Clevis Pin, .50 x .78

$16.99

$

In Stock, Qty 17

0

50

Troy-Bilt 790-00110-0637

Snow Thrower Lift Bracket

$39.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 01001864

Hex Index Washer Screw #10-24
(Superseded to 1767754)

$

$

Not available

52

Troy-Bilt 710-3143

Pan Phillips Screw, #10-24 x .75

$11.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 12

0

54

Troy-Bilt 915-0114

Heavy Duty Spirol Pin, 1/4 x 1.5
(Superseded to 715-0114)

$9.49

$

In Stock, only 3 left!

0

55

Troy-Bilt 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

56

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

57

Troy-Bilt 932-0306A

Compression Spring

$8.49

$

In Stock, only 4 left!

0

58

Troy-Bilt 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

59

Troy-Bilt 936-0400

Flat Washer, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

60

Troy-Bilt 746-1103A

Lift Cable, 42" w/ Trigger Control
(Superseded to 946-1103A)

$73.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 747-1203

Lift Index Rod

$55.99

$

In Stock, only 4 left!

0

62

Troy-Bilt 750-1221-0637

Lift Handle Tube

$279.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 05931A

Bearing Housing, 1.85 ID

$10.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 703-2736-0637

Belt Cover

$33.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 710-3251

Socket Head Cap Screw

$5.99

$

In Stock, only 2 left!

0

67

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 16

0

68

Troy-Bilt 914-0122

Square Key, 3/16 x .75
(Superseded to 714-0122)

$

$

Not available

69

Troy-Bilt 914-0126

Hi-pro Key, 3/16 x .75
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 18

0

70

Troy-Bilt 917-1714A

Right Angle Drive
(Superseded to 917-1714B)

$621.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 918-0691

Coupling

$170.99

$

In Stock, only 4 left!

0

72

Troy-Bilt 941-0309

Flange Ball Bearing, .75 x 1.85

$74.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 747-1257

Belt Keeper Rod

$21.99

$

In Stock, only 2 left!

0

74

Troy-Bilt 912-3010

Flange Nut, 5/16
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

75

Troy-Bilt 618-0411

Spindle Assembly
(Superseded to 918-0411A)

$125.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 683-04605-0637

Pulley Mounting Bracket

$350.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 684-0149

Double Idler Bracket Assembly
(Superseded to 753-08594)

$178.99

$

In Stock, only 1 left!

0

78

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

79

Troy-Bilt 710-04511

Pin 5/16-18

$34.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 710-1260A

Carriage Bolt, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 911-0310

Clevis Pin, .5 x 1.18
(Superseded to 711-0310)

$

$

Not available

82

Troy-Bilt 911-1000

Belt Keeper Pin

$10.99

$

In Stock, only 2 left!

0

83

Troy-Bilt 712-04064

Nylon Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

84

Troy-Bilt 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

85

Troy-Bilt 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

86

Troy-Bilt 714-0147

Internal Cotter Pin, .125 x 1.75

$4.99

$

In Stock, Qty 6

0

87

Troy-Bilt 930-3000

Reflector

$17.99

$

In Stock, only 2 left!

0

88

Troy-Bilt 732-04237

Extension Spring .50 x 12.00

$23.99

$

In Stock, Qty 6

0

89

Troy-Bilt 932-0594A

Extension Spring .91 x 7.33

$14.99

$

In Stock, Qty 20+

0

90

Troy-Bilt 936-0192

Flat Washer, .531 x .93 x .09

$4.49

$

In Stock, Qty 18

0

91

Troy-Bilt 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

92

Troy-Bilt 938-0145

Shoulder Screw, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 938-0347

Shoulder Spacer, .625 x .169

$10.99

$

Usually ships in 3-6 days

0

94

Troy-Bilt 749-1103-0637

LH Support Tube

$52.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 749-1104-0637

RH Support Tube

$52.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 954-3053

V-Belt

Note: (A Sec. x 107.3)

$54.99

$

In Stock, Qty 8

0

97

Troy-Bilt 954-0498

V-Belt

Note: (A Sec. x 66.90)

$44.99

$

In Stock, Qty 9

0

98

Troy-Bilt 756-0627D

Idler Pulley 3.50 dia.

$30.99

$

In Stock, Qty 20+

0

99

Troy-Bilt 783-1291-0637

Idler Bracket
(Superseded to 783-1291A-0637)

$12.99

$

In Stock, only 4 left!

0

100

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

101

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

102

Troy-Bilt 732-0978

Extension Spring, .620 x 5.62

$10.99

$

In Stock, only 1 left!

0

103

Troy-Bilt 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

104

Troy-Bilt 712-3006

HEX NUT

$4.99

$

In Stock, Qty 19

0

105

Troy-Bilt 715-04095

Spirol Pin, .156 x .875

$5.49

$

In Stock, Qty 20+

0

106

Troy-Bilt 710-3022

Hex Cap Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

107

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

108

Troy-Bilt 756-0487

Idler pulley, 4" Diameter

$48.99

$

In Stock, only 1 left!

0

109

Troy-Bilt 784-5727-0637

Idler Pivot Arm

$73.99

$

Usually ships in 3-6 days

0

110

Troy-Bilt 911-0242

Spacer

$4.49

$

In Stock, Qty 9

0

111

Troy-Bilt 912-0266

Nut, 3/8-16, Jamlock
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0
