190-015-190 - White Outdoor Rider Grass Catcher (1987) Grass Catcher Parts Diagram

Rider Grass Catcher

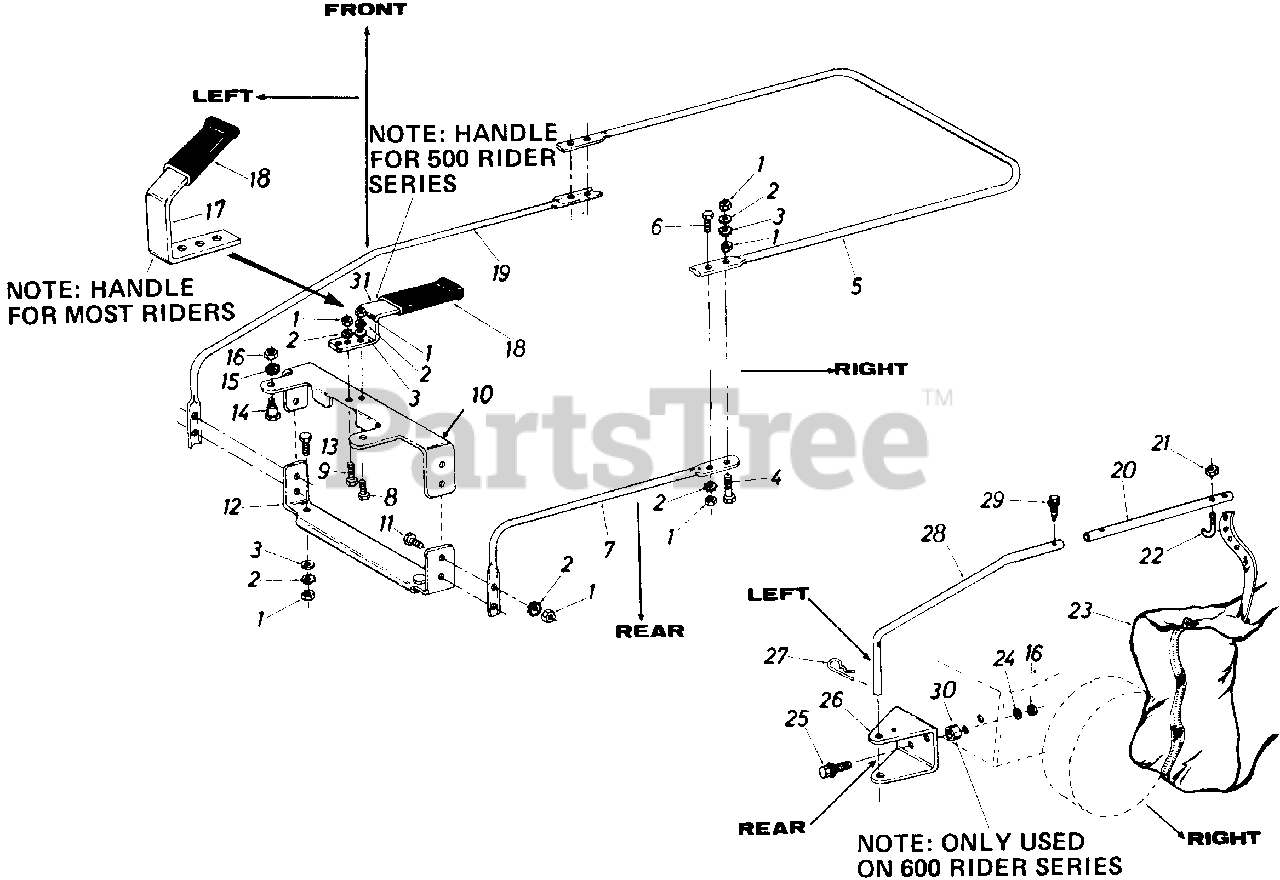

Grass Catcher Parts Diagram

  • Title

1

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

2

MTD 936-0222

Ext. L-Wash. 1/4" Scr.*
(Superseded to 736-0222)

$

$

Not available

3

MTD 936-0142

Fl-Wash. .281 I.D. x .50 O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0606

Hex Scr. 1/4-20 x 1.50" Lg.*

$5.49

$

In Stock, Qty 10

0

5

MTD 11706

Upper Frame Half

Note: NLA

$

$

Not available

6

MTD 710-0597

Hex Scr. 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 13

0

7

MTD 11705

Lower Frame Tubing

Note: NLA

$

$

Currently unavailable

8

MTD 710-0751

Hex Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3015

Hex Scr. 1/4-20 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

10

MTD 11701

Upper Opening Support

Note: NLA

$

$

Currently unavailable

11

MTD 710-0597

Hex Scr. 1/4-20 x 1.0" Lg.*

$3.99

$

In Stock, Qty 13

0

12

MTD 11702

Lower Opening Support

Note: NLA

$

$

Not available

13

MTD 910-0289

Hex Scr. 1/4-20 x .50" Lg.*

$3.99

$

In Stock, only 3 left!

0

14

MTD 938-0141

Shld. Scr. .437 Dia. x .350

$7.49

$

In Stock, Qty 7

0

15

MTD 736-0607

Ext. L-Wash. 5/16" Scr.*

$3.99

$

In Stock, Qty 20+

0

16

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 11707-0637

Handle

Note: (Handle for most riders)

$

$

Not available

18

MTD 720-0142

Grip-Black

$3.99

$

Usually ships in 3-6 days

0

19

MTD 11704

Lower Frame Arm

Note: NLA

$

$

Not available

20

MTD 11710

Upper Holding Arm

Note: NLA

Variations

MTD 11710-0637

No Longer Available ARM-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 712-0324

Hex Ins. L-Nut 1/4-20Thd.

$3.99

$

In Stock, Qty 16

0

22

MTD 711-0576

Hook

Note: NLA

$

$

Not available

23

MTD 964-0121

Grass CatcherBag

$

$

Not available

24

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

25

MTD 910-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*

$

$

Not available

25

MTD 710-0805

Hex Sems Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

Note: (For 600 Rider Series Only)

$4.49

$

In Stock, Qty 20+

0

26

MTD 11708

Hitch Bracket

Note: NLA

$

$

Not available

27

MTD 714-0117

Internal Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

28

MTD 749-0681

Lower Holding Arm

Note: NLA

$

$

Not available

29

MTD 710-0599

Hex Wash. Hd. Self-Tap .50" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 22550

Spacer

Note: NLA

$

$

Not available

31

MTD 15498

Handle

Note: (500 Rider Series Only)

$

$

Not available
