190-007-000 - MTD Roller Attachment (2000) Attachments (Part 1) Parts Diagram

Roller Attachment

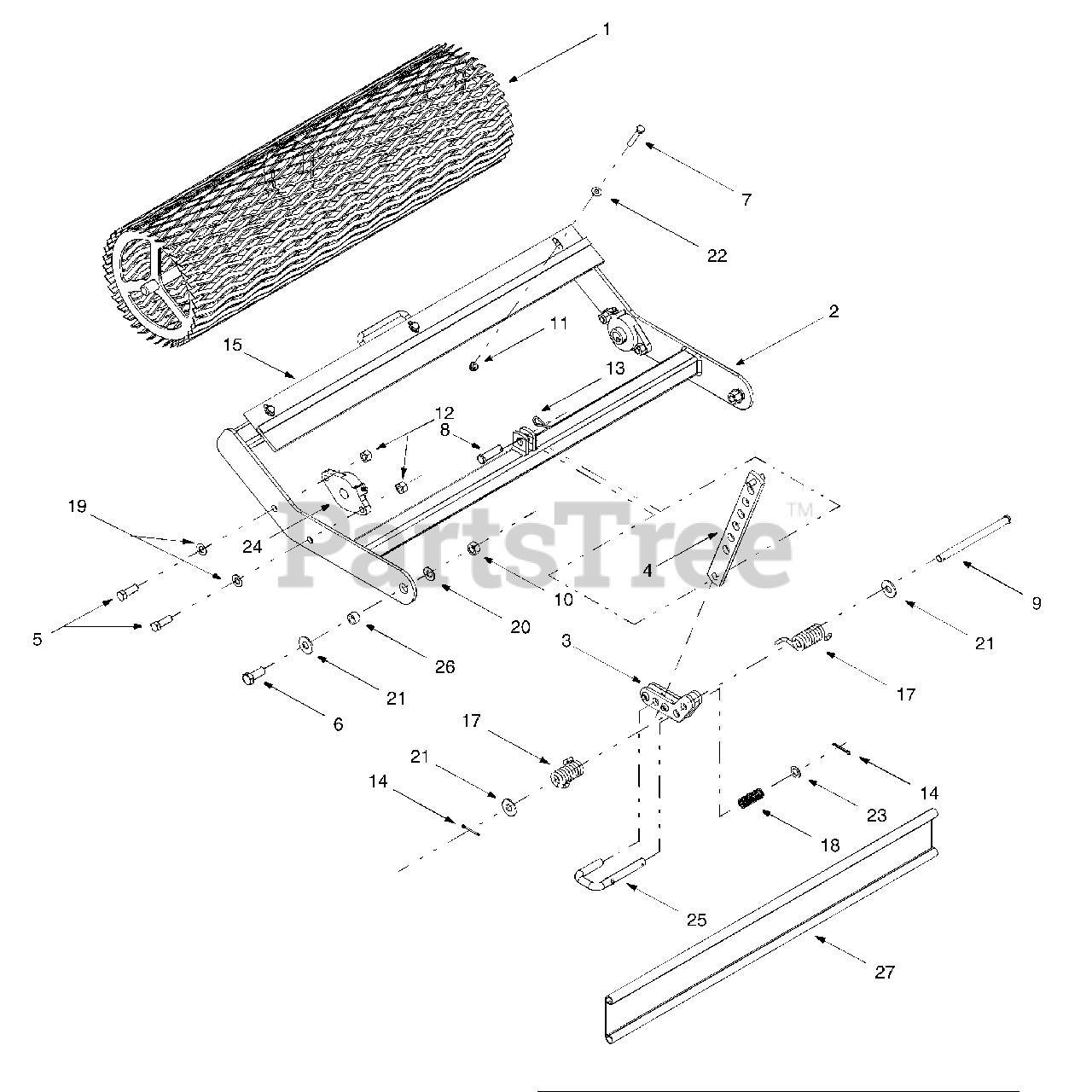

Attachments (Part 1) Parts Diagram

  • Title

1

MTD 686-0145

30-inch Roller Assembly
(Superseded to 686-0145-0637)

Variations

MTD 686-0145-0637

ROLLER-SOIL GRADE - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 686-0146

Roller Frame Assembly
(Superseded to 686-0146-0637)

Variations

MTD 686-0146-0637

Roller Frame Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 686-0149

Roller Bracket Assembly
(Superseded to 686-0149-0637)

Variations

MTD 686-0149-0637

BRACKET ASM-ROLLER - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 686-0153

Lock Pivot Plate Assembly
(Superseded to 686-0153-0637)

Variations

MTD 686-0153-0637

BAR-ADJUSTMENT - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-3029

Hex Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 12

0

6

MTD 710-3032

Hex Cap Screw, 1/2-13 x 1.25

$6.49

$

Usually ships in 3-6 days

0

7

MTD 710-3103

Hex Cap Screw, 5/16-18 x 2.0

$4.49

$

In Stock, only 4 left!

0

8

MTD 711-0231

Clevis Pin, .50 x 1.59
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

9

MTD 711-1384

Clevis Pin, .50 x 6.5

$

$

Not available

10

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

12

MTD 712-3067

Hex Lock Nut, 7/16-20

$6.49

$

Usually ships in 3-6 days

0

13

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

14

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

15

MTD 727-0522

30-inch Roller Brush

$

$

Not available

?16

MTD 732-0988

RH Torsion Spring

$

$

Not available

17

MTD 732-0989

LH Torsion Spring

$

$

Not available

18

MTD 732-3091

Compression Spring, .57 x 2.09

$

$

Not available

19

MTD 736-0226

Flat Washer, .474 x .879 x .064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

20

MTD 736-0253

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

22

MTD 736-0257

Flat Washer, .536 x 1.262 x .101
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

23

MTD 736-3068

Flat Washer, .50 x .875 x .060

$6.99

$

In Stock, only 2 left!

0

24

MTD 741-1103

Flange Bearing, .75

$

$

Not available

25

MTD 747-1207

Roller Locking Rod

$

$

Not available

26

MTD 750-1069

Spacer, .51 x .75 x .44
(Superseded to 950-1069)

$

$

Not available

27

MTD 786-0274

Tine Shield

Variations

MTD 786-0274-0637

SHIELD-FRONT TINE - POWDER BLACK (0637)

$

$

Not available

MTD 786-0274-0716

SHIELD-FRONT TINE - CUB YELLOW-99 (0716)

$

$

Not available

$

$
