19-4300 - Toro 25" Bagging Kit for Front Engine 25" ROTARY BAGGER KIT Parts Diagram

25" Bagging Kit for Front Engine

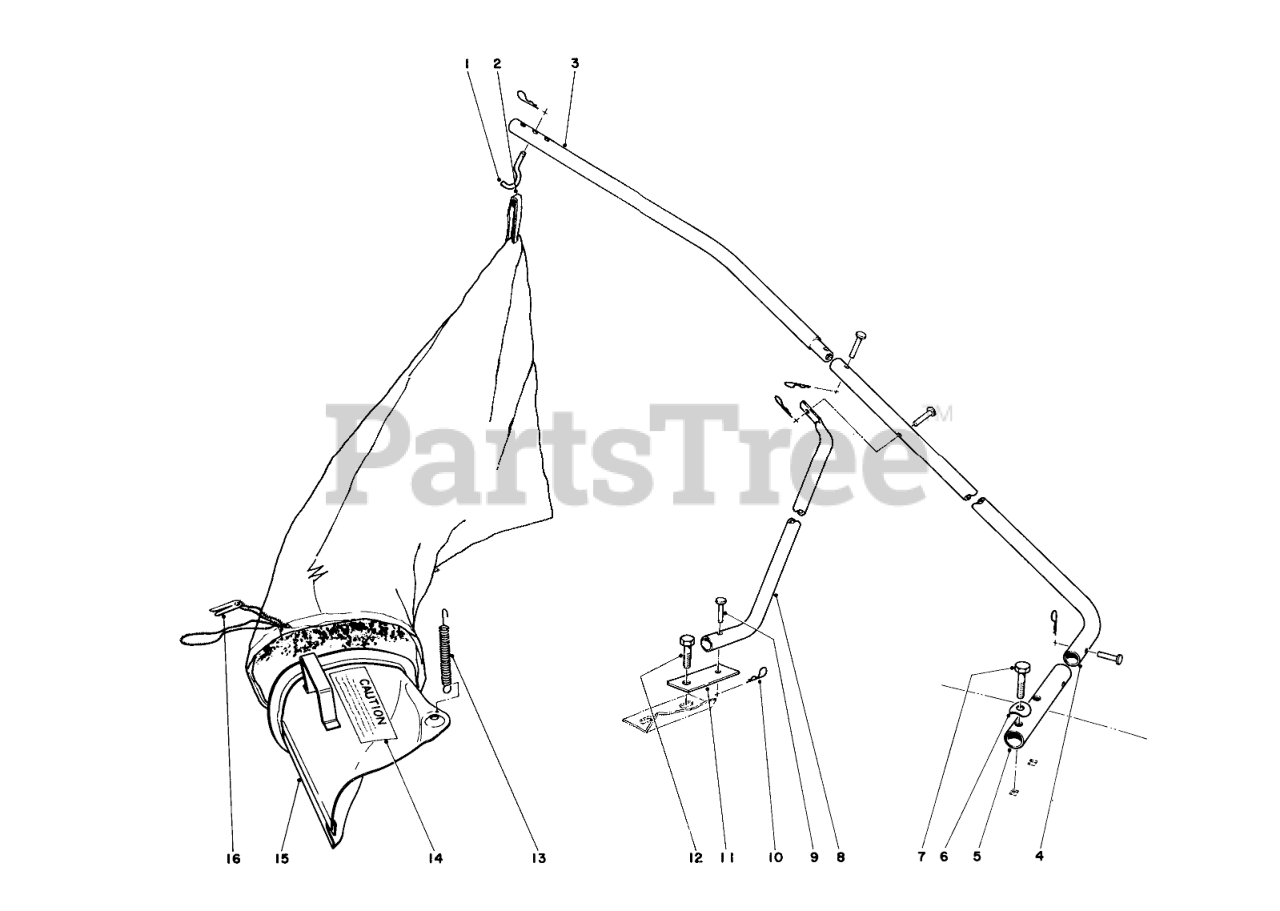

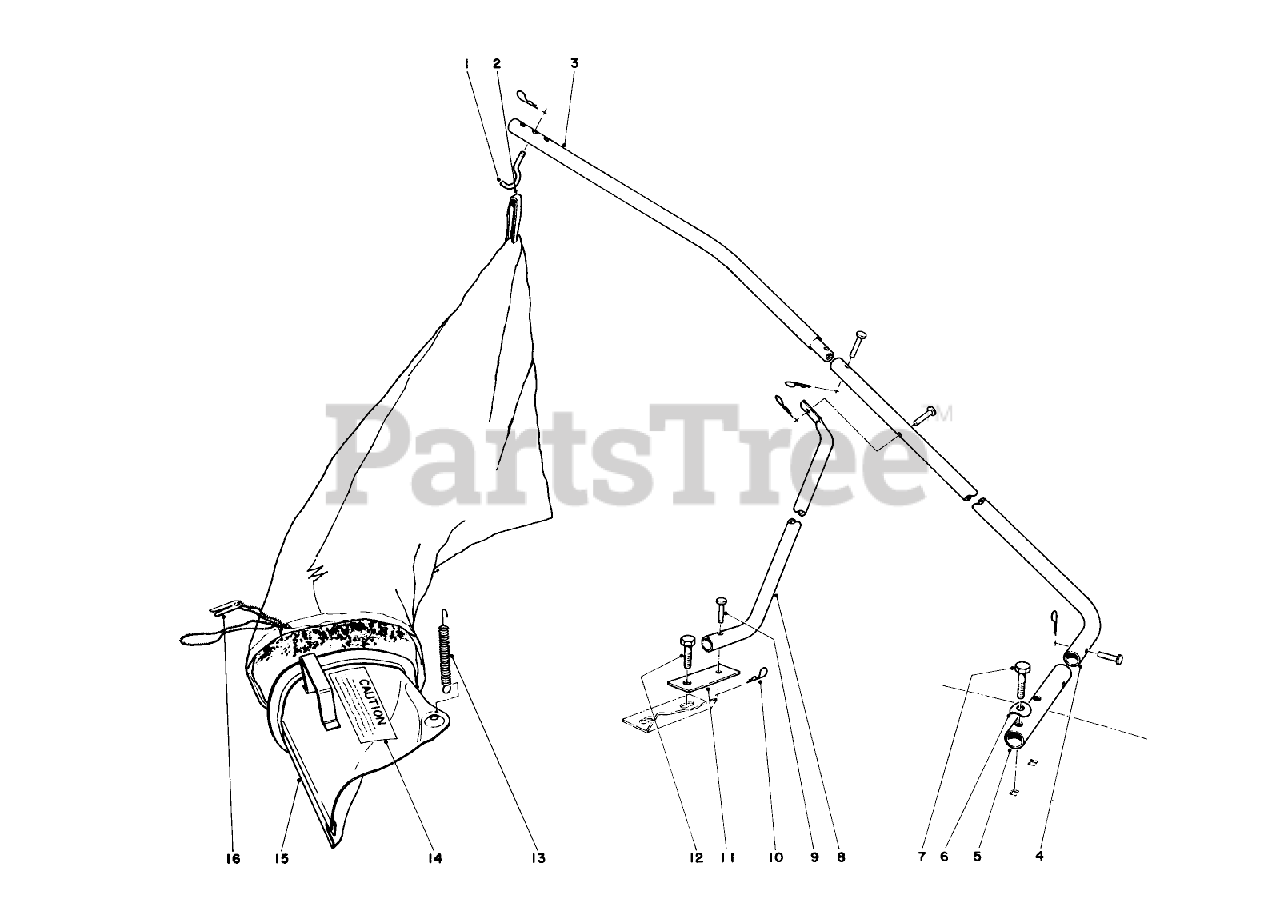

25" ROTARY BAGGER KIT Parts Diagram

  • Title

1

Toro 3-2427

Hook

$

$

Not available

2

Toro 5-8729

Bag Assembly
(Superseded to 8-4719)

$

$

Not available

3

Toro 19-9130

Bag Arm-Rear Section

$

$

Currently unavailable

4

Toro 5-5092

Arm

$

$

Currently unavailable

5

Toro 5-5095

Socket-Bag Arm

$

$

Currently unavailable

6

Toro 5-5096

Curved Washer

$

$

Currently unavailable

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-5093

Brace

$

$

Currently unavailable

9

Toro 3-2440

Pin

$

$

Not available

10

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

11

Toro 5-5094

Brace Support

$

$

Currently unavailable

12

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 12-9090

Spring

$

$

Not available

14

Toro 12-4090

Decal

$

$

Currently unavailable

15

Toro 17-6430

Bag Chute (Incl. Ref. Nos. 13 & 14)

$

$

Not available

16

Toro 3-2781

BAG CORD FASTENER

$6.99

$

Usually ships in 3-6 days

0
