18A-717-765 - Bolens Walk-Behind Mower, Electric (2004) General Assembly Parts Diagram

Walk-Behind Mower, Electric

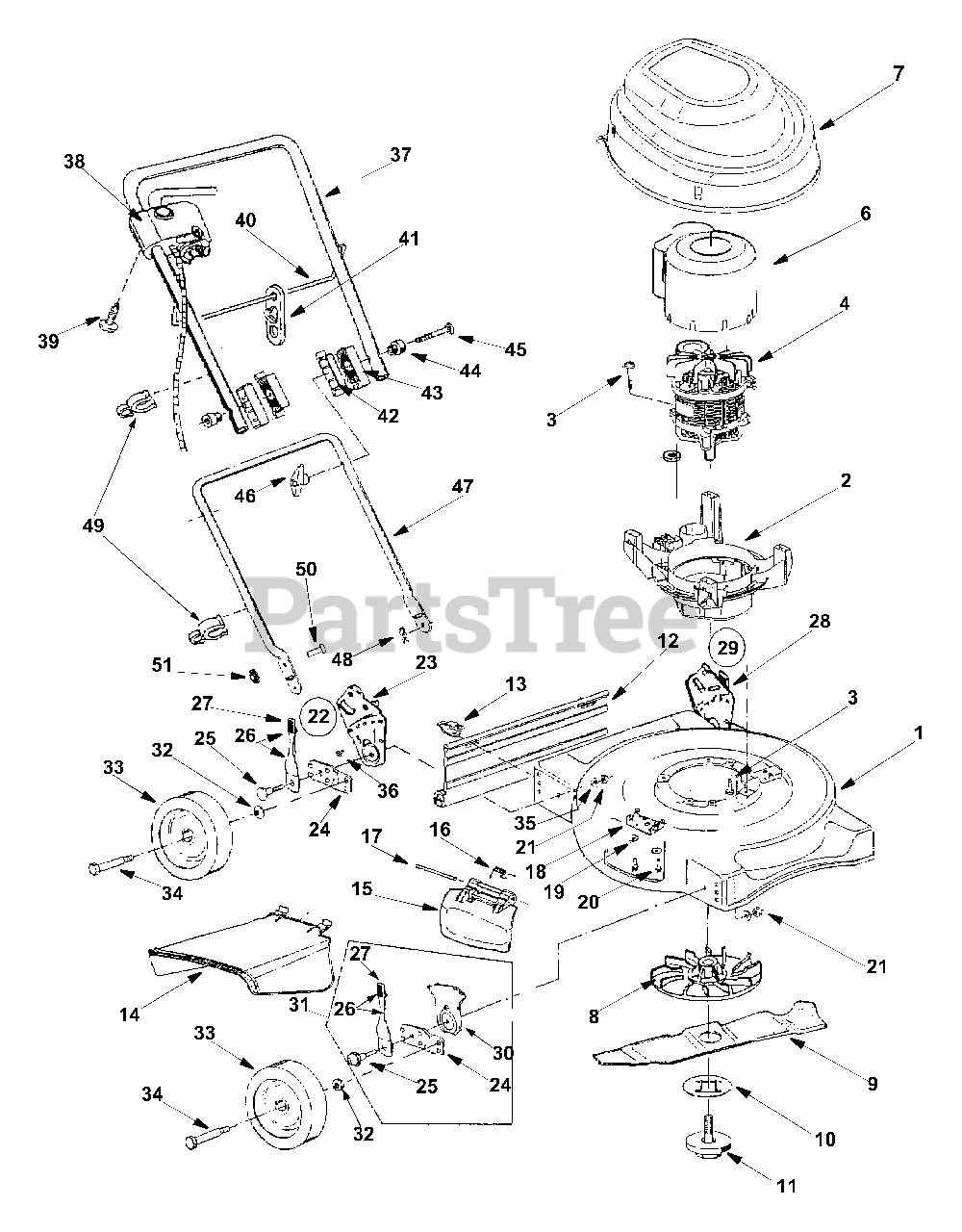

General Assembly Parts Diagram

  • Title
1

MTD 682-0263-0709

18" Deck Green

$

$

Not available

2

MTD 731-2425

Motor Base

$

$

Not available

3

MTD 710-1756

Screw, M7 x 25

$

$

Not available

4

MTD 724-0309

Electric Motor, 115V, 1500W
(Superseded to 924-0309)

$

$

Not available

6

MTD 731-2400

Air Guide Cover

$

$

Not available

$

$

Not available

8

MTD 631-0132

Blade Hub Assembly

$

$

Not available

9

MTD 742-0827

Mulching Blade

$37.99

$

Usually ships in 3-6 days

0

10

MTD 782-7051

Blade Locking Plate

$11.99

$

In Stock, only 1 left!

0

11

MTD 624-0078

Blade Screw

$28.99

$

In Stock, only 1 left!

0

12

MTD 731-2415

Trailing Shield

$

$

Not available

13

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

14

MTD 731-1409B

Side Discharge Deflector

$28.99

$

In Stock, Qty 5

0

15

MTD 682-7002

Mulch Plug

$

$

Not available

16

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

17

MTD 747-2025

Hinge Pin

$

$

Not available

18

MTD 782-7006

Hinged Plug Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

19

MTD 736-0270

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0431

Flange Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

MTD 682-3000A

Handle Bracket Assy. RH
(Superseded to 753-05962)

Note: (Includes #23-27)

$65.99

$

Usually ships in 3-6 days

0

23

MTD 782-3000A

Handle Bracket RH

$

$

Not available

24

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

25

MTD 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

26

MTD 14832

Lever and Knob Ass'y.
(Superseded to 94832)

Note: (Incl #27)

$10.99

$

In Stock, only 3 left!

0

27

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

28

MTD 782-3001A

Handle Bracket LH

$

$

Not available

29

MTD 682-3001A

Handle Bracket Assembly LH
(Superseded to 753-05962)

Note: (Includes #24-28)

$65.99

$

Usually ships in 3-6 days

0

30

MTD 15261A

Adjusting Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

31

MTD 14578

Height Adjustment Assembly RH
(Superseded to 753-06761)

Note: (Includes #24-27,30)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adjustment Assembly LH
(Superseded to 753-06761)

Note: (Includes #24-27,30)

$65.99

$

In Stock, Qty 7

0

32

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

33

MTD 734-1987

Wheel

$23.99

$

In Stock, Qty 5

0

34

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

35

MTD 736-0356

Bell Washer
(Superseded to 936-0356)

$

$

Not available

36

MTD 710-1017

Screw

$8.49

$

In Stock, Qty 9

0

37

MTD 749-1310-0637

Upper Handle

$

$

Not available

38

MTD 725-04074

Switch Plug Combination
(Superseded to 925-04074)

$

$

Not available

39

MTD 710-1757

Screw

$

$

Not available

40

MTD 747-1094

Guide Rod

$

$

Not available

41

MTD 726-0368

Cord Restraint

Variations

MTD 726-0368-0637

RESTRAINT-CORD - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

42

MTD 731-1267

Lower Handle Insulator

$

$

Not available

43

MTD 731-1268

Upper Handle Insulator

$16.99

$

Usually ships in 3-6 days

0

44

MTD 731-1388

Insulating Knob Spacer

$

$

Not available

45

MTD 710-0450

Carriage Bolt

$6.49

$

Usually ships in 3-6 days

0

46

MTD 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

47

MTD 749-0885

Lower Handle

Variations

MTD 749-0885-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

49

MTD 731-2422

Cable Guide

$15.99

$

Usually ships in 3-6 days

0

50

MTD 710-0924

Screw

$4.49

$

In Stock, Qty 20+

0

51

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0
