18A-407-000 - Yard Machines Walk-Behind Mower, Electric (1998) Cord & Switch Assembly (P/N 625-0050) Parts Diagram

Walk-Behind Mower, Electric

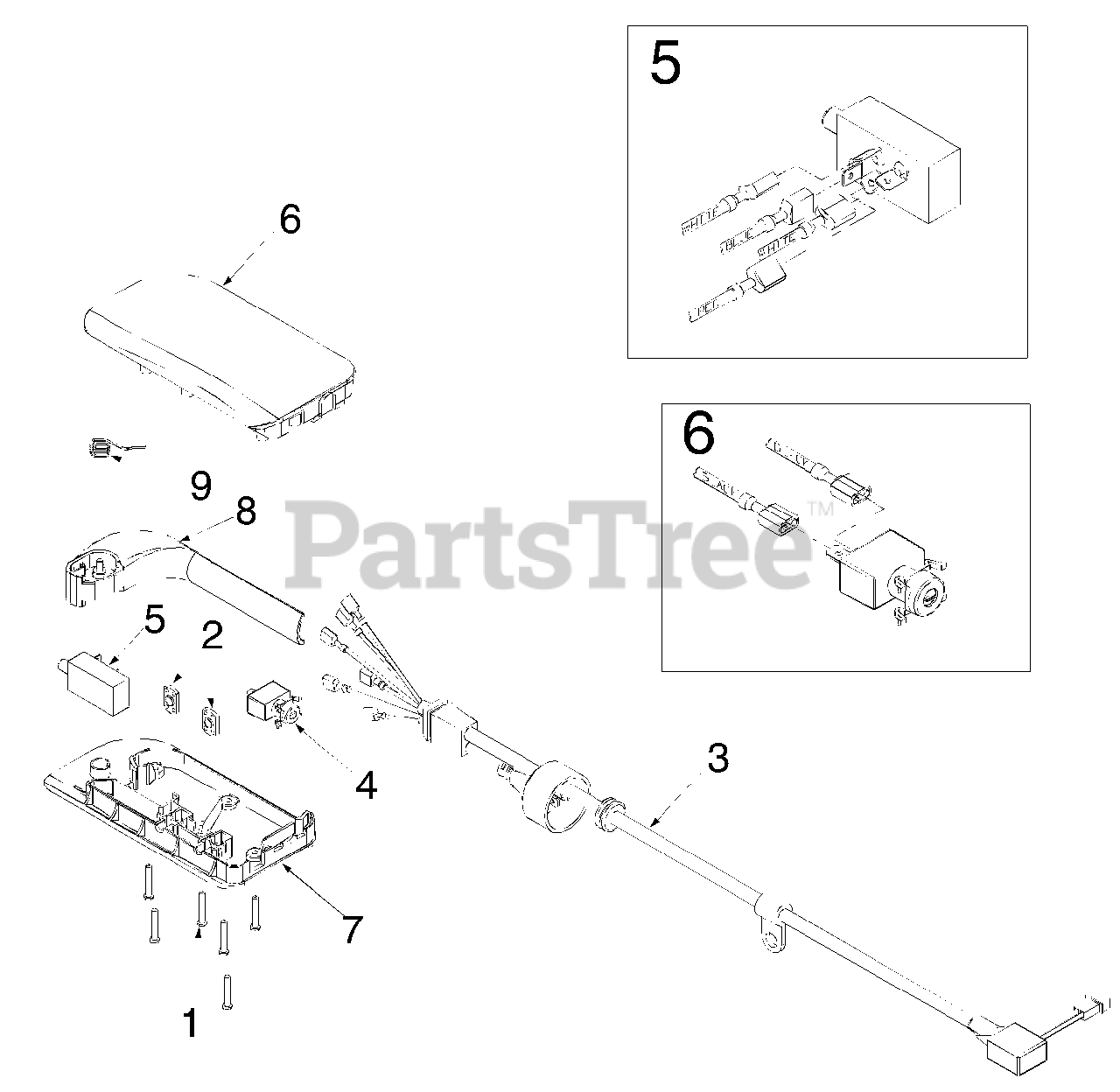

Cord & Switch Assembly (P/N 625-0050) Parts Diagram

  • Title
1

MTD 710-1150

Scr. Hx. Lock #7-19 X 1.00 Lg.

$

$

Not available

2

MTD 712-0189

Nut Weld Tab 1/4-20 Thd.

$

$

Not available

3

MTD 724-0248

Cord W/ Plug

$

$

Not available

4

MTD 725-1712

Circuit Breaker
(Superseded to 925-1712)

$39.99

$

Usually ships in 3-6 days

0

5

MTD 725-1731

Switch

$

$

Not available

6

MTD 731-1985

Upper Switch Housing

$

$

Not available

7

MTD 731-1986

Lower Switch Housing

$

$

Not available

8

MTD 731-1987

Control Lever

$

$

Not available

9

MTD 732-0935

Torsion Spring

$

$

Not available
