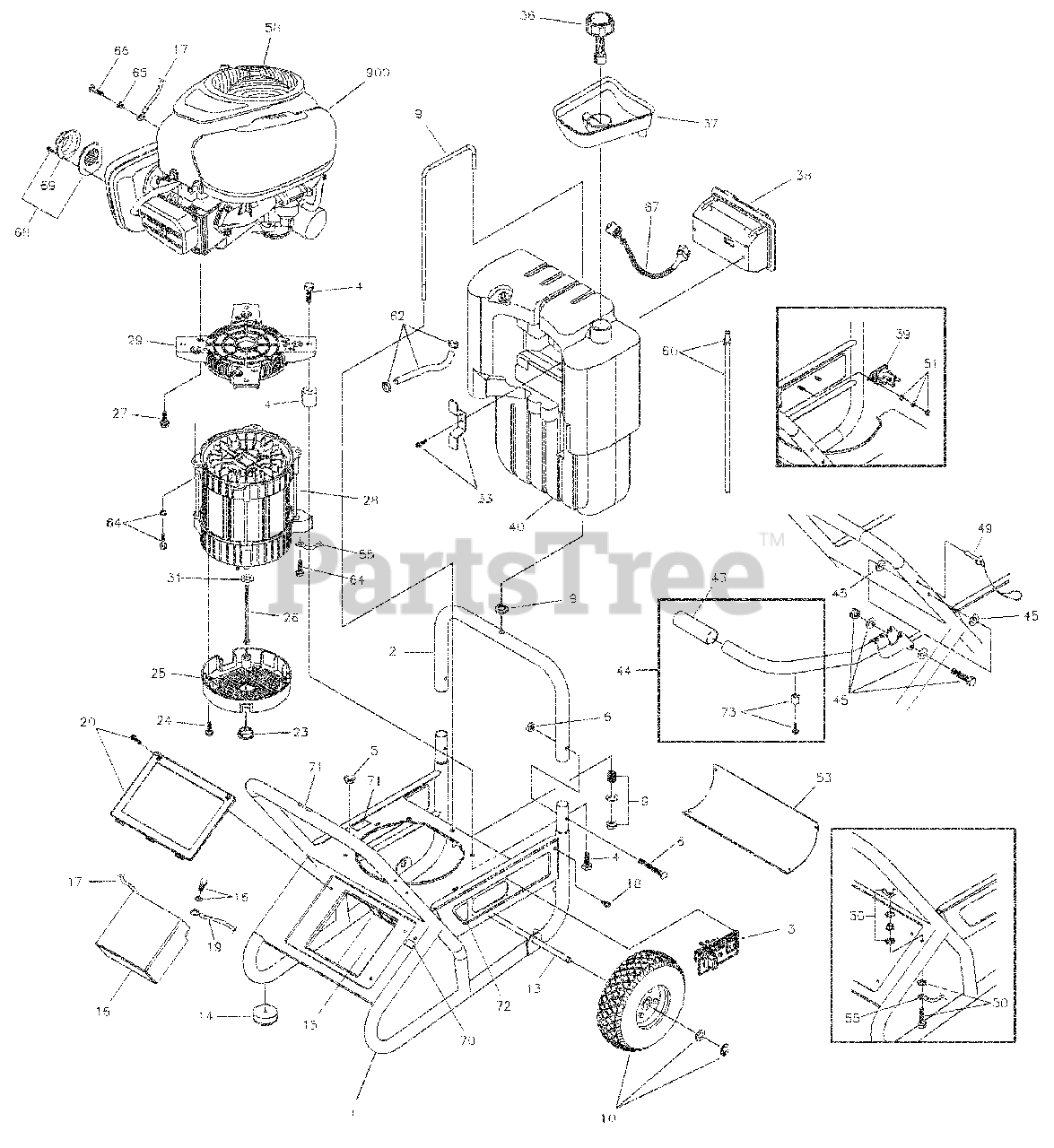

1894-0 - Generac 7,000 Watt Portable Generator Main Unit Parts Diagram

7,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M191821GS

CRADLE

$

$

Not available

2

Briggs & Stratton M193086GS

CRADLE,Top

$65.99

$

Usually ships in 2-12 days

0

3

NSP

ASSY, DC Control Panel

Note: (see "Control Panel")

$

$

Not available

4

Briggs & Stratton 194727GS

KIT,Vibration Mount, Eng/Alt

$32.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 186173GS

BUSHING, Snap

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 194720GS

KIT, Cradle Top Hardware

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194726GS

KIT, Rod Mounting Tank w/Hrdwr

$46.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 194509GS

KIT,Wheel

$52.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 191267GGS

AXLE

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192553GS

KIT,Vibration Mount Hardware (2 sets)

$16.99

$

In Stock, Qty 7

0

15

Briggs & Stratton 193320GS

STRIP, Foam

$12.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 193463GS

BATTERY, 12V w/Hardware

$172.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 185939LGS

CABLE, Blk, Battery to Engine

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192940GS

CLIP, Retainer, Fuel Hose

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 189302EGS

CABLE, Red, Battery to Solenoid

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 194722GS

KIT, Battery Cover w/Hrdwr

$

$

Not available

23

Briggs & Stratton 191190GS

CAP, Bolt, Rotor

$3.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191029GS

COVER, RBC, Plastic

$23.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 187365HGS

SCREW

$25.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 75246GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

28

NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Not available

29

Briggs & Stratton 191793GS

ADAPTER, Engine

$68.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194721GS

KIT, Retaining Brckt Panel

$21.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 191826GS

CAP, Fuel Gauge
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

37

Briggs & Stratton 192921GS

SHIELD, Fuel Fill

$24.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192277GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

39

Briggs & Stratton 691656

SOLENOID/BRACKET

$31.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 193345GS

ASSY,Tank, 7-Gallon, with Labels

$

$

Not available

43

Briggs & Stratton 192477GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton M193316GS

ASSY, Handle

Note: (Includes Items 43 & 73)

$51.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 194724GS

KIT, Fold down Handle Hardware

$

$

Not available

49

Briggs & Stratton B4135GS

PIN, Handle Release

$

$

Not available

50

Briggs & Stratton 194533GS

KIT, Grounding Hardware

$

$

Not available

51

Briggs & Stratton 194723GS

KIT, Solenoid Hardware

$3.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 193344GS

KIT, PLT, Skid, SRV

$39.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 192810GS

HARNESS, Ground

$40.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 192251GS

GUARD, Recoil

$19.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 194730GS

KIT, Hose, Fuel Overflow w/ Clamp

$23.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194265GS

KIT, Fuel Hose w/ Clamp
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

64

Briggs & Stratton 194728GS

KIT, Mounting Hrdwr Adpter Alt

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 22142GS

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

67

Briggs & Stratton 192809GS

HARNESS,AC

$55.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 392390

ARRESTOR, Spark with Screws
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 396903

DEFLECTOR, Muffler

$14.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 193504GS

DECAL, Battery Instructions

$12.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 194725GS

KIT, Bumper, Recess w/Hrdwr

$4.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 192508GS

HARNESS, DC

Note: Not Illustrated

$43.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191824GS

TRAY, Oil Drain

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192670GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5246

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061GS

OIL, Bottle

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189302FGS

CABLE, Red, Solenoid to Starter

Note: Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A3746GS

ASSY, Holder Fuse

Note: Not Illustrated

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193347GS

KIT, Hardware, Battery Term.

Note: Not Illustrated

$2.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193410GS

KIT, Decal, 01894

Note: Not Illustrated

$111.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, Qty 8

0
