18886 - Gravely Tiller for 800, 8000 & Professional G 4-Wheel Tractor REAR TILLER Parts Diagram

Tiller for 800, 8000 & Professional G 4-Wheel Tractor

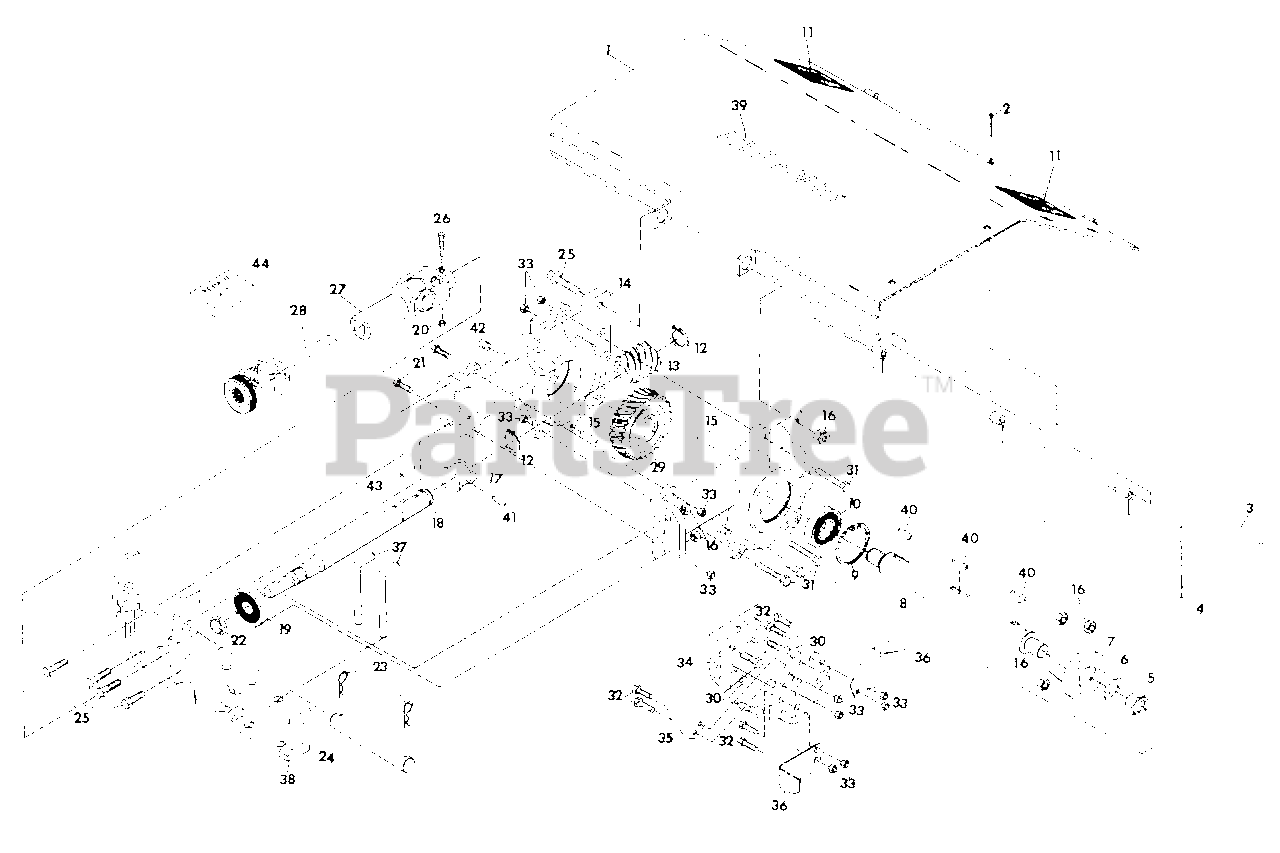

REAR TILLER Parts Diagram

  • Title

1

Gravely 018902

HOOD
(Superseded to 08711000)

$

$

Not available

2

Gravely 137946

PIN, COTTER 1/8X1/2
(Superseded to 06711800)

$

$

Not available

3

Gravely 018911

ROD
(Superseded to 08711900)

$

$

Not available

4

Gravely 018909

SKIRT
(Superseded to 08711700)

$

$

Not available

5

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

6

Gravely 018885

WASHER
(Superseded to 06432400)

$

$

Not available

7

Gravely 018884

HUB
(Superseded to 08710200)

$

$

Not available

8

Gravely 018881

AXLE

$

$

Not available

9

Gravely 018872

RING, RETAINING
(Superseded to 05713000)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 018873

BEARING, BALL
(Superseded to 05421100)

$

$

Not available

11

Gravely 019479

DECAL, WARNING
(Superseded to 05200700)

$

$

Not available

12

Gravely 017966

RING, RETAINING
(Superseded to 05712200)

$

$

Not available

13

Gravely 018877

GEAR, WORM
(Superseded to 08709700)

$

$

Not available

14

Gravely 019372

HOUSING, ASM.
(Superseded to 08714500)

$

$

Not available

15

Gravely 003184

PIN, DOWEL 3/8 X .75
(Superseded to 05809500)

$

$

Not available

16

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 018878

BEARING, SLEEVE
(Superseded to 05518700)

$

$

Not available

18

Gravely 018875

SHAFT
(Superseded to 08709600)

$

$

Not available

19

Gravely 018879

BEARING, BALL
(Superseded to 05421200)

$38.99

$

In Stock, only 1 left!

0

20

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 180128

BOLT, HEX 3/8-16 X 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 018880

NUT, LOCK
(Superseded to 06527000)

$

$

Not available

23

Gravely 010405

HAIR PIN COTTER
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

24

Gravely 018908

ROD
(Superseded to 08711600)

$

$

Not available

25

Gravely 180181

BOLT, HEX 1/2-13 X 2
(Superseded to 05901929)

$

$

Not available

26

Gravely 180044

BOLT, HEX 1/4-20 X 2
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 013518

UNIVERSAL SHAFT, FEMALE END
(Superseded to 08700200)

$

$

Not available

28

Gravely 019074

UNIVERSAL SHAFT, MALE END
(Superseded to 08713900)

$646.99

$

Usually ships in 4-12 days

0

29

Gravely 018882

GEAR, WORM
(Superseded to 08710100)

$

$

Not available

30

Gravely 180179

BOLT, HEX 1/2-13 X 1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 187070

BOLT, HEX 3/8-16 X 2.625
(Superseded to 05937900)

$

$

Not available

32

Gravely 180123

BOLT, HEX 3/8-16 X 1.125

$

$

Not available

33

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 018913

TINE HUB
(Superseded to 08712000)

$

$

Not available

35

Gravely 018939

TINE, RIGHT HAND
(Superseded to 08712400)

$

$

Not available

36

Gravely 018940

TINE, LEFT HAND
(Superseded to 08712500)

$

$

Not available

37

Gravely 018864

PIN, HITCH
(Superseded to 08653700)

$

$

Not available

38

Gravely 018889

BRACKET
(Superseded to 08710400)

$

$

Not available

39

Gravely 019365

DECAL, GRAVELY
(Superseded to 20278500)

$

$

Not available

40

Gravely 117986

KEY, WOODRUFF 3/8 X 1.5
(Superseded to 06607900)

$

$

Not available

41

Gravely 455160

PIN, SPRING .188 X .500
(Superseded to 05809100)

$

$

Not available

42

Gravely 444867

PLUG, PIPE 3/8 NPT
(Superseded to 07025700)

$

$

Not available

43

Gravely 117977

KEY, WOODRUFF 5/16 X 1
(Superseded to 06607800)

$3.99

$

Usually ships in 4-12 days

0

NS

Gravely 020573

REPAIR KIT FOR UNIVERSAL SHAFT
(Superseded to 03155800)

$

$

Not available
