18840 TE - Toro 122cm GrandStand Revolution Stand-On Mower (SN: 400000000 - 414299999) Battery Cable Assembly Parts Diagram

122cm GrandStand Revolution Stand-On Mower

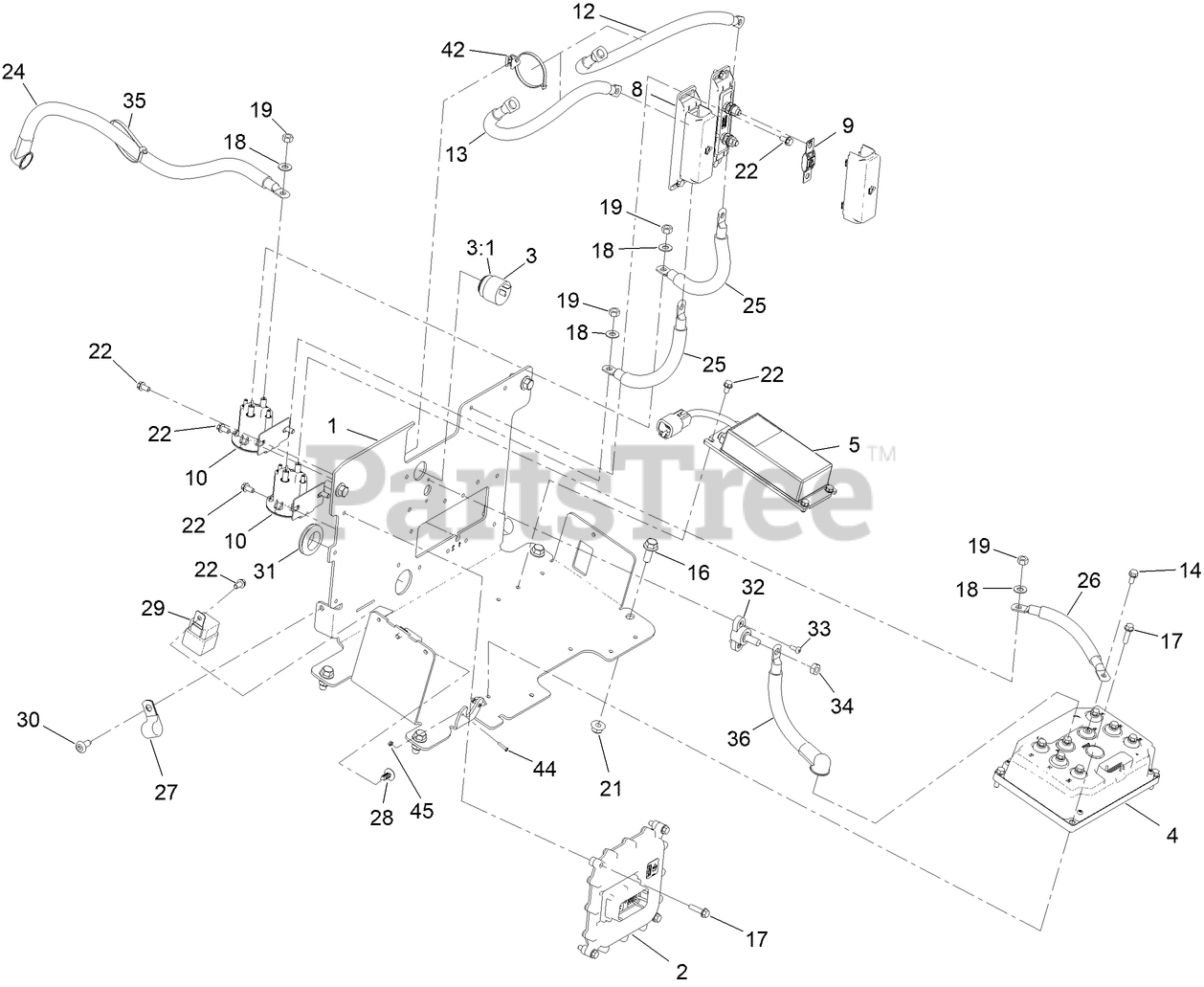

Battery Cable Assembly Parts Diagram

  • Title
1

Toro 145-3563-03

PLATE-MNT, ELECTRICAL

$

$

Currently unavailable

2

Toro 127-2770

CONTROLLER

$1625.99

$

Usually ships in 3-6 days

0

3

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

4

Toro 138-8984

INV/CTRLR-48V,DUAL 94Arms

$2300.99

$

Usually ships in 0 days

0

5

Toro 144-6975

CONVERTER DC-DC

$404.99

$

Usually ships in 3-6 days

0

8

Toro 145-4958

HOLDER-FUSE

$27.99

$

Usually ships in 3-6 days

0

9

Toro 122-2561

FUSE-200A

$18.99

$

Usually ships in 0 days

0

10

Toro 145-3542

CONTACTOR-DC, 12V

$87.99

$

Usually ships in 3-6 days

0

12

Toro 147-0332

CABLE-BATTERY, RD ASM

$85.99

$

Usually ships in 0 days

0

13

Toro 147-0331

CABLE-BATTERY, RD ASM

$81.99

$

Usually ships in 0 days

0

14

Toro 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

16

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

17

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

18

Toro 107-0279

WASHER

$1.99

$

Usually ships in 3-6 days

0

19

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

24

Toro 147-0228

CABLE-BATTERY, RD ASM

$100.99

$

Usually ships in 0 days

0

25

Toro 147-0225

CABLE-BATTERY, RD ASM

$60.99

$

Usually ships in 0 days

0

26

Toro 147-0237

CABLE-BATTERY, RD ASM

$60.99

$

Usually ships in 0 days

0

27

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

28

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 10

0

29

Toro 70-1480

RELAY

$112.99

$

Usually ships in 3-6 days

0

30

$1.49

$

In Stock, Qty 6

0

31

Toro 120-3265

GROMMET

$4.49

$

Usually ships in 3-6 days

0

32

Toro 110-8823

BLOCK-JUNCTION

$51.99

$

Usually ships in 3-6 days

0

33

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

34

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

35

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

36

Toro 147-0240

CABLE-BATTERY, BK ASM

$66.99

$

Usually ships in 0 days

0

42

Toro 32180-150

CLIP-HARNESS. EDGE, W/TIE-WRAP

$8.49

$

Usually ships in 3-6 days

0

44

Toro 1-3084

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

45

Toro 9157324

NUT-HEX, NYL INS

$1.49

$

In Stock, Qty 7

0
