1882 (141-721-100) - Cub Cadet Super Garden Tractor (SN: 800000 - 821059) Pedestal, Instrument Panel & Engine Controls Parts Diagram

Super Garden Tractor

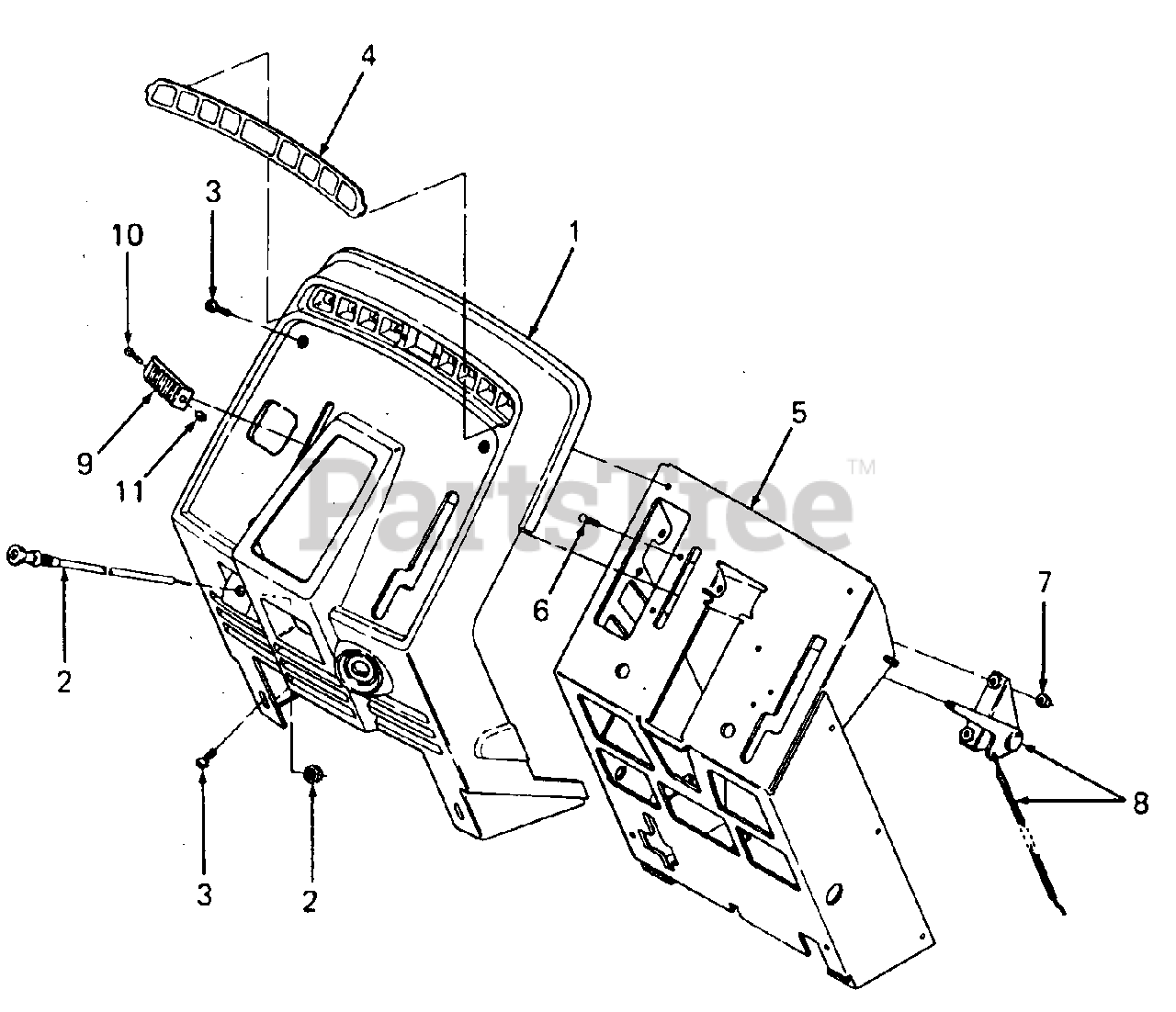

Pedestal, Instrument Panel & Engine Controls Parts Diagram

  • Title
1

Cub Cadet 731-3096

Panel, Instrument
(Superseded to 931-3096)

$

$

Not available

2

Cub Cadet 746-3029

Choke Cable w/Nut
(Superseded to 946-3029)

$48.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-3009

Screw, Pan Hd Cutting, #10-24 X .75 Lg

$6.99

$

In Stock, Qty 20+

0

4

Cub Cadet 779-3507

Label, Dash

$

$

Not available

5

Variations

Cub Cadet 703-1951-0498

PEDESTAL - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 710-0709

Stud, Self Clinching

$

$

Not available

7

Cub Cadet 712-3071

Nut, Hex Keps, #10-32
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 746-3028

Control, Throttle
(Superseded to 946-3028)

$

$

Not available

9

Cub Cadet 731-3106

Knob, Throttle
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-3217

Screw, Cross Rec Truss Hd, #8-32 X .38 Lg

$6.99

$

In Stock, Qty 7

0

11

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 10

0
