1882 (141-721-100) - Cub Cadet Super Garden Tractor (SN: 800000 - 821059) Battery Tray & Heat Baffle Parts Diagram

Super Garden Tractor

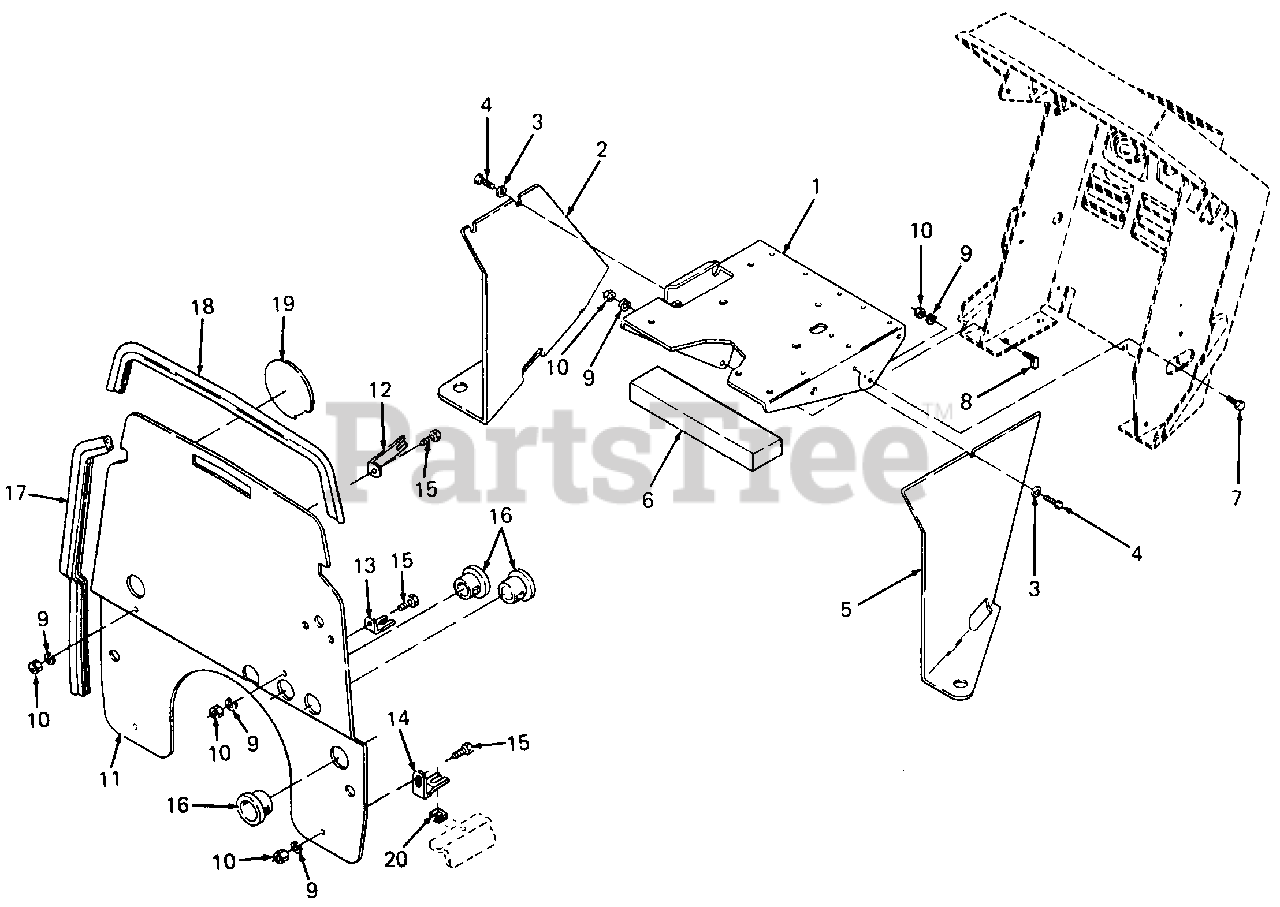

Battery Tray & Heat Baffle Parts Diagram

  • Title

1

Cub Cadet 703-1827

Tray Assy, Battery

$

$

Not available

2

Cub Cadet 703-1880

Baffle, Intake - RH

Note: (Used on Tractors w/Serial No. 811,500 & below)

$

$

Not available

3

Cub Cadet 736-0105

Washer, Bell, .380 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet 703-1879

Baffle, Intake - LH

Note: (Used on Tractors w/Serial No. 811,500 & below)

$

$

Not available

6

Cub Cadet 723-3058

Strip, Foam Gasket Sealing, 10.31 in. Lg

Note: (Used on Tractors w/Serial No. 811,500 & below)

$

$

Currently unavailable

7

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3012

Bolt, J-Type, 1/4-20

$

$

Not available

9

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 703-2056

Baffle, Heat

$

$

Not available

12

Cub Cadet 703-1997

L-Bracket, 1.9 Lg

$

$

Not available

13

Cub Cadet 703-1998

L-Bracket, 1.1 Lg

$

$

Not available

14

Cub Cadet 703-2057

L-Bracket

$

$

Not available

15

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .5 GR5

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 723-3059

Seal, Heat Baffle, 19" Lg

$21.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 723-3060

Seal, Heat Baffle, 17" Lg

$

$

Not available

19

Cub Cadet 735-3040

Insulator, "+" Battery Post

$

$

Not available

20

Cub Cadet 726-0211

Nut, U-Type, 5/16-18

$4.49

$

In Stock, only 1 left!

0
