18757 TE - Toro 132cm Z Master Revolution Zero-Turn Mower (SN: 400000000 - 999999999) Deck Assembly Parts Diagram

132cm Z Master Revolution Zero-Turn Mower

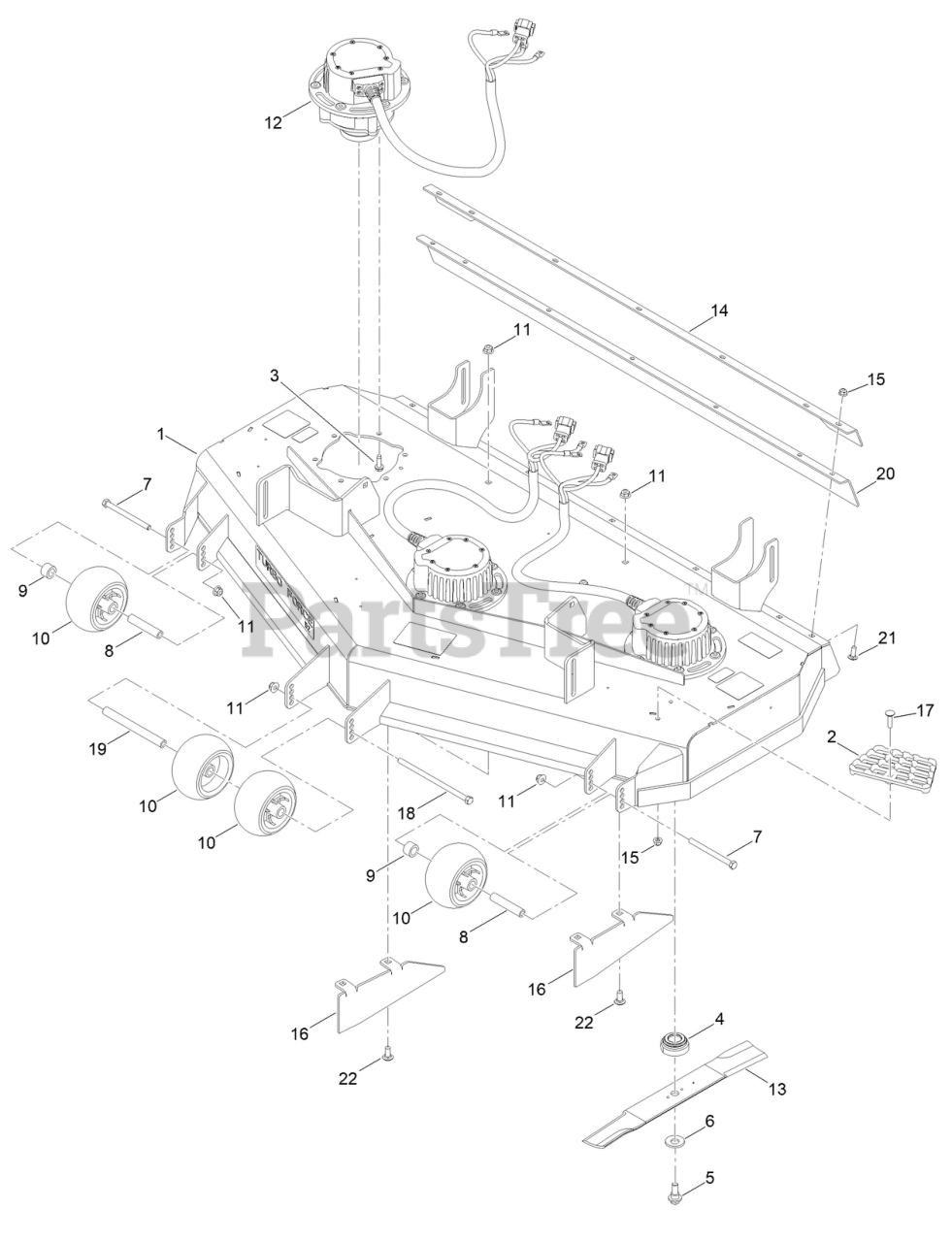

Deck Assembly Parts Diagram

  • Title

1

Toro 161-6840

DECK ASM-52IN, RD

$

$

Currently unavailable

2

Toro 126-4781-03

STEP-DECK

$28.99

$

In Stock, only 2 left!

0

3

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

0

4

Toro 145-3439

RETAINER-BLADE

$15.99

$

Usually ships in 3-6 days

0

5

Toro 145-3499

SCREW-SHOULDER,HWH

$8.99

$

Usually ships in 0 days

0

6

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, Qty 20+

0

7

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

8

Toro 133-2129

TUBE-SHAFTING

$14.99

$

In Stock, only 2 left!

0

9

Toro 133-2128

TUBE-SPACER

$17.99

$

In Stock, only 2 left!

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 147-1689

MOTOR/GEN-48V,

$1427.99

$

Usually ships in 3-6 days

0

13

Toro 145-3504-03

BLADE-18.0IN, MED SAIL

$29.99

$

Usually ships in 3-6 days

0

14

Toro 161-3430-01

DEFLECTOR, BRACKET-52

$

$

Currently unavailable

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 161-3437-01

BAFFLE-LONG

$

$

Currently unavailable

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, Qty 20+

0

19

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

20

Toro 161-3431

GUARD-RUBBER CTR

$

$

Currently unavailable

21

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

22

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 6

0
