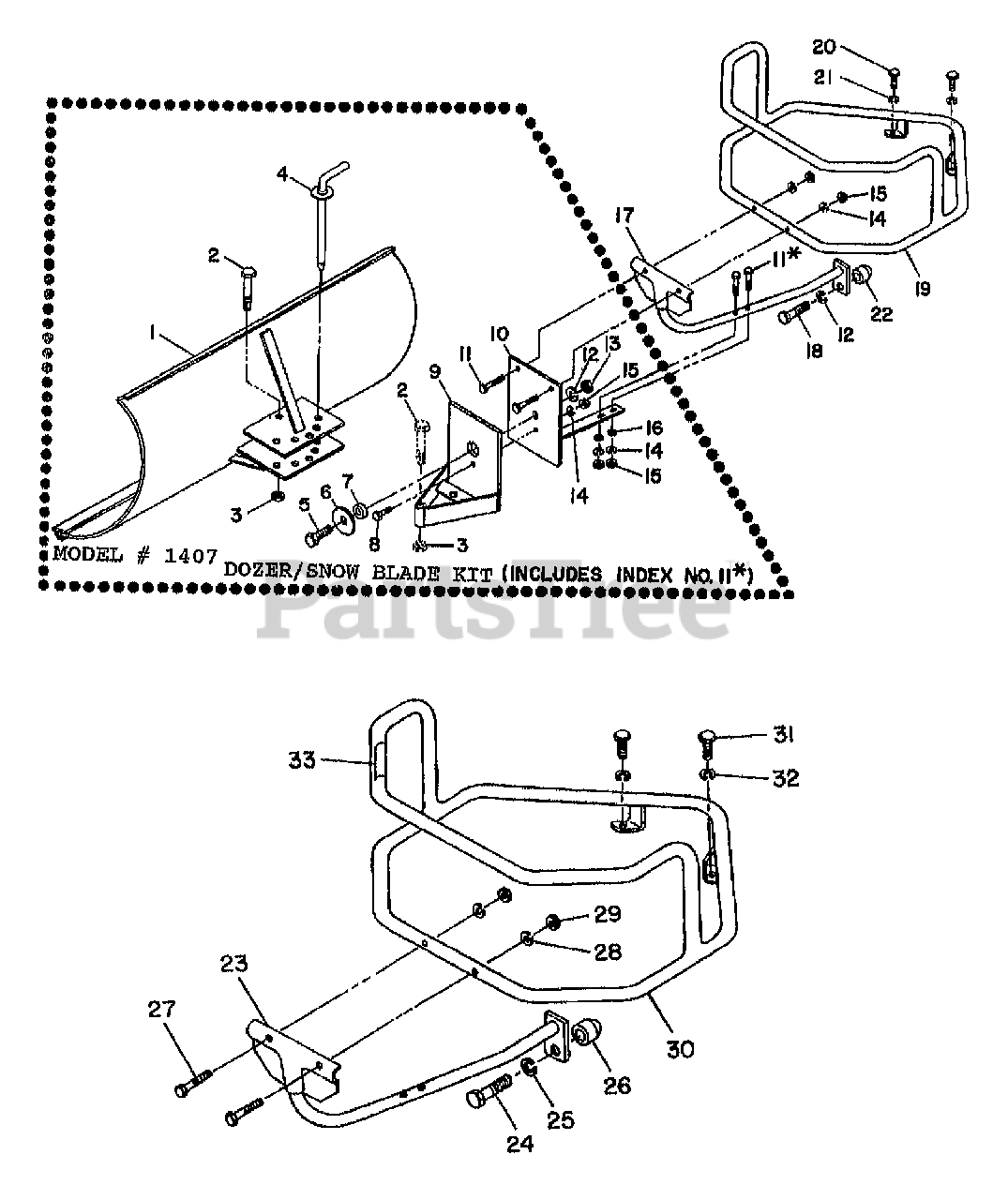

1873 - Troy-Bilt Dozer/Snow Blade & 1684 Bumper Kit TILLER ATTACHMENT Parts Diagram

Dozer/Snow Blade & 1684 Bumper Kit

TILLER ATTACHMENT Parts Diagram

  • Title

1

MTD 1160

BLADE-DOZER PAINTED
(Superseded to GW-1160)

$

$

Not available

2

Troy-Bilt 9717

SCR-HH 1/2-13X3.0 G5

$

$

Currently unavailable

3

Troy-Bilt 9804

NUT-H/LK 1/2-13

$

$

Currently unavailable

4

Troy-Bilt 1158

INDEX PIN-DOZER PNT

$

$

Currently unavailable

5

Troy-Bilt 9767

SCR-HH 1/2-13X1.5 G5 ZP

$

$

Currently unavailable

6

MTD 9905

WASHER-PLAIN 1/2 ZP

$

$

Not available

7

MTD 1416

BUSHING-.75X.51X.41

$

$

Not available

8

Troy-Bilt 9705

SCR-HH 5/16-18X1.25 G5ZP

$

$

Currently unavailable

9

Troy-Bilt 1162

A FRAME-DOZER PNT

$

$

Currently unavailable

10

Troy-Bilt 1164

BRKT-MTG DOZER PNT

$

$

Currently unavailable

11

Troy-Bilt 9759

SCR-HH 5/16-18X1.75

$

$

Currently unavailable

12

Troy-Bilt 9914

WASHER-LK .5

$

$

Currently unavailable

13

Troy-Bilt 9803

NUT-HEX JAM 1/2-13

$

$

Currently unavailable

14

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

15

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

16

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

17

Troy-Bilt 2659

BRACE-BUMPER BOTTOM PNT
(Superseded to 1910730001)

$83.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 9716

SCR-HH 1/2-13X2.0 G5 ZP

$

$

Currently unavailable

19

MTD 2658

GUARD-BUMPER HORSE RED
(Superseded to 690-105-0016)

$

$

Not available

20

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

21

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

22

MTD 1561

SPACER-1X.531X1.125 ZP

$

$

Not available

Troy-Bilt 1684

BUMPER ATTACHMENT (INC. 23 - 33)

$

$

Currently unavailable

23

Troy-Bilt 1562

BRACE-BUMPER BOTTOM PNT

$

$

Currently unavailable

24

Troy-Bilt 9716

SCR-HH 1/2-13X2.0 G5 ZP

$

$

Currently unavailable

25

Troy-Bilt 9914

WASHER-LK .5

$

$

Currently unavailable

26

MTD 1561

SPACER-1X.531X1.125 ZP

$

$

Not available

27

Troy-Bilt 9758

SCR-HH 5/16-18X1.5 G5 ZP

$

$

Currently unavailable

28

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

29

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

30

Troy-Bilt 1683

GUARD-BUMPER HORSE RED

$

$

Currently unavailable

31

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

32

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

33

Troy-Bilt 1448

DECAL-BUMPER
(Superseded to GW-1448)

$6.49

$

Usually ships in 3-6 days

0
