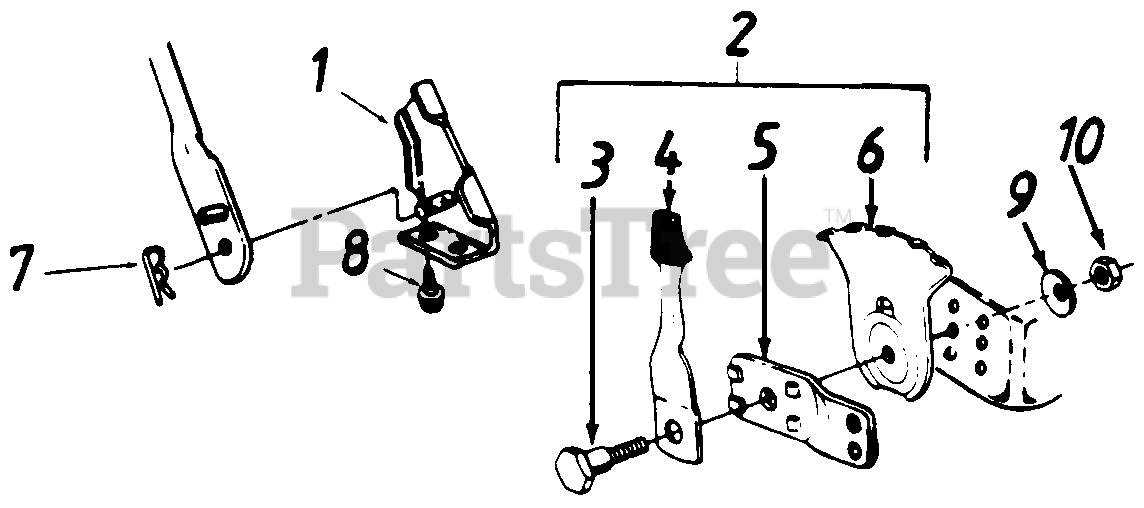

187-070-014 - MTD Walk-Behind Mower, Electric (1987) (Moores) Parts Parts Diagram

Walk-Behind Mower, Electric

Parts Parts Diagram

  • Title

1

MTD 12935

Handle Mount Brkt. Ass'y.- L.H.

$

$

Not available

MTD 12936

Handle Mount Brkt. Ass'y.-R.H.

Note: (Not Shown)

$

$

Not available

2

MTD 14575

Height Adjuster Ass'y. Comp.-R.H.

Variations

MTD 14575-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 14579

Height Adjuster Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

3

MTD 738-0507

Shouldor Bolt .500" Dia. x .357
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

4

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

5

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

6

MTD 15261

Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

7

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0603

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

9

MTD 736-0356

Belleville Wash. .39 I.D. x 1.4 O.D.
(Superseded to 936-0356)

$

$

Not available

10

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

MTD 738-0102

Rear Axle Bolt

$9.99

$

In Stock, Qty 10

0
