1864 (14A-684-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Brakes And Connections Parts Diagram

Garden Tractor

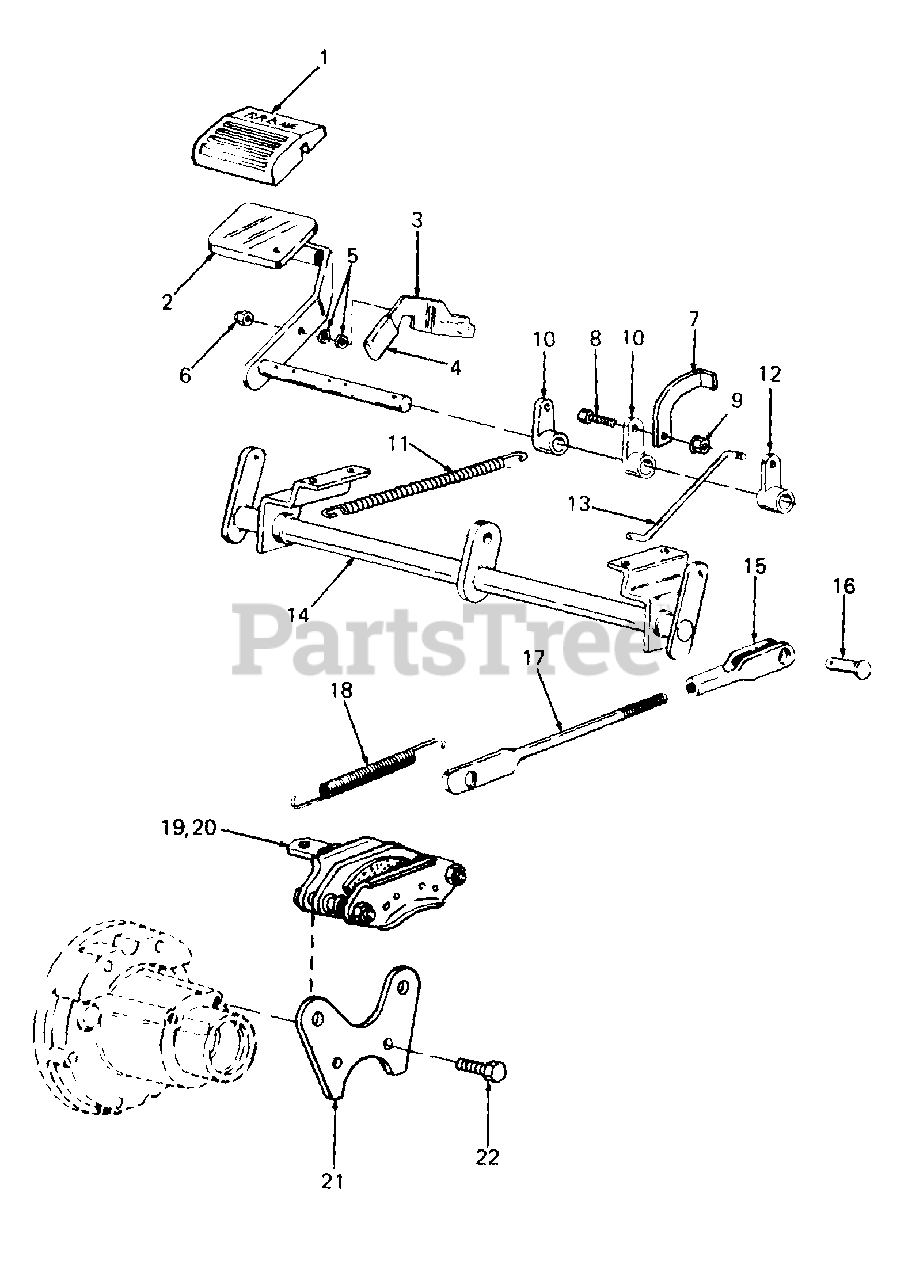

Brakes And Connections Parts Diagram

  • Title

1

Cub Cadet 724-3004

Pad, Brake Pedal
(Superseded to 924-3000)

$19.99

$

In Stock, Qty 9

0

2

Cub Cadet 703-0845A

Pedal Assy, Brake

$

$

Currently unavailable

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia x 1.50 Lg

$9.49

$

In Stock, Qty 5

0

3

Cub Cadet 703-1393

Bracket, Parking Brake

Variations

Cub Cadet 703-1393-0498

BRACKET ASSEMBLY-PARKING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 720-3019

Grip, Parking Brake
(Superseded to 920-3019)

$

$

Not available

5

Cub Cadet 736-3001

Washer, Wave, 1/4 Dia

$

$

Not available

6

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 703-2280

Bracket, Start Switch
(Superseded to 703-2280-0637)

Variations

Cub Cadet 703-2280-0498

Start Switch Bracket - OLD CUB YELLOW (0498)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2280-0637

Start Switch Bracket - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 x .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 712-3005

Nut, Hex Flanged Lock, 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 748-3006

Lever, Brake

Variations

Cub Cadet 748-3006-0498

BRAKE LEVER ROD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 748-3006-0637

BRAKE LEVER ROD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 748-3006-0685

BRAKE LEVER ROD - CUB BLUE (0685)

$

$

Not available

Cub Cadet 748-3006-0691

BRAKE LEVER ROD - BLACK JACK (0691)

$

$

Not available

Cub Cadet 748-3006-0692

BRAKE LEVER ROD - AGWAY BLUE (0692)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia x 1.50 Lg

$9.49

$

In Stock, Qty 5

0

11

Cub Cadet 732-3010

Spring, Return
(Superseded to 932-3010)

$

$

Not available

12

Cub Cadet 703-0900

Lever, Brake

Variations

Cub Cadet 703-0900-0498

LEVER ASSEMBLY-BRAKE - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia x 1.50 Lg

$9.49

$

In Stock, Qty 5

0

13

Cub Cadet 747-3109A

Rod, Brake Link

Variations

Cub Cadet 747-3109A-0498

BRAKE ROD LINK (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .063 Thk

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia x .75 Lg

$4.99

$

In Stock, Qty 13

0

14

Cub Cadet 703-1395

Shaft Assy, Brake

Variations

Cub Cadet 703-1395-0498

BRAKE SHAFT ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 719-3013

Clevis, Adjustment

$28.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-3010

Pin, Clevis, 3/8 Dia x 1.0 Lg
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia x .75 Lg

$4.49

$

In Stock, Qty 12

0

17

Cub Cadet 711-3130

Rod, Brake

$

$

Not available

18

Cub Cadet 732-0260

Spring, Tension
(Superseded to 932-0260)

$20.99

$

In Stock, only 3 left!

0

19

Cub Cadet 661-3001

Brake Kit, RH Caliper

Note: (Includes Ref No. 21)

$

$

Not available

20

Cub Cadet 661-3002

Brake Kit, LH Caliper

Note: (Not shown);(Includes Ref No. 21)

$

$

Not available

21

Cub Cadet 703-1787

Bracket, Brake Mounting

$

$

Not available

22

Cub Cadet 710-0643

Screw, Hex Cap, 5/16-18 x 1.0 Lg GR5

$6.99

$

In Stock, Qty 5

0
