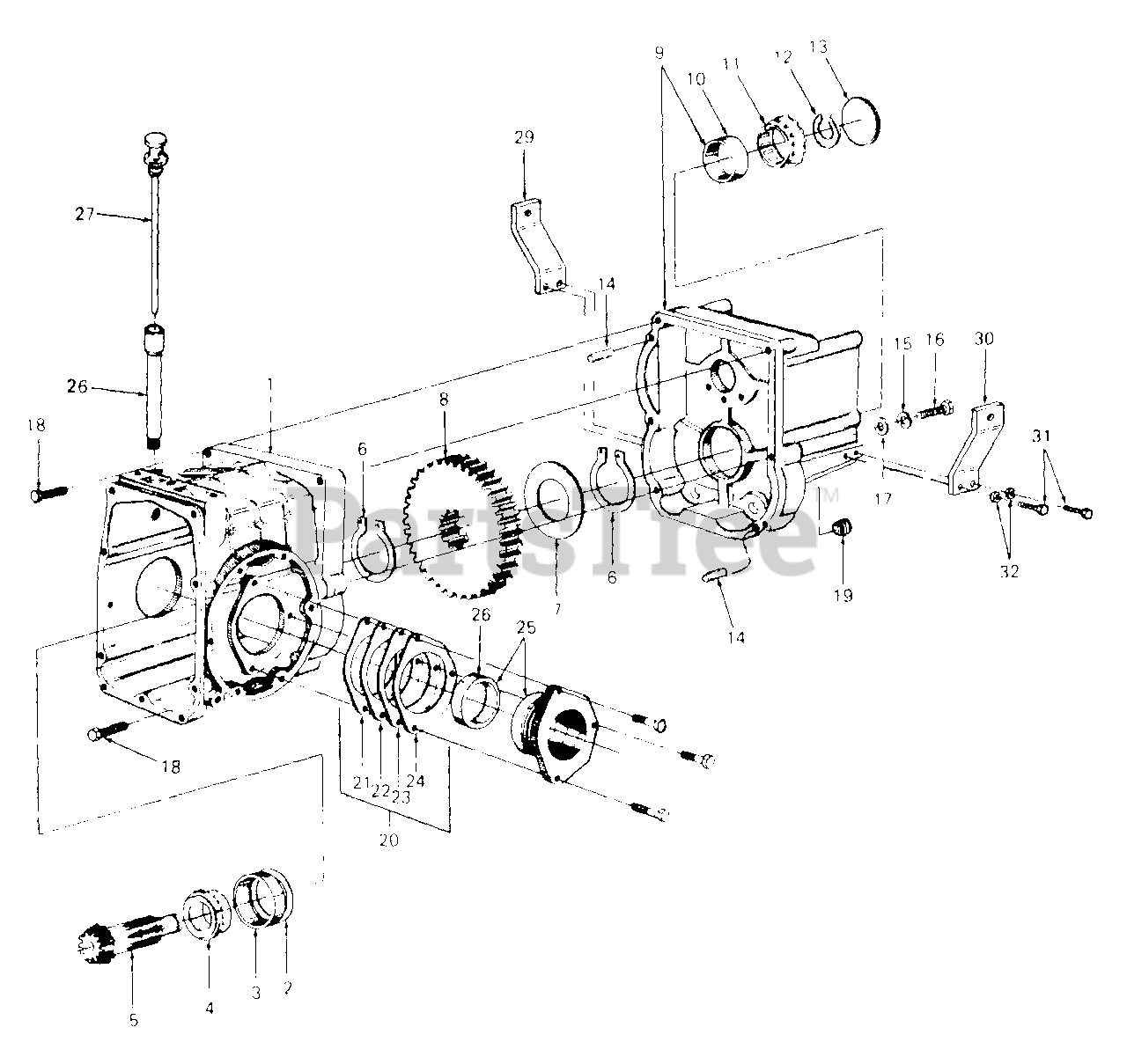

1864 (146-684-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Transmission - Rear And Adapter Housings Parts Diagram

Garden Tractor

Transmission - Rear And Adapter Housings Parts Diagram

  • Title

1

Cub Cadet 717-3204A

Housing Assy, Rear Transaxle (Includes Ref No. 2 & 3)

$

$

Not available

Cub Cadet 723-3034

Gasket, Eliminator, 24 cc Tube

$

$

Not available

Cub Cadet 723-3036

Primer, Gasket, 6 oz Can (For use with 723-3034)

$

$

Currently unavailable

Cub Cadet 723-3035

Remover, Gasket, 12 oz Can

$

$

Currently unavailable

2

Cub Cadet 717-3123

Shim, Rear Bearing Cup, .004 Thk Qty of AR can also be used

$

$

Not available

Cub Cadet 717-3124

Shim, Rear Bearing Cup, .014 Thk Qty of AR can also be used

$

$

Not available

Cub Cadet 717-3125

Shim, Rear Bearing Cup, .007 Thk Qty of AR can also be used

$

$

Not available

3

Cub Cadet 741-0370

Cup, Roller Bearing

$25.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-0371

Cone, Roller Bearing

$

$

Not available

5

Cub Cadet 717-3070

Shaft, Bevel Pinion NOTE: Proper selection of Ref No. 12 is required when replacing 717-3070.

Note: Refer to the Drive System Section in the Garden Tractor Service Manual for the correct thickness.

$

$

Not available

6

Cub Cadet 716-0138

Ring, Retaining, 1.312 Dia

$

$

Not available

7

Cub Cadet 717-3146

Spacer, Gear

$

$

Not available

8

Cub Cadet 717-3141

Gear, Reduction - 66T

$

$

Not available

9

Cub Cadet 717-3202

Housing Assy, Adapter w/Cup Includes Ref No. 10

$

$

Not available

10

Cub Cadet 741-0372

Cup, Roller Bearing
(Superseded to 741-04548)

$8.99

$

In Stock, Qty 14

0

11

Cub Cadet 741-0373

Cone, Roller Bearing
(Superseded to 741-04549)

$19.99

$

In Stock, Qty 14

0

12

Cub Cadet 717-3127

Retainer, Front Bearing, .125 Thk

$

$

Not available

Cub Cadet 717-3128

Retainer, Front Bearing, .119 Thk
(Superseded to 917-3128)

$

$

Not available

Cub Cadet 717-3129

Retainer, Front Bearing, .113 Thk

$

$

Not available

Cub Cadet 717-3130

Retainer, Front Bearing, .107 Thk

$

$

Not available

Cub Cadet 717-3131

Retainer, Front Bearing, .101 Thk
(Superseded to 917-3131)

$

$

Not available

Cub Cadet 717-3132

Retainer, Front Bearing, .131 Thk

$

$

Not available

13

Cub Cadet 726-0216

Plug, Expansion, 2.12 OD

$

$

Not available

14

Cub Cadet 715-0146

Pin, Dowel, 3/8 Dia x 5/8 Lg

$

$

Not available

15

Cub Cadet 736-0141

Washer, Spring, .445 x .75 x .017 Thk
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0850

Screw, Hex Cap, 7/16-14 x 2.5 Lg GR5

$

$

Not available

17

Cub Cadet 736-0226

Washer, Flat, .46 x .875 x .060 Thk
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-3238

Bolt, Hex Patch, 7/16-14 x 1.75 Lg GR5

$

$

Not available

19

Cub Cadet 737-0177

Plug, Drain NOTE: Use Teflon Sealing Tape

$

$

Not available

20

Cub Cadet 759-3430

Shim Package (Includes Ref No. 21 (Qty 3), 22 (Qty 4), 23 (Qty 2) & 24 (Qty 2)

$

$

Not available

21

Cub Cadet 717-3097

Shim, Bearing Retainer, .004 Thk

$

$

Not available

22

Cub Cadet 717-3098

Shim, Bearing Retainer, .007 Thk

$

$

Not available

23

Cub Cadet 717-3099

Shim, Bearing Retainer, .014 Thk

$37.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 717-3100

Shim, Bearing Retainer, .028 Thk

$

$

Not available

25

Cub Cadet 618-3039

Retainer Assy, Bearing w/Cup Includes Ref No. 26

$

$

Not available

Cub Cadet 710-3116

Bolt, Hex Patch, 3/8-16 x 1.0 Lg GR5

$

$

Not available

26

Cub Cadet 741-3039

Cup, Roller Bearing
(Superseded to 941-3039)

$22.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 749-3161

Tube, Dipstick NOTE: Use Teflon Sealing Tape

$

$

Not available

27

Cub Cadet 727-3095

Blade Assy, Dipstick

$

$

Not available

29

Cub Cadet 703-0631

Bracket, Trans Mtg - LH
(Superseded to 703-0631A-0498)

$

$

Not available

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 703-0830

Bracket, Trans Mtg - RH

$

$

Not available

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-3118

Bolt, Hex Patch, 3/8-16 x 1.0 Lg GR5

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0
