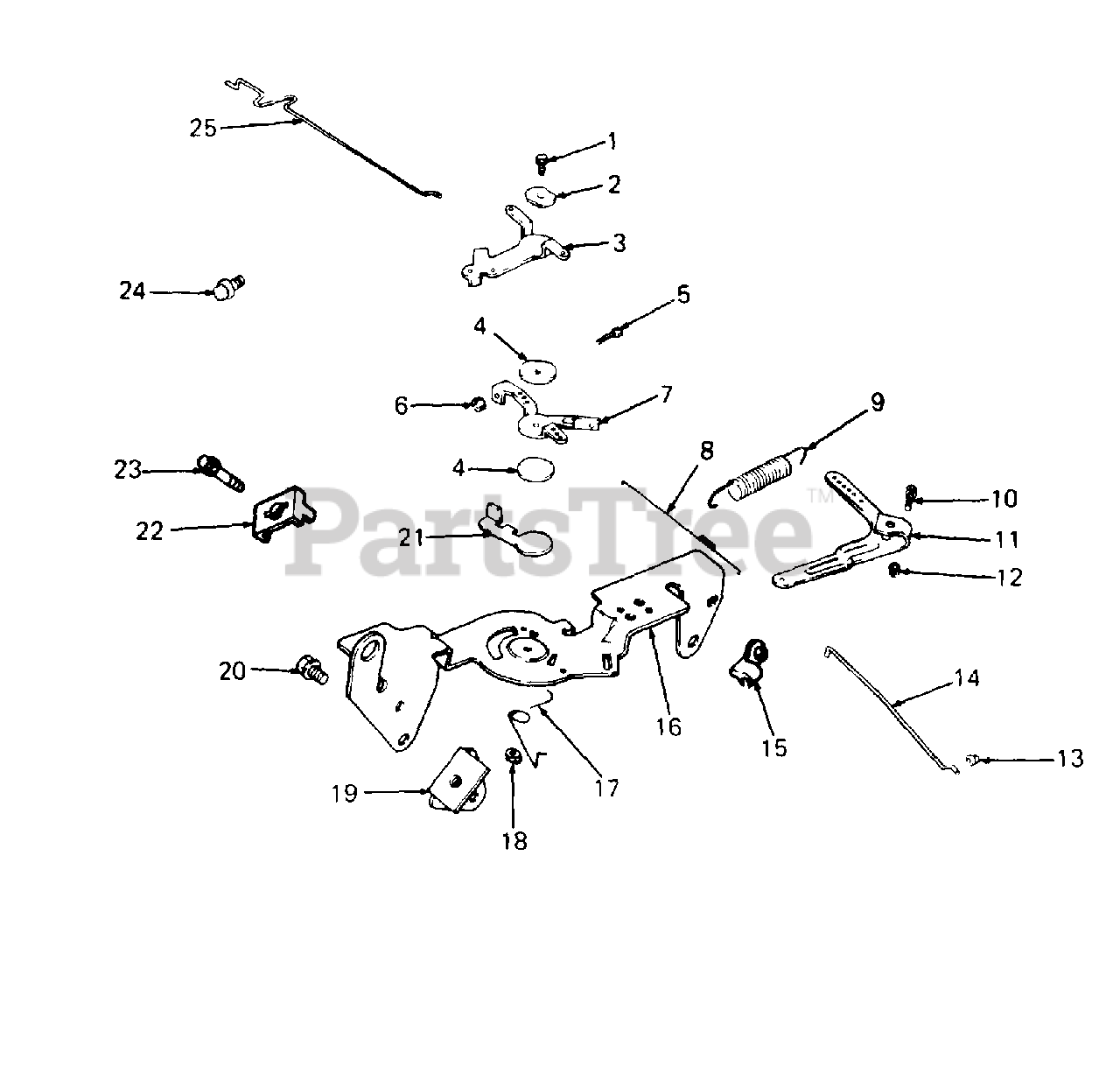

1864 (146-684-100) - Cub Cadet Garden Tractor (SN: 880001 - 899000) Engine Controls Parts Diagram

Garden Tractor

Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-SM-0545020

Screw, M5 x 0.8 x 20

$

$

Not available

2

Cub Cadet KH-41-468-03

Washer, Spring

$

$

Not available

3

Cub Cadet KH-24-090-05

Lever, Choke

$

$

Not available

$

$

Not available

5

Cub Cadet KH-M-401030

Screw, M4 x 0.7 x 27.9

$

$

Not available

6

Cub Cadet KH-M-0446030

Nut
(Superseded to KH-M-446030-S)

$2.49

$

In Stock, only 4 left!

0

7

Cub Cadet KH-24-090-03

Lever, Throttle Control

$

$

Not available

8

Cub Cadet KH-24-089-01

Spring, Linkage

Note: (Governor lever to carburetor)

$

$

Not available

9

Cub Cadet KH-24-089-14

Spring, Governor
(Superseded to KH-24-089-18)

$

$

Not available

10

Cub Cadet KH-SM-0642025

Screw, M6 x 1.0 x 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-24-090-04

Lever, Governor
(Superseded to KH-24-090-14)

$

$

Not available

12

Cub Cadet KH-SM-0641060

Nut, M6 x 1,0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-079-01

Linkage, Throttle

$

$

Not available

15

Cub Cadet KH-25-158-11

Bushing, Linkage Retaining

$

$

Not available

16

Cub Cadet KH-24-126-02

Bracket, Control
(Superseded to KH-24-126-176-S)

$

$

Not available

17

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

18

Cub Cadet KM-M-0547050

Nut, M5 x 0.8

$

$

Currently unavailable

19

Cub Cadet KH-24-126-04

Bracket, Support
(Superseded to KH-24-126-04-S)

$21.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-SM-0645016

Screw, M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 15

0

21

Cub Cadet KH-24-090-02

Lever, Throttle Actuator
(Superseded to KH-24-090-65-S)

$5.49

$

In Stock, only 1 left!

0

22

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet KN-SM-0545016

Screw, M5 x 0.8 x 16

$

$

Currently unavailable

24

Cub Cadet KH-SM-0545010

Screw, M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

25

Cub Cadet KH-24-079-02

Linkage, Choke
(Superseded to KH-24-079-21-S)

$

$

Not available
