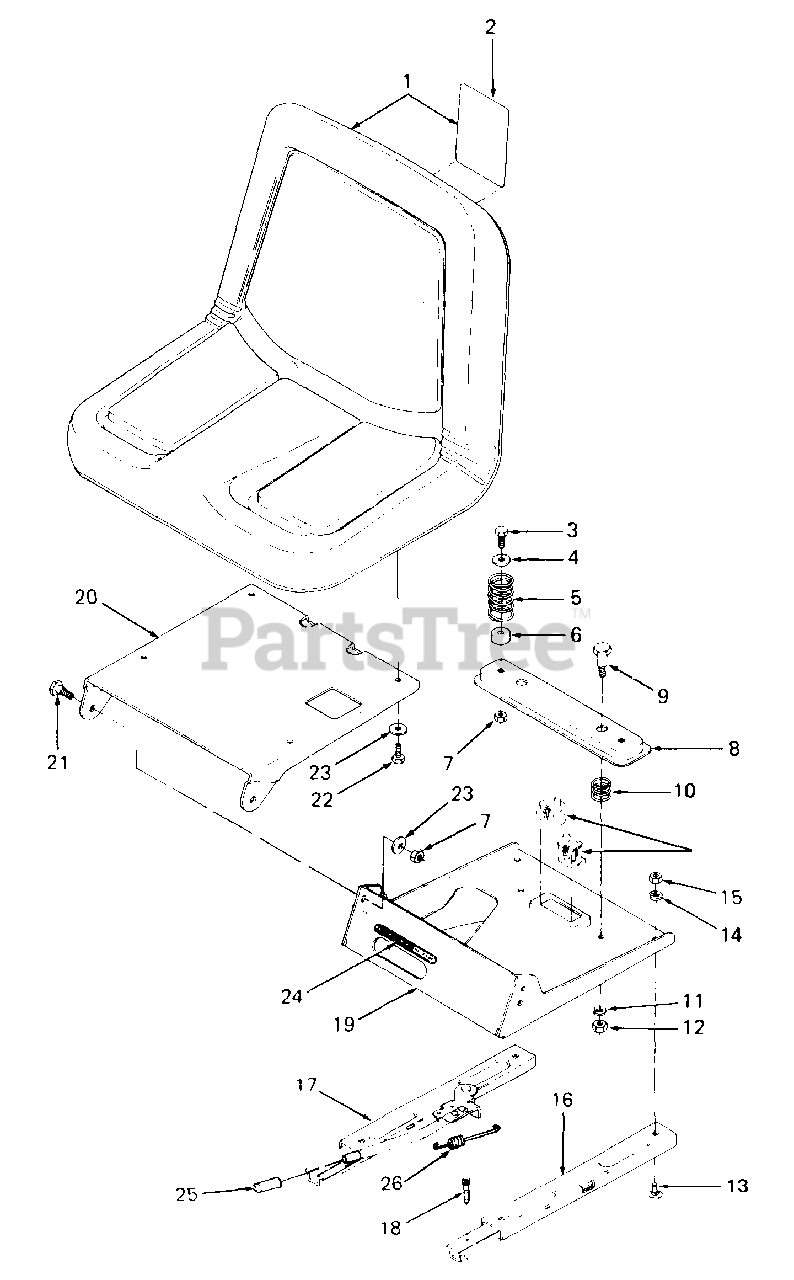

1864 (145-684-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Seat And Track Assembly Parts Diagram

Garden Tractor

Seat And Track Assembly Parts Diagram

  • Title

1

Cub Cadet 759-3348

Seat w/Graphic
(Superseded to 759-3149)

Note: (Includes Ref No. 2)(Serial no. 851, 000 & below)

$

$

Not available

Cub Cadet 757-3004

Seat
(Superseded to 759-04299)

Note: (Serial no. 851,001 & above)

$

$

Not available

Cub Cadet 777-2041

Graphic, Made in USA
(Superseded to 777D01782)

$

$

Not available

2

Cub Cadet 779-3348

Graphic, Caution

$

$

Not available

3

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 X.88 Lg GR5

$4.99

$

In Stock, only 3 left!

0

4

Cub Cadet 736-0159

Washer, Flat, .344 x .875 x .06 Thk

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 732-3069

Spring, Comp, 1.28 OD x 2.18 Lg
(Superseded to 932-3069)

$12.99

$

In Stock, Qty 14

0

6

Cub Cadet 722-0160

Bushing, .930 OD X.50 Lg

$

$

Not available

7

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-1813

Channel, Seat Spring
(Superseded to 703-1813-0498)

Variations

Cub Cadet 703-1813-0498

CHANNEL-SEAT SPRG - OLD CUB YELLOW (0498)

$

$

Not available

$

$

9

Cub Cadet 738-0145

Screw, Shoulder, .500 Dia x .840

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 732-3060

Spring, Comp, 1.00 OD X.86 Lg

$

$

Not available

11

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3215

Bolt, Sht Nk Carriage, 5/16-18 X.62 Lg

$

$

Not available

14

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 703-1844

Slide, Seat - LH

$

$

Not available

17

Cub Cadet 703-1843

Adjuster, Manual Seat - RH

Note: (Includes Ref No. 25 & 26)

$

$

Not available

18

Cub Cadet 710-3216

Screw, Socket Hd Cap, 5/16-18 x 1.00 Lg

$

$

Not available

19

Cub Cadet 703-1811

Bracket, Seat Pivot Support

Variations

Cub Cadet 703-1811-0498

BRACKET-SEAT SUPPORT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

20

Cub Cadet 703-1812

Bracket, Seat Pivot

Variations

Cub Cadet 703-1812-0498

BRACKET-SEAT PIVOT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

21

Cub Cadet 738-0140

Screw, Shoulder, .437 Dia x .180

$5.99

$

In Stock, Qty 15

0

22

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X.75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0242

Washer, Bell, .345 X.88 X.060 Thk

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 779-3524

Label, Seat Adjustment

$

$

Not available

25

Cub Cadet 759-3603

Cover, Handle

$

$

Not available

26

Cub Cadet 759-3604

Spring

$

$

Currently unavailable
