1864 (145-684-100) - Cub Cadet Garden Tractor (SN: 836001 - 880000) Hydraulic Lift Valve Parts Diagram
Garden Tractor

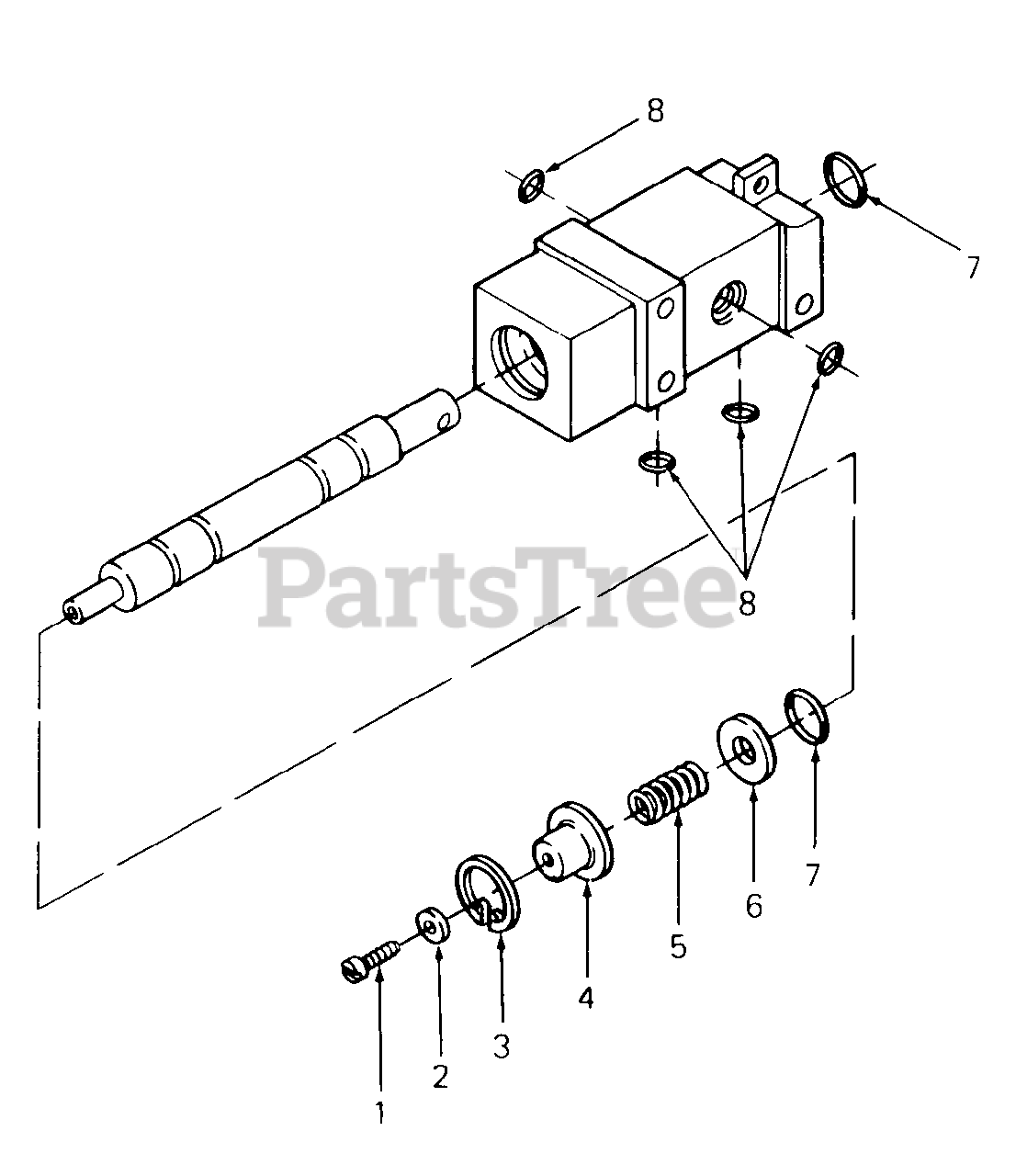

Hydraulic Lift Valve Parts Diagram
Cub Cadet 717-3308A
Hydraulic Valve Assy
$
$
Not available
Cub Cadet 759-3512
Kit, Valve Rebuild
Note: [Includes Ref No. 1,2 3, 4, 5, 6, 7 (Qty 3) & 8 (Qty 6)]
$47.99
$
Usually ships in 3-6 days
Cub Cadet 710-0192
Screw, Truss Mach, #10-24 X .38 Lg
$3.99
$
In Stock, Qty 12
Cub Cadet 736-0400
Washer, Flat, .218 X .62 X .063 Thk
$5.49
$
In Stock, Qty 11
Cub Cadet 716-3016
Ring, Int Snap, 1.023 Dia
$
$
Currently unavailable
Cub Cadet 711-3288
Cup, Centering
$
$
Currently unavailable
Cub Cadet 732-3059
Spring, Comp, .50 OD X.76 Lg
$2.99
$
In Stock, Qty 20+
$6.99
$
Usually ships in 3-6 days
Cub Cadet 721-3022
O-Ring,.424 X.103 Dia
$7.49
$
Usually ships in 3-6 days
$3.99
$
In Stock, Qty 20+
